Ultrasonic Desktop Fetal Doppler 8 Series for Daily Fetal Heart Monitoring in Clinics and Hospitals
Quick Info.
- SKU NO.: UMY-US-009
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Box
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 3200 Sets/Year

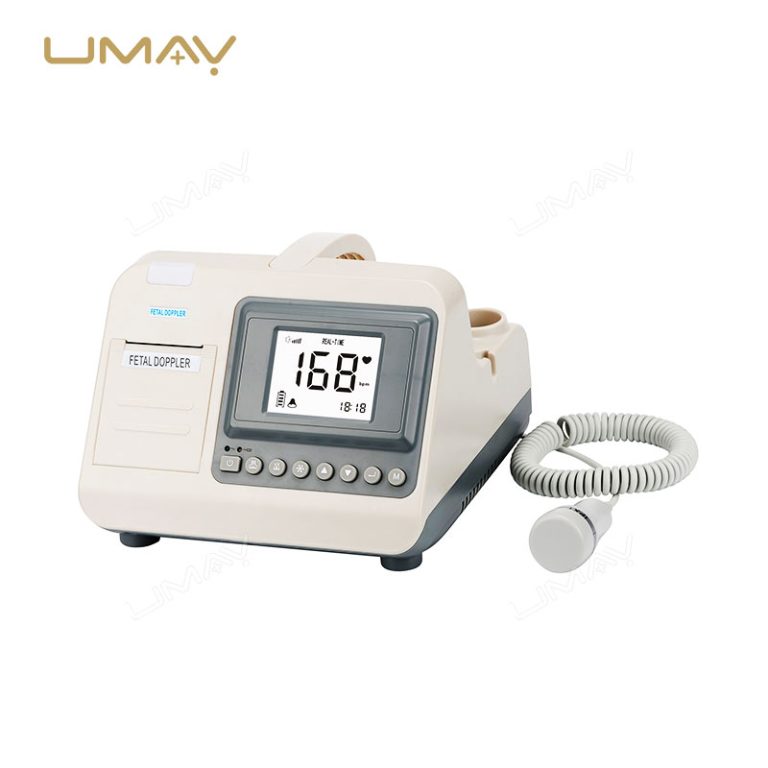

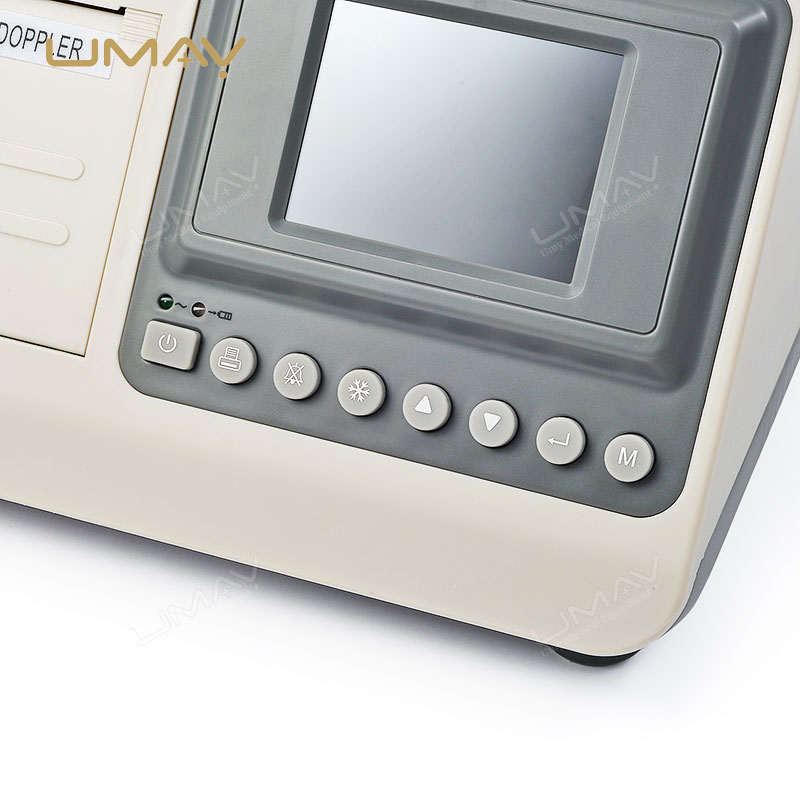

The 8 series desktop fetal Doppler is designed for daily fetal heart rate monitoring, providing accurate and real time results for prenatal examinations at home, clinics, or hospitals. Featuring multiple probes of 2 MHz, 2.5 MHz, and 3 MHz, it ensures optimal sound penetration for early to late pregnancy stages. The 3.5 inch LCD screen with audio and visual alarms delivers clear display and sound quality. Equipped with USB connectivity, it enables data storage, analysis, and report printing through PC software. Its compact design, rechargeable battery, and special antiskid base ensure stability and portability for continuous monitoring. For healthcare facilities requiring advanced maternal and fetal assessment, the Color Doppler Ultrasound Scanner Hot Selling 3 in 1 with Phased Array, Linear, and Convex Probes is a perfect complement.
The Specific Parameters
ITEMS | PARAMETERS |
---|---|
Technical Specifications | |
Ultrasound Frequency | 2MHz / 2.5MHz / 3MHz |
Ultrasound Intensity | <10mW/cm² |
Power Supply | DC Ni-Mh rechargeable battery, AC 220/110V, 50/60Hz (for D and C) |
Display | 65mm × 50mm LCD |
FHR Resolution | 1 bpm |
FHR Accuracy | ±2 bpm |
Power Consumption | <12W |
FHR Measuring Range | 50–230 bpm |
Physical Specifications | |
Dimension | 220mm × 220mm × 140mm |
Weight | 2.1 kg |
Software Capabilities | |
PC Software Functions | Data transmit, edit, store, analyze, print |

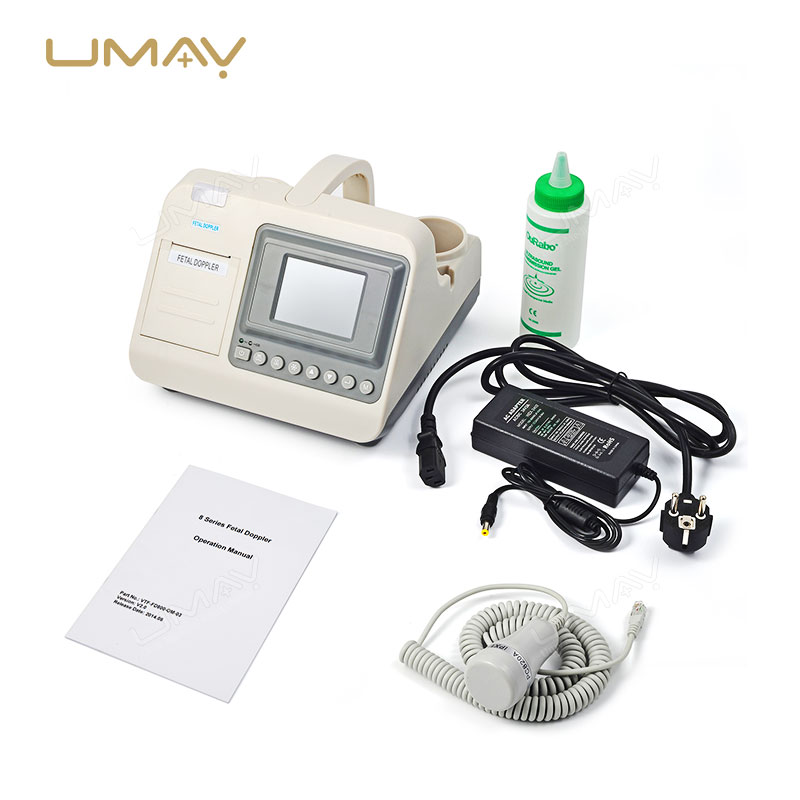

Standard Accessories | |

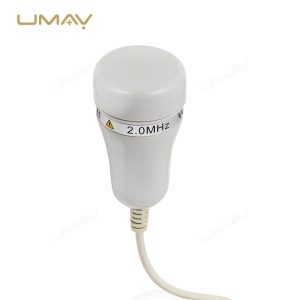

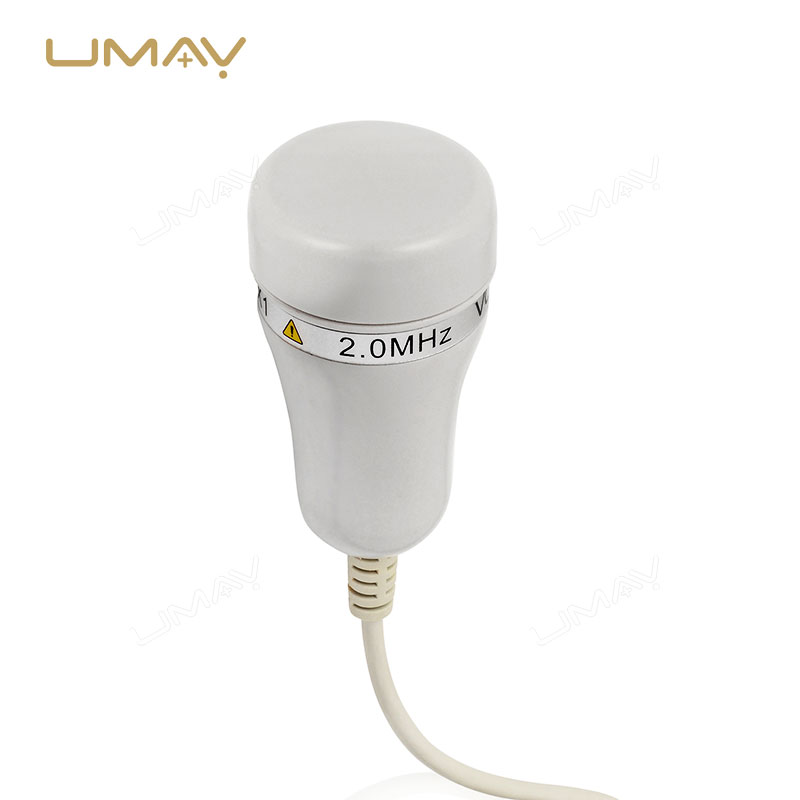

Probe | 2MHz Probe |
Adapter | Included |
Gel | Included |
Optional Accessories | |
Probe | 2.5MHz / 3MHz Probe |
PC Software | Included with optional functions |
Carry Case | Included as optional |
Trolley | Included as optional |
Print Function | Available as optional |
