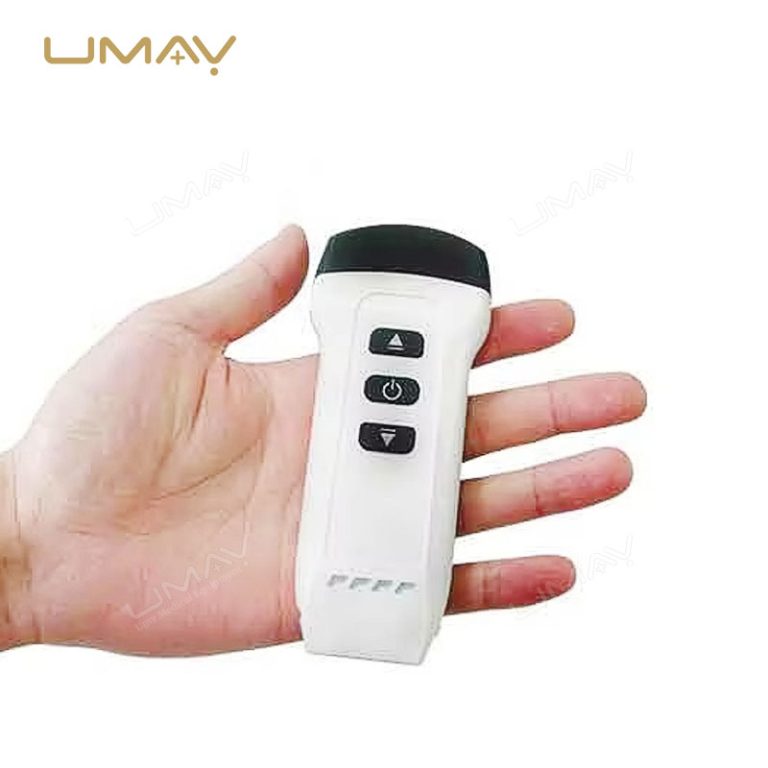

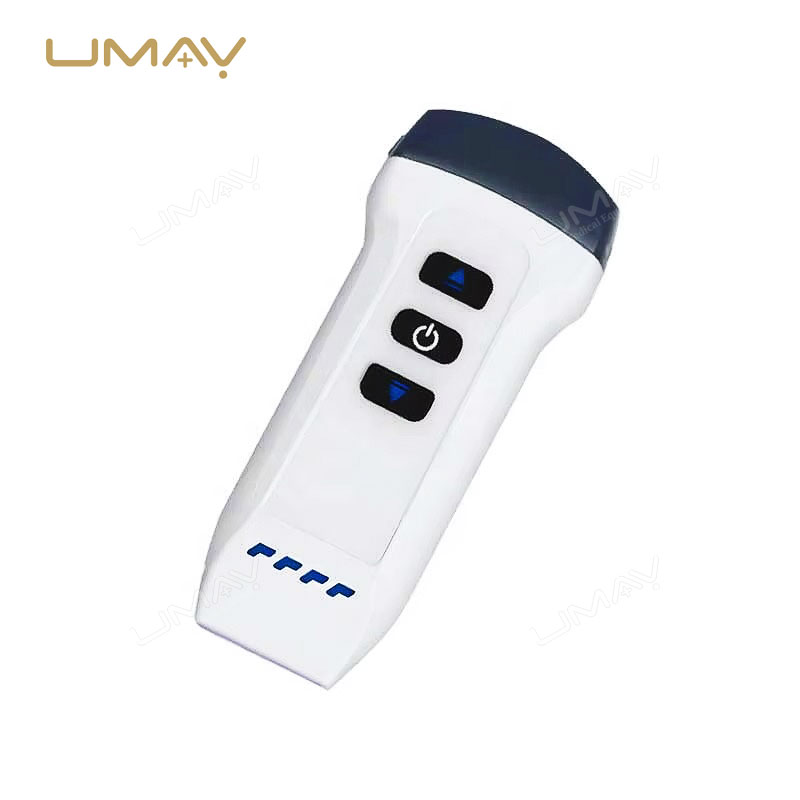

Portable WiFi 128-Element Doppler Ultrasound Probe for Laptops Widely Used in Diagnostics

SKU: UMY-US-115
Brand: Umy
MOQ: 1
Origin: China

OR

Quick Info.

This portable WiFi-enabled 128-element Doppler ultrasound probe is widely used for diverse diagnostic applications, including vascular, abdominal, and musculoskeletal imaging. Designed for compatibility with laptops, it delivers high-resolution imaging and reliable blood flow analysis. Its compact and wireless design ensures mobility, making it ideal for use in clinics, hospitals, and field settings. This advanced probe combines precision and convenience, catering to the needs of healthcare professionals in various environments. For similar portable options, explore our handheld veterinary ultrasound diagnostic instrument.

The Specific Parameters

Technical Specifications
Color DopplerYes
Probe TypeDual probe (convex + linear)
Probe Frequency3.2MHz / 7.5MHz (adjustable)
Connection MethodWi-Fi connected to mobile phone/computer (15 meters)
Display ModesB, B/M, CFM, PDI, CFM, PW
Depth Adjustment16 levels adjustable
Puncture Assist ModesIn-Plane, Out-Plane
Video Playback100 / 200 / 500 / 1000 frames
Image Grayscale256 levels
Parameter ResetOne-click parameter recovery
Compatibility
iOS CompatibilityVersion 12.3 or above
Android CompatibilityVersion 8.1.0 or above
Physical Specifications
Host Size12.3 × 5.3 × 2.2 cm
Host Weight120g
Measurement Functions
Supported MetricsPregnancy test, backfat thickness, distance, circumference, area, volume, angle, heart rate
Scope of ApplicationUltrasound exams in pet hospitals, clinics, zoos, breeding/breeding bases, and scientific research units
Power
Battery Capacity1350mAh (continuous operation 2 hours)
Charging MethodWireless charging
Power Gain (PW Gain)0–100
Gain RangeG30~G105
