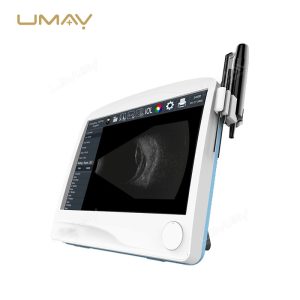

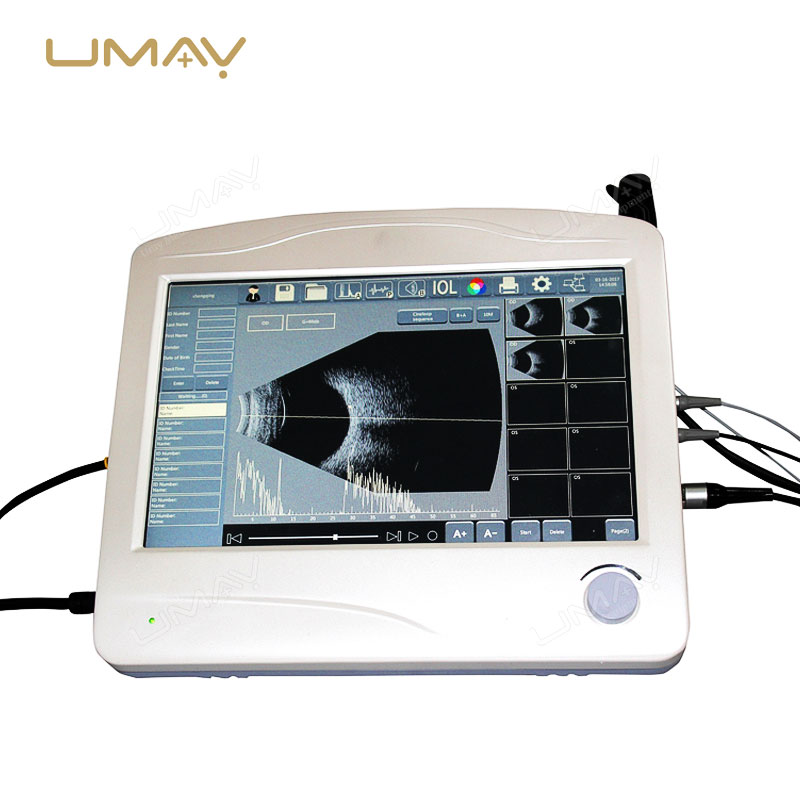

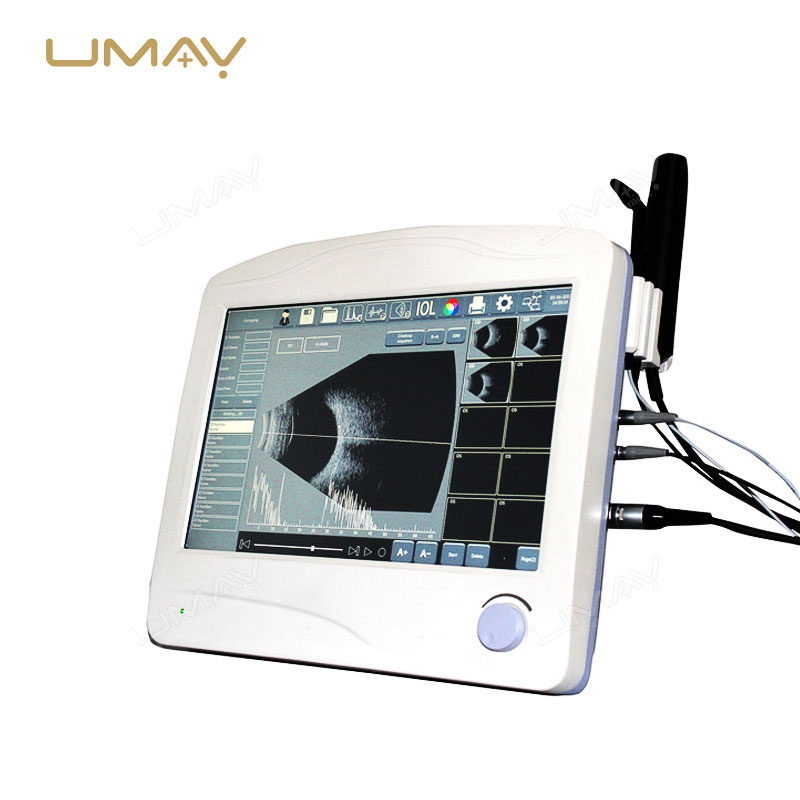

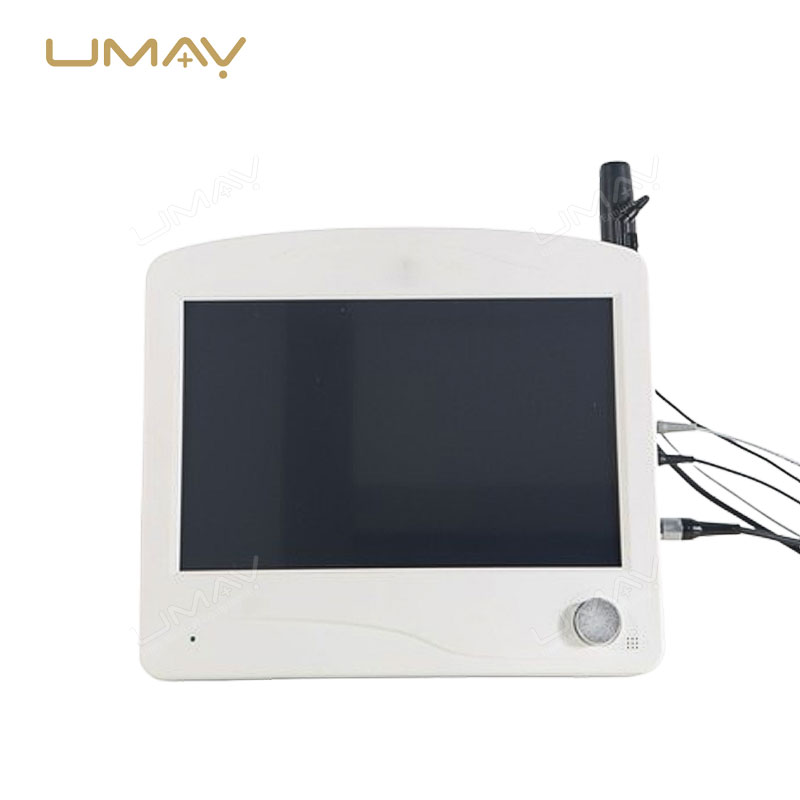

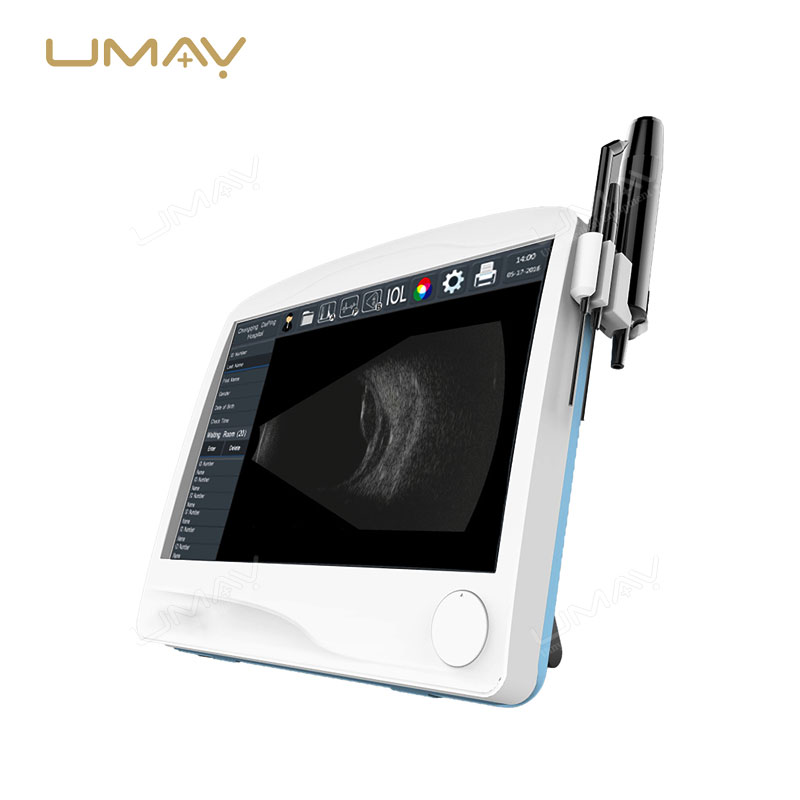

Ophthalmic Ultrasound A/B Scanner with Built-In Computer System and 12.1-Inch Touch Screen

SKU: UMY-US-092
Brand: Umy
MOQ: 1
Origin: China

OR

Quick Info.

This ophthalmic ultrasound A/B scanner is designed for precise diagnostics in ophthalmology, featuring a built-in computer system and a 12.1-inch touch screen for enhanced usability. It supports detailed imaging of ocular structures, enabling accurate assessments of conditions such as cataracts, retinal detachments, and intraocular tumors. The compact design ensures convenience for both clinic and surgical use, while the advanced imaging technology delivers clear and reliable results. This scanner is an essential tool for eye care professionals seeking efficiency and accuracy in their diagnostic workflows.

The Specific Parameters

ITEMSPARAMETERS
B-Scan
Frequency10MHz
Scan ModeMechanical Sector Scanning
Gray Levels256
Adjustable Gain20–105dB
Depth 60mm
Angle of Exploration53°
Time Gain Control (TGC)0–30dB
Image Freezing20 pcs
ResolutionAxial 0.2 mm, Lateral 0.4 mm
Display ModeB, B+A
Report PrintOutput via Video Print
Playback150-frame playback and screenshot support
20M Ultrasound
Frequency20MHz
ResolutionAxial 0.1 mm, Lateral 0.2 mm
Depth 20mm
Angle of Exploration53°
A-Scan
Frequency10MHz
Measurement Range0–60mm
Accuracy 0.04mm
Default Eye Mode6 standard modes, 3 customized modes
IOL Calculation6 methods with comparative calculations
Calculation MethodStandard Deviation
Pachymeter
Frequency20MHz
Accuracy 0.01mm
Depth Range0.3–1.5mm
Output ModeVideo Print
Other Parameters
ComputerBuilt-in system with 12.1-inch touch screen display
Picture ProcessingBrightness, Contrast, Image Playback, Pseudo-color, Image Measurement, Image Remark
Printer CompatibilitySony Duplicator, Computer with Graphic Workstation
