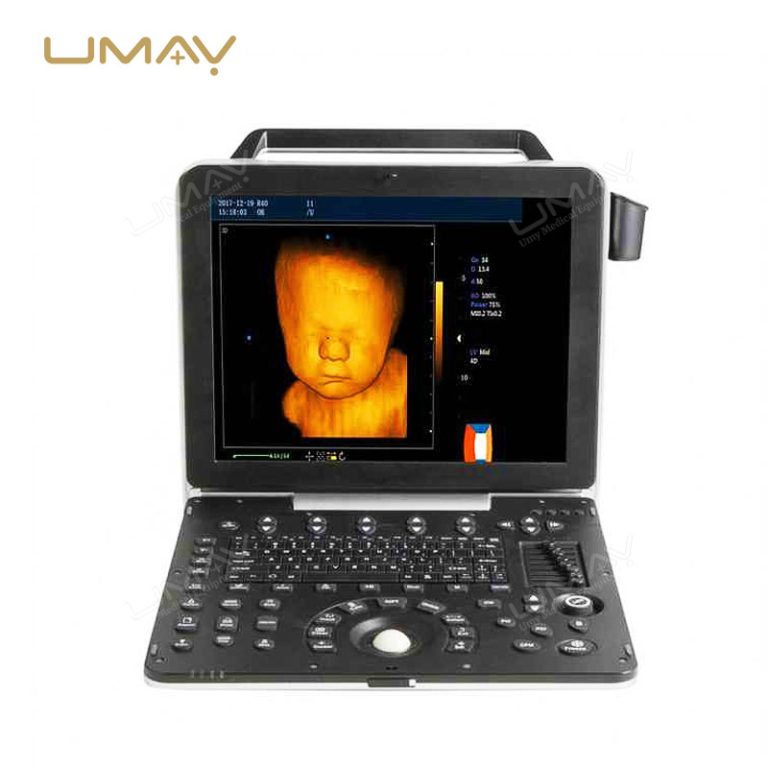

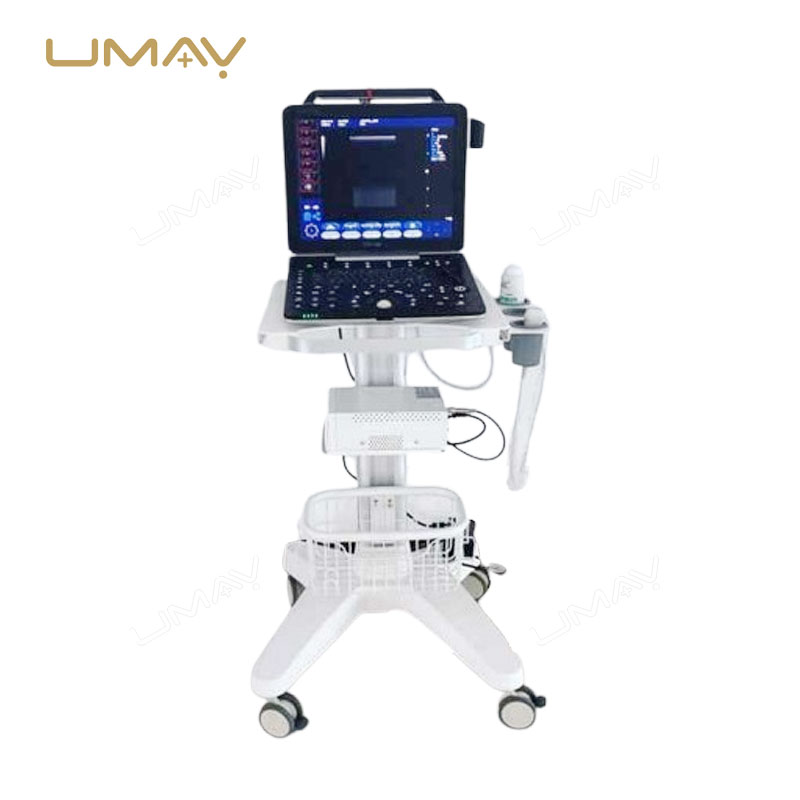

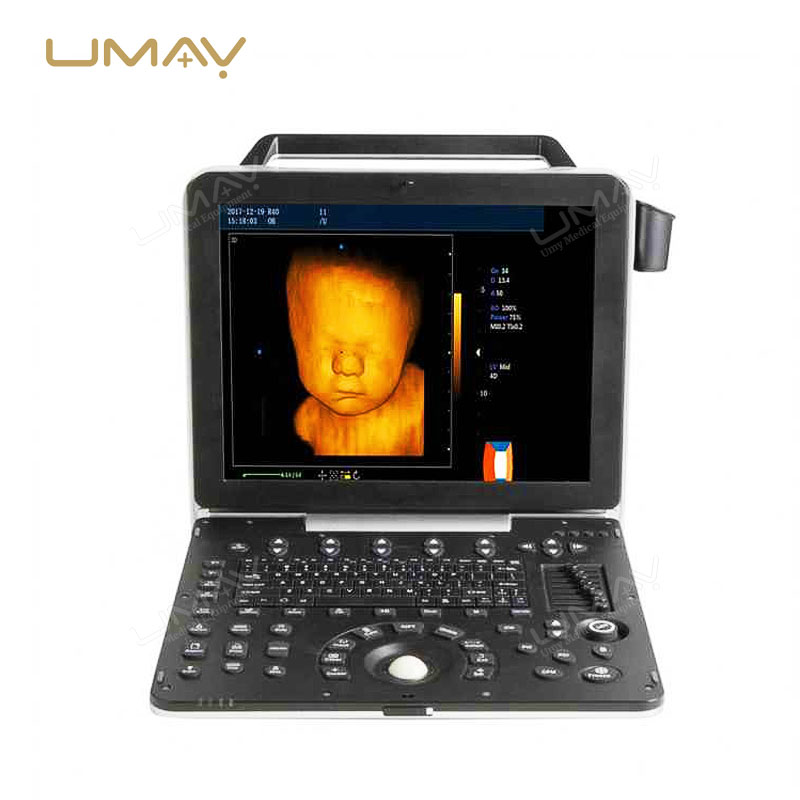

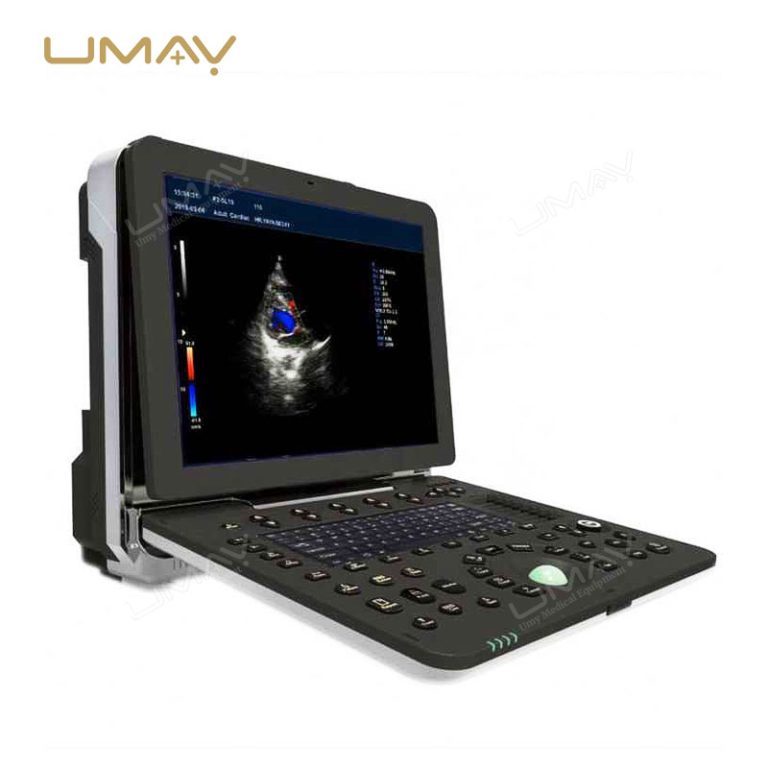

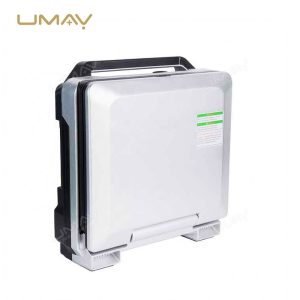

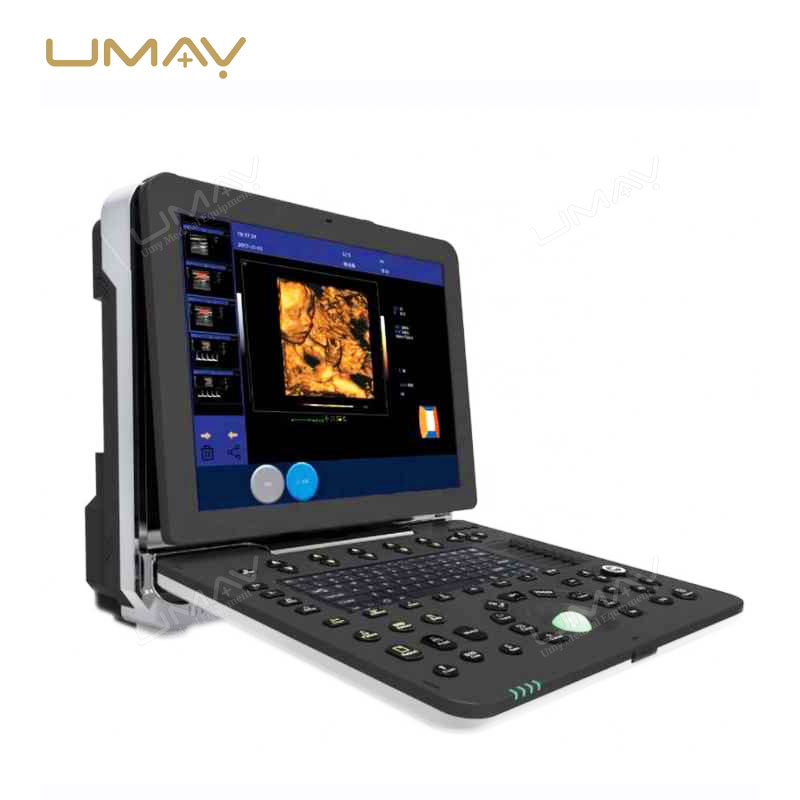

Go-To Option Portable Color Doppler Ultrasound Sonography Machine
SKU: UMY-US-108
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-US-108
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Box
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 3200 Sets/Year
This portable color Doppler ultrasound machine is the go-to option for precise and versatile sonography needs. Designed for portability and efficiency, it is suitable for a range of diagnostic applications, including abdominal, vascular, and musculoskeletal imaging. Its advanced Doppler technology ensures detailed visualization of blood flow and tissue structures, making it ideal for both clinical and hospital use. User-friendly and compact, it delivers high-quality imaging wherever needed.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Purpose and Applications | Abdominal, OB&GYN, Cardiac, Urinary, Small Parts, Superficial, Vascular, Pediatrics (neonatal), MSK, Physical examination and other aspects of examination and diagnosis |
| Display | |
| Standard Monitor Size | 15 inch, high-definition medical grade LCD display |
| Monitor Resolution | 1920×1080 |
| Display Adjustment | 0°–30° adjustable |
| Languages | |
| Support System Languages | Chinese, English, French, Russian, Spanish |
| Interface Languages | CN/EN/FR/SP/RU |
| System & Functions | |
| Operating System | Windows 8 operating system |
| Ultrasonic Modes | Spectrum pulse Doppler, Direction energy Doppler, 2B/4B mode |
| Imaging Technologies | Real time three synchronization, Space composite imaging, Organized harmonic imaging |
| System Upgradeability | System is upgradable |
| Presetting | Custom presets for optimized images, reduced adjustments during operation |
| Physical Clipboard | Save and directly view or delete images |
| Connections | One active probe connector |
| Additional Imaging Modes | Support Trapezoidal imaging, Support real-time 3D function |
| 3D Mode | |
| Fast Angle | Supports 0°, 90°, 180°, 270° rotation of the 3D window image |
| Display Model | One image, two images, four images |
| Reconstruction Modes | RealSkin, Surface, Max, Min, XRay |
| Pseudo Color | 0–7 levels adjustable |
| Image Magnification | 5 levels |
| Contrast | 0%–100% |
| Threshold | 0%–100% |
| Smooth | 0–3 adjustable |
| Image Rotation | X/Y/Z Axis |
| Brightness | 0%–100% |
| 4D Imaging Mode (5D/HDLIVE) | |
| Fast Angle | Supports 0°, 90°, 180°, 270° rotation of the 3D window image |
| Display Model | One image, two images, four images |
| Reconstruction Modes | RealSkin, Surface, Max, Min, XRay |
| Pseudo Color | 0–7 levels adjustable |
| Image Magnification | 5 levels |
| Contrast | 0%–100% |
| Threshold | 0%–100% |
| Smooth | 0–3 adjustable |
| Image Rotation | X/Y/Z Axis |
| Line Density | 2 levels adjustable |
| Interfaces | |

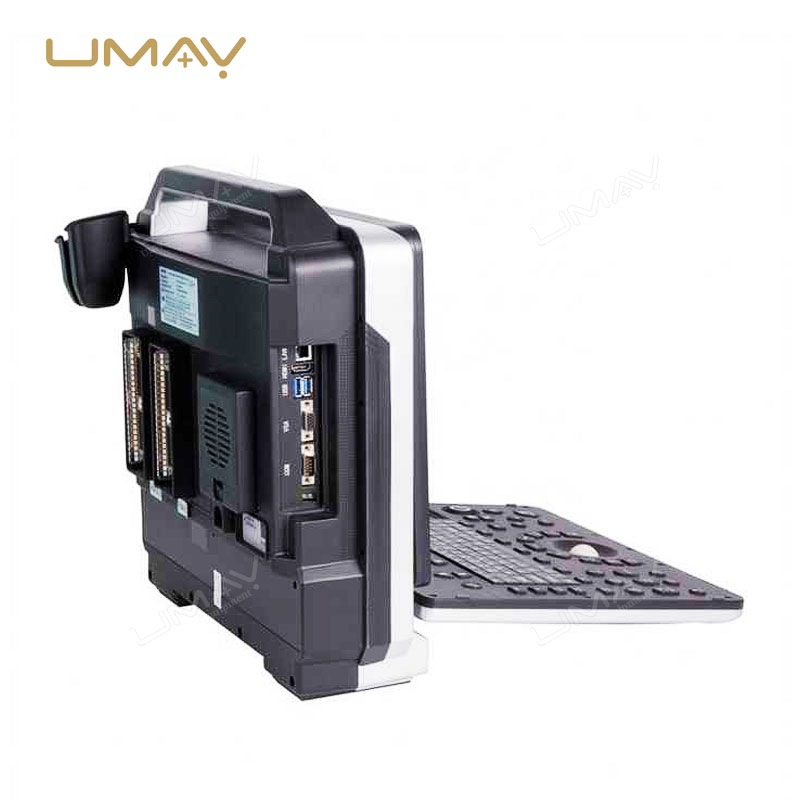

| Probe Connectors | 2 |
| USB Ports | 2 |
| Audio Port | 1 |
| LAN Ports | 2 |
| HDMI Port | 1 |
| DP Port | 1 |
