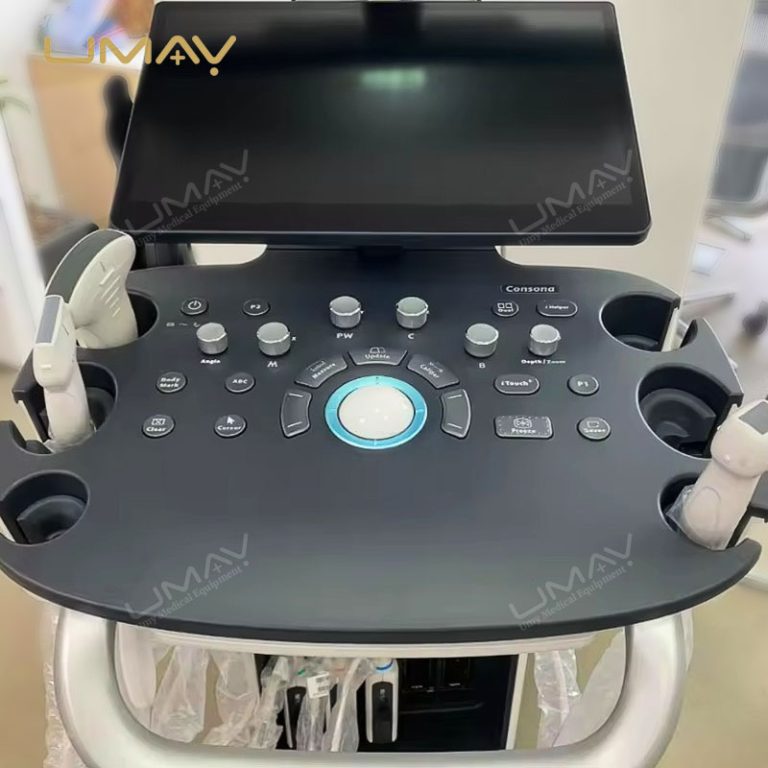

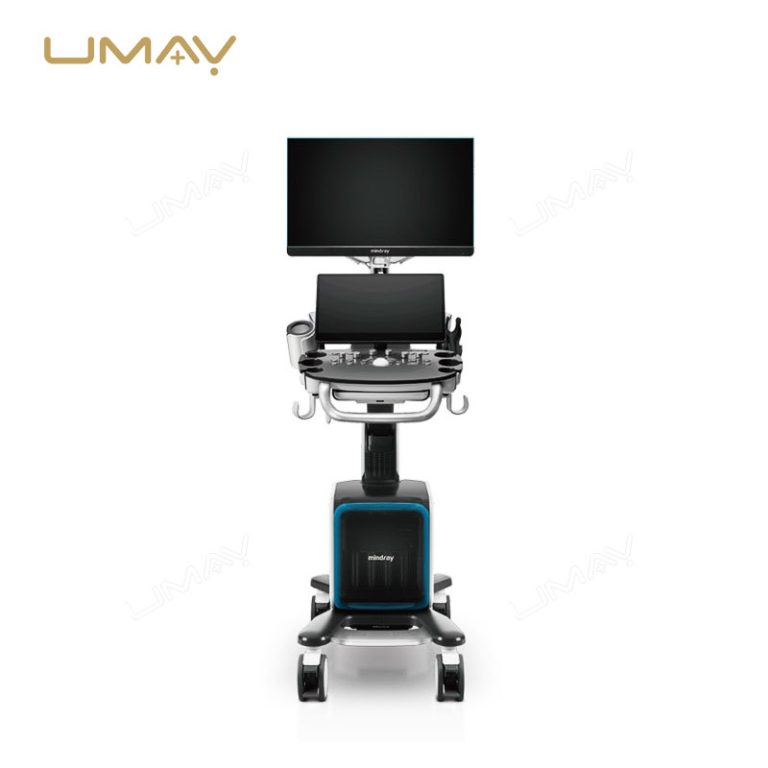

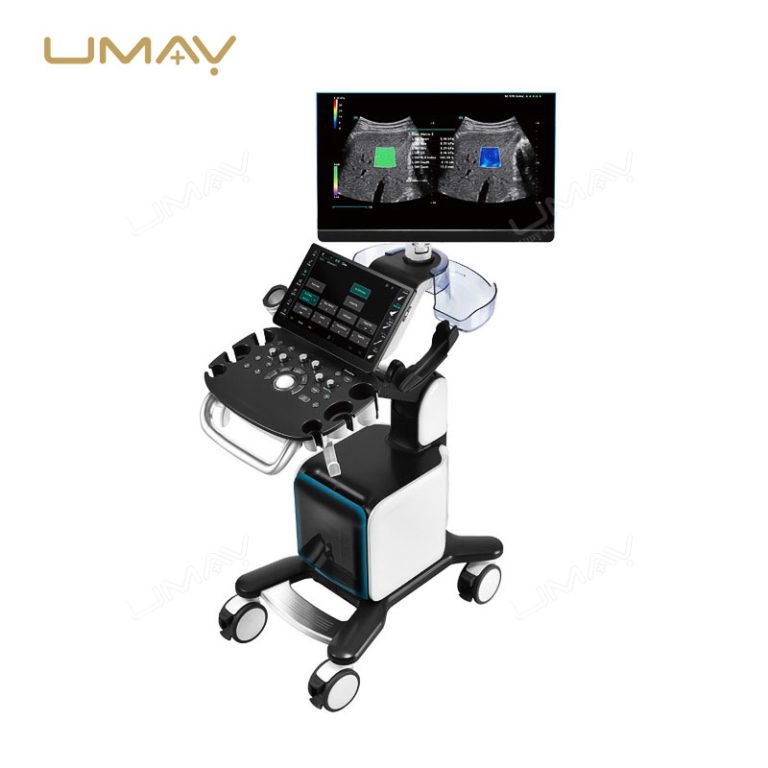

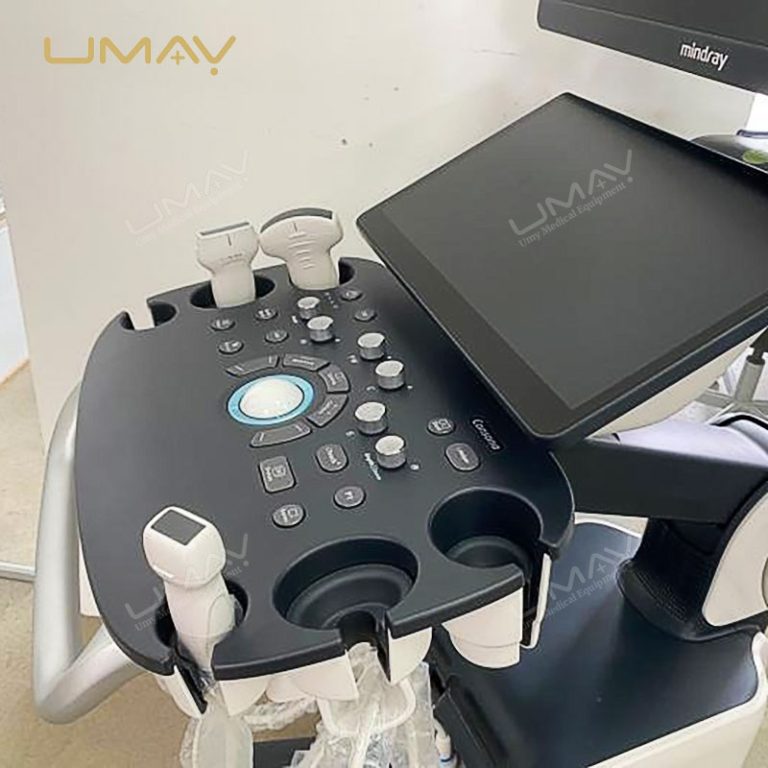

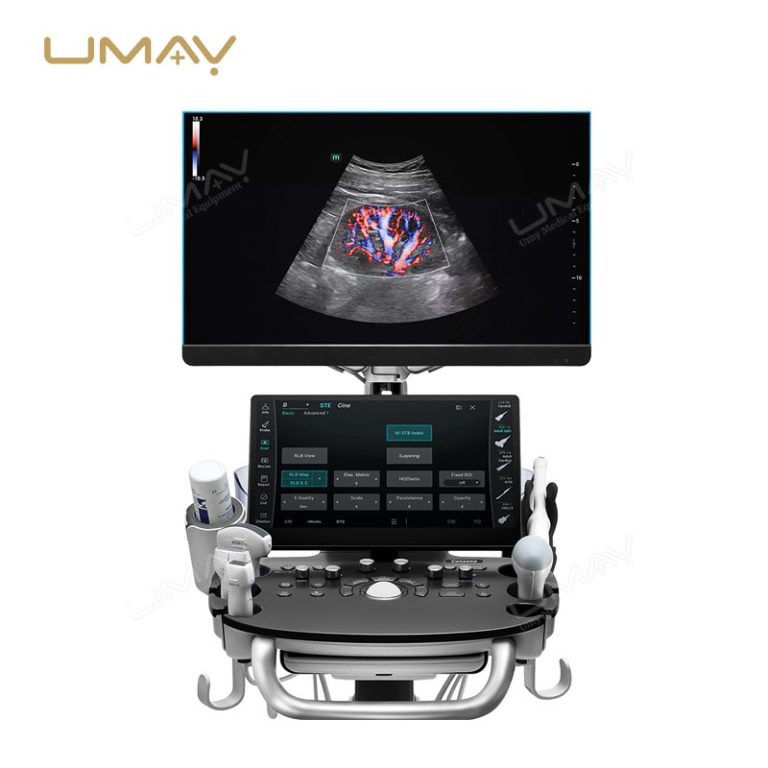

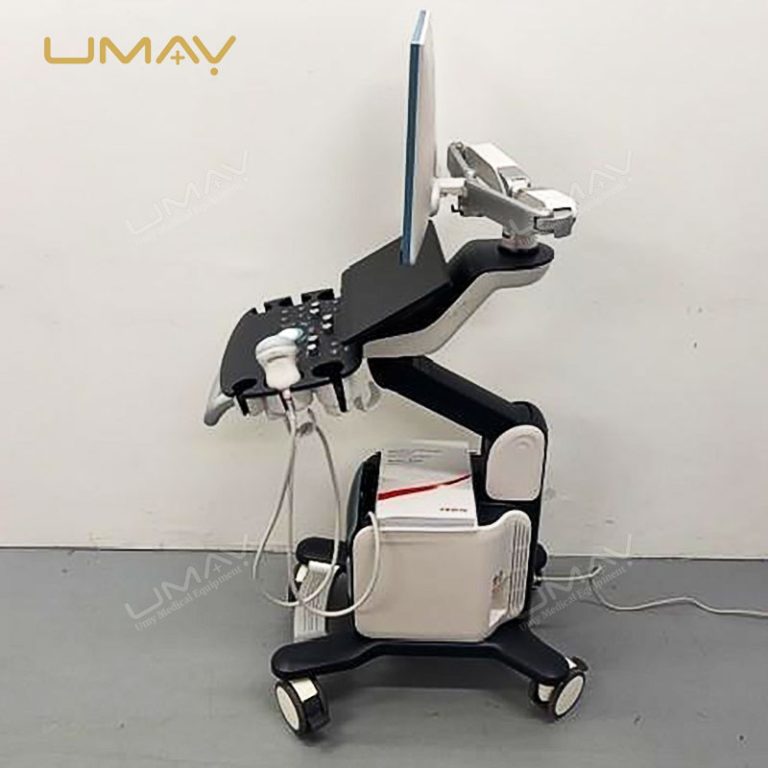

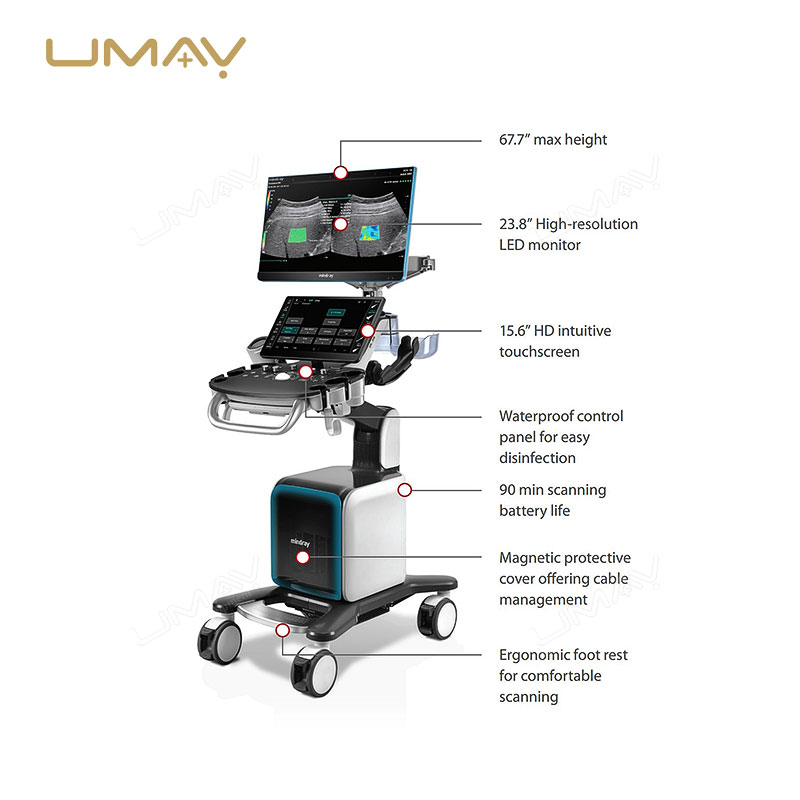

Consona N Series N8 N9 Color Doppler Ultrasound Systems for Hospital Imaging

SKU: UMY-US-116

Brand: Umy

MOQ: 1

Origin: China

Quick Info.

The Consona N Series delivers a powerful blend of imaging precision and operational flexibility, meeting clinical demands in cardiology, OB/GYN, vascular, and general diagnostics. With high-resolution color Doppler, adaptive signal processing, and user-friendly workflow tools, this system enhances diagnostic accuracy in both routine and complex exams. Its modular scalability supports long-term investment planning for hospitals. For a portable alternative equipped with phased array, linear, and convex probes, explore our 3-in-1 Color Doppler Scanner at this page.

The Specific Parameters

ITEMS	PARAMETERS

Main Technical Indexes – Gray Scale Imaging

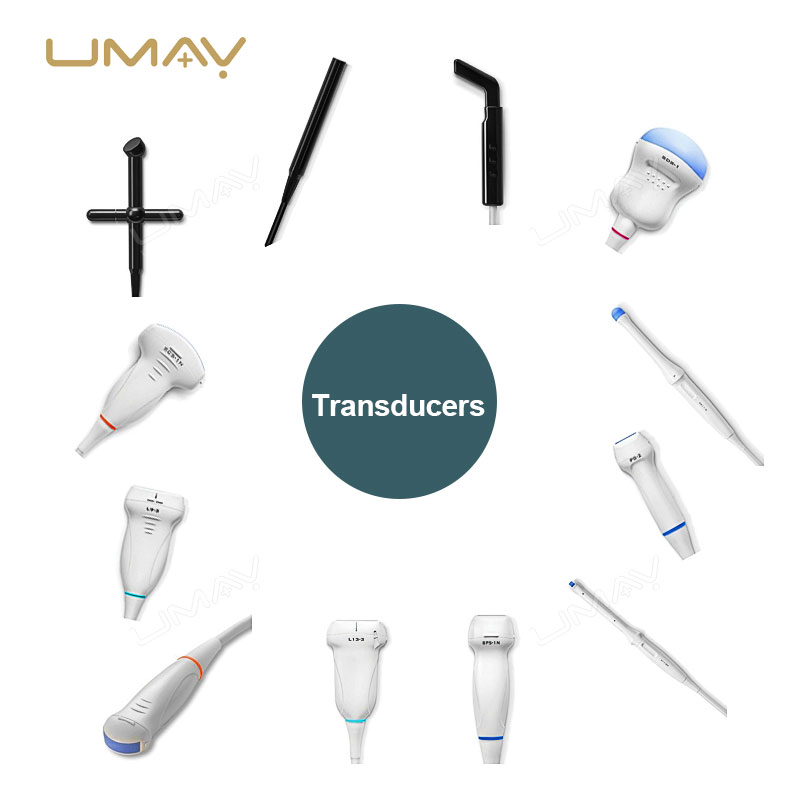

Probes Supported	Micro-convex, Convex, Cavity, Linear
Nominal Frequency	3.5 MHz, 6.5 MHz, 7.5 MHz
Scan Depth	40 – 160 mm (varies by probe)
Lateral Resolution	≤ 2–4 mm
Axial Resolution	≤ 1–3 mm
Blind Zone	≤ 3–7 mm
Transverse Geometry Precision	≤ 10–20%
Longitudinal Geometry Accuracy	≤ 5–10%
Slice Thickness	≤ 5 mm
Area Measurement Deviation	≤ ±20%
M-Mode Time Display Error	≤ ±10%

Main Technical Indexes – Color Doppler Imaging
Color Flow Depth	≥ 40–100 mm
Doppler Spectrum Depth	≥ 40–100 mm
Blood Flow Speed Reading Error	≤ ±15%

Physical Specifications
Overall Dimensions	378 mm × 350 mm × 56 mm
Net Weight	Approx. 4 kg
Package Size	445 mm × 185 mm × 435 mm
Gross Weight	6.2 kg
Aluminum Box Gross Weight	9 kg
Product Lifespan	6 years (excluding battery)

Imaging Modes
Mode Types	B, B+B, 4B, B+M, M
Color Modes	CFM, B+CFM, B+CFM+PW, PDI, B+PDI, PW

Power
Power Supply Input Voltage	AC 100V–240V
Frequency	50Hz/60Hz
Output Voltage	19V ±1V
Power Consumption	50VA
