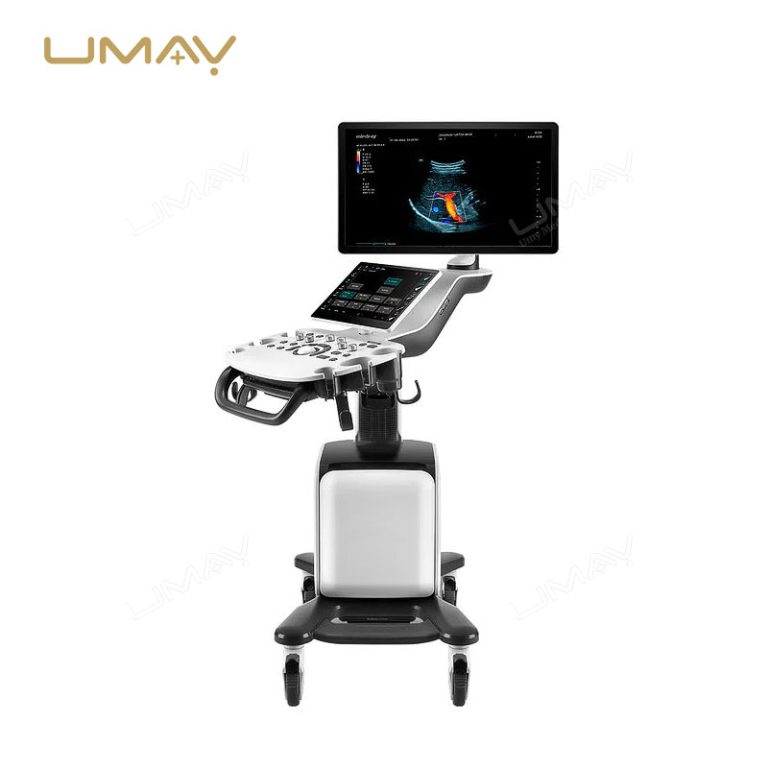

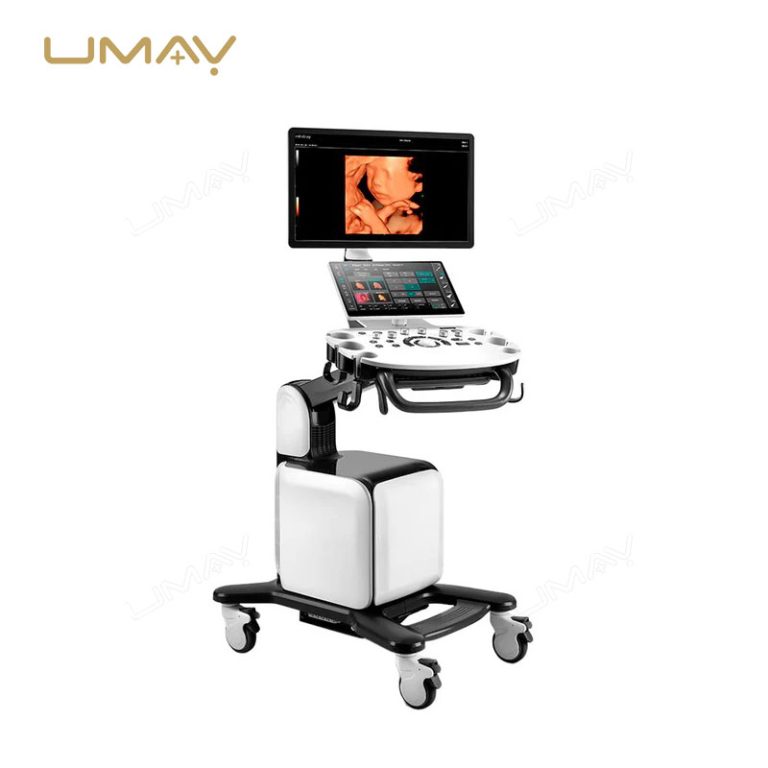

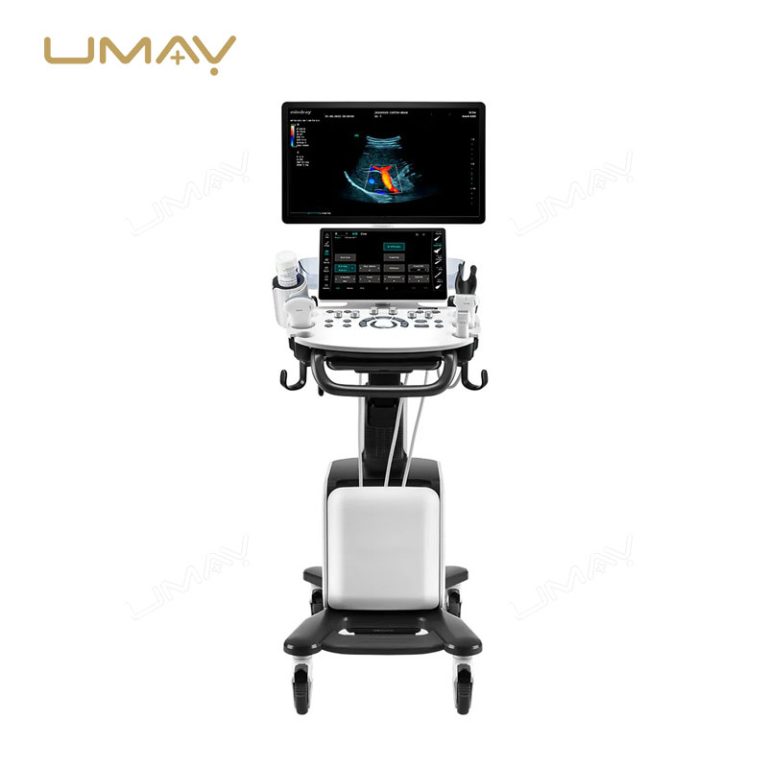

Consona N Series Diagnostic Ultrasound System N6 N7 with ZST Plus Imaging Platform
Quick Info.
- SKU NO.: UMY-US-125
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Box
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 3000 Sets/Year
The Consona N Series diagnostic ultrasound system combines next-gen ZST Plus technology with ComboWave transducers for premium imaging sensitivity and clarity. This model supports a wide range of scanning modes including B, Color, PW, Power, and M, and excels in obstetrics, gynecology, vascular, and musculoskeletal applications. Designed with a 21.5-inch LED monitor, height-adjustable control panel, and 1 TB storage, it maximizes workflow efficiency in high-demand clinical environments. Equipped with advanced tools like UWN Contrast Imaging and Smart Face, it meets the needs of fetal, cardiac, and abdominal diagnostics. Its three active transducer sockets and 1.5-hour battery operation offer unmatched flexibility. For highly portable alternatives, explore our laptop-based ultrasound machine with superior image quality.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| System Overview | |
| Application | Abdomen, Obstetrics, Gynecology, Cardiology, Small Parts, Urology, Vascular, Pediatrics, Emergency (EM), Others |

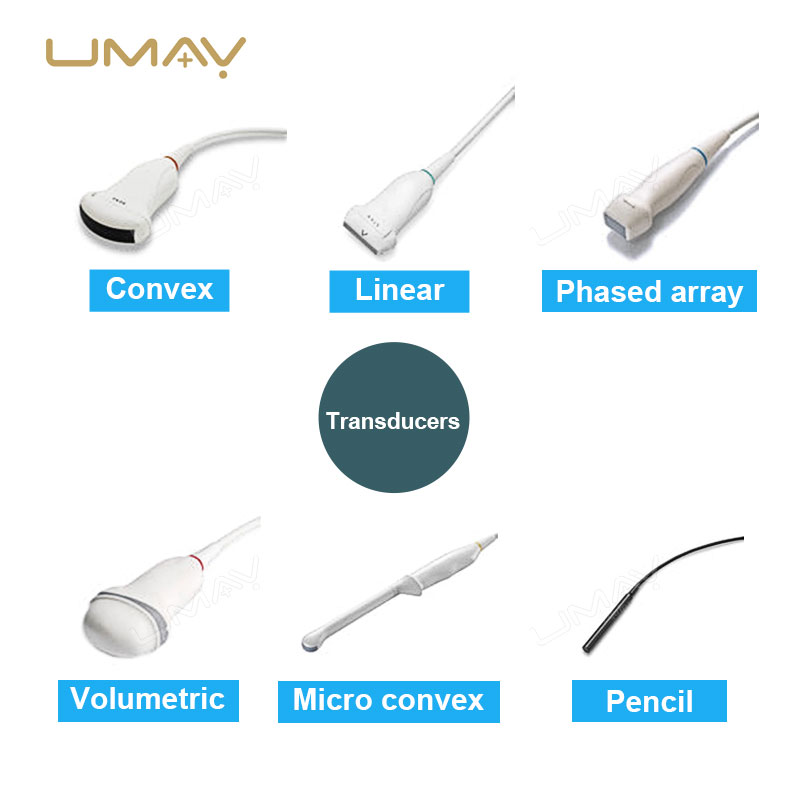

| Transducer Types | Curved array transducer, Linear array transducer, Phased array transducer |
| Imaging Modes | B-Mode, Tissue Harmonic and PSH (Phase Shift Harmonic Imaging), M-Mode/Color M-Mode, Free Xros M (Anatomical M-mode), Free Xros CM (Curved Anatomical M-mode), Color Doppler Imaging, Power Doppler Imaging/Directional PDI, Pulsed Wave Doppler, Continuous Wave Doppler, TDI, Smart 3D (Freehand 3D), iScape View (Panoramic Imaging), Stress Echo |
| Standard Configuration | |
| Main Unit | Included |
| System Software | Included |

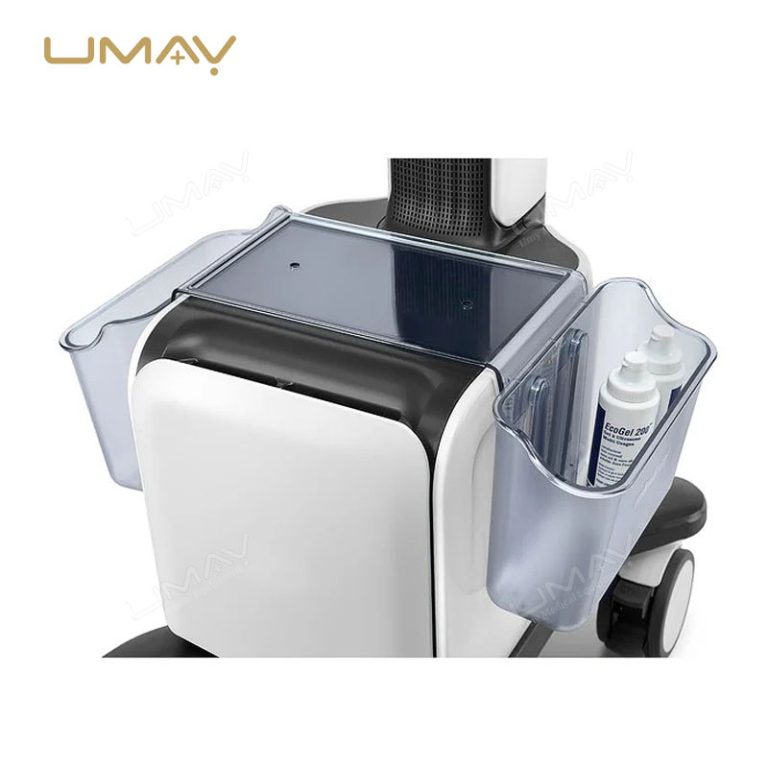

| Accessories | Operator’s manuals, Cables, Dust-proof cover, Encircling storage bin, Probe holders, Intra-cavity probe holder (with screws) |
| Key Features | |

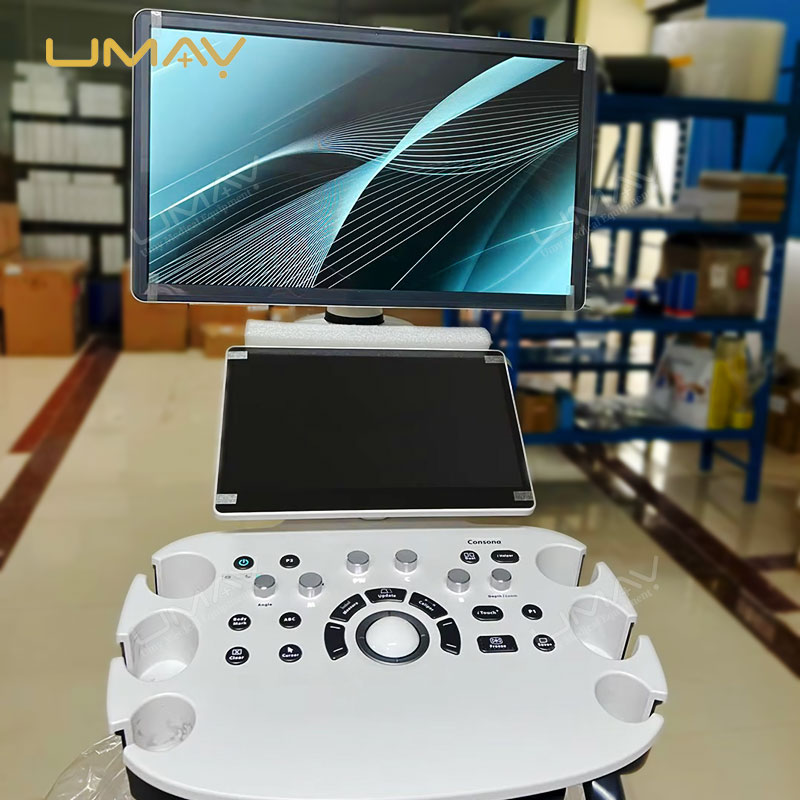

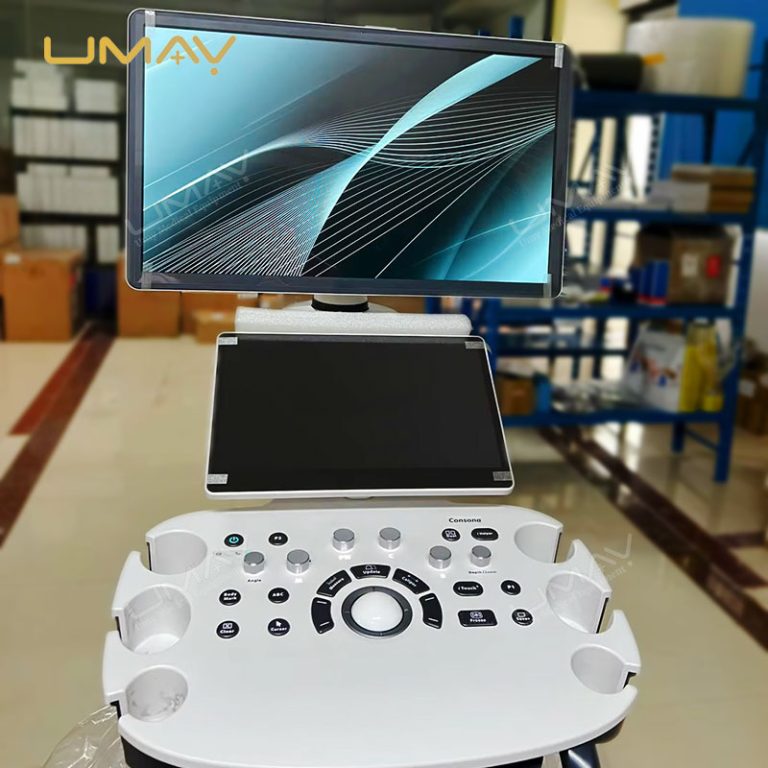

| Monitor | 21.5″ Full HD LED, height and side adjustable, automatic brightness correction |

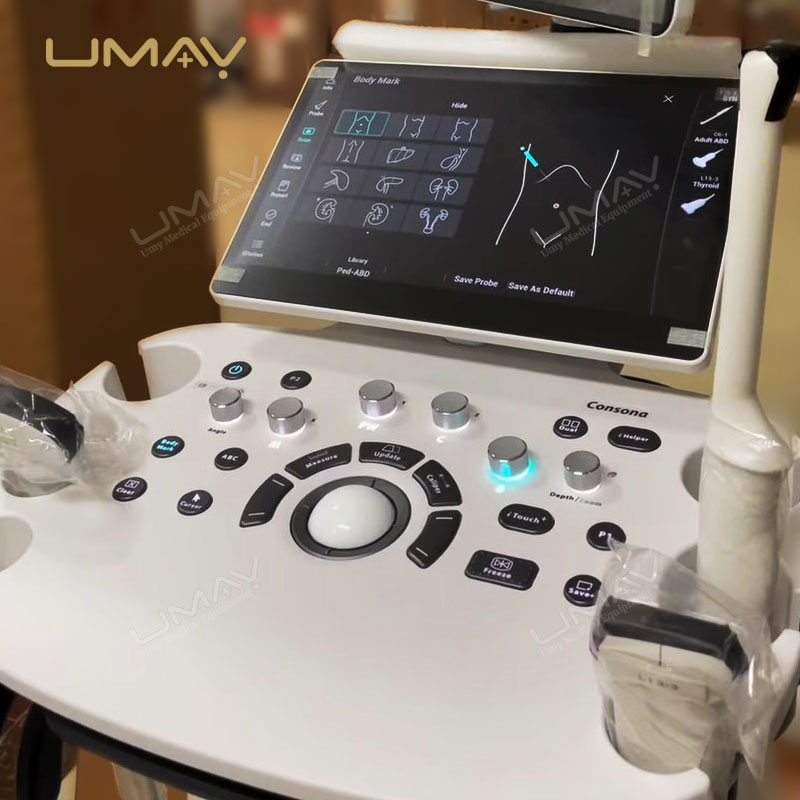

| Touch Panel | 13.3″ foldable, gesture control |
| Platform | ZST+ platform, focus-free technology, zone focusing |
| Technology | ZONE Sonography Technology |
| HD Scope | Real-time ROI image optimization |
| Advanced Acquisition | Dynamic pixel focus, Total Recall Imaging |
| Image Optimization | Intelligent auto image optimization |

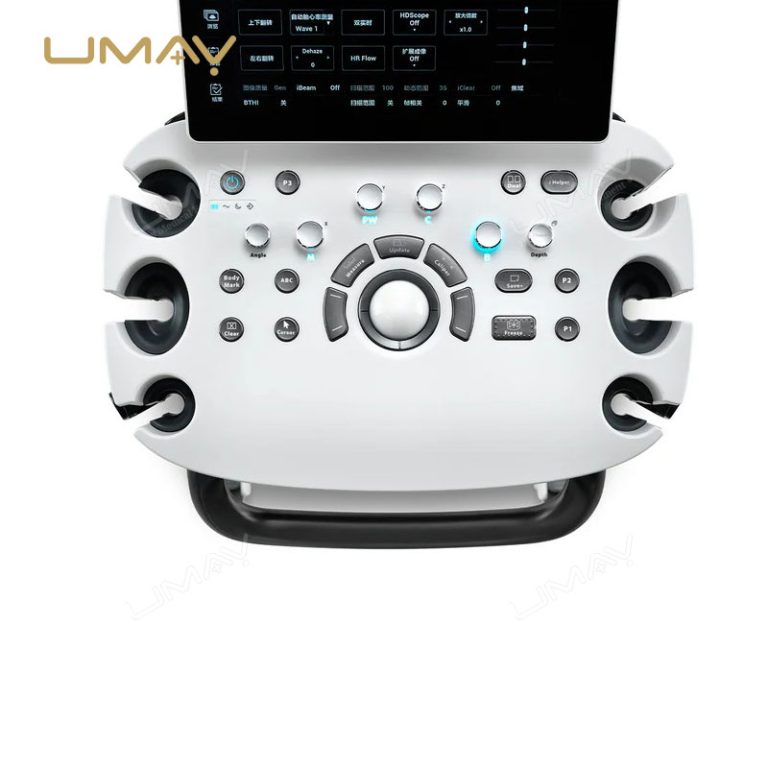

| Control Panel | Adjustable, quiet operation |

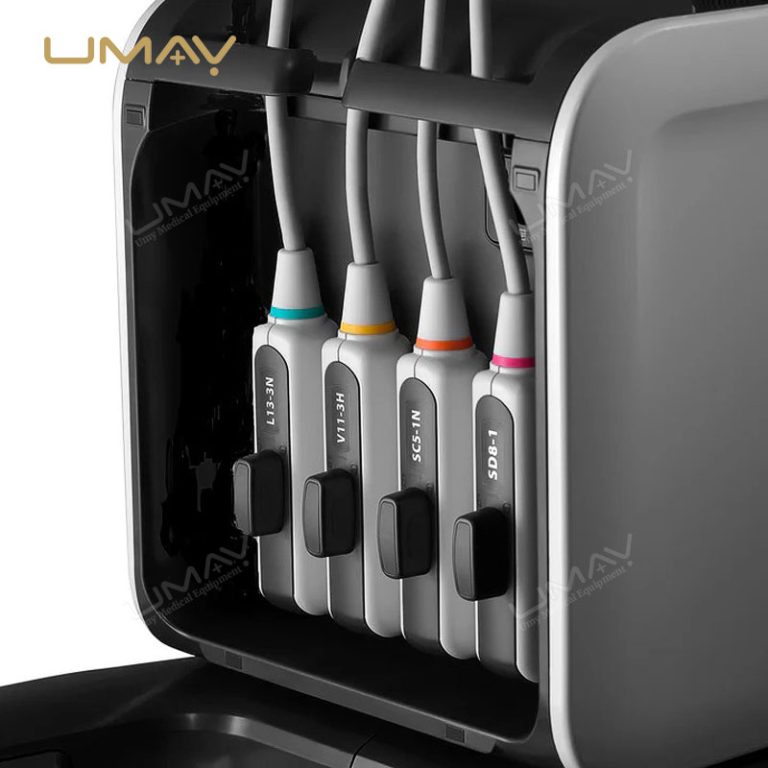

| Probe Connectors | Up to 4 connectors for probes |
| Software | Custom presets, Czech menu and reports |
| Imaging Enhancement | Tissue imaging optimization, multi-beam imaging, dual imaging |
| Central Line | Display on linear probes |
| DICOM Features | Verification, print, storage, Work List |
| Physical Specification | |
| Height | 1290–1570 mm |
| Width | 460 mm |
| Depth | 730 mm |
| Weight | Approx. 95 kg |
| Power | |
| Voltage | 100–240 VAC |
| Frequency | 50/60 Hz |
| Power Input | 6.2–2.0 A |
| Battery Voltage | 14.4 VDC, 6600 mAh |
