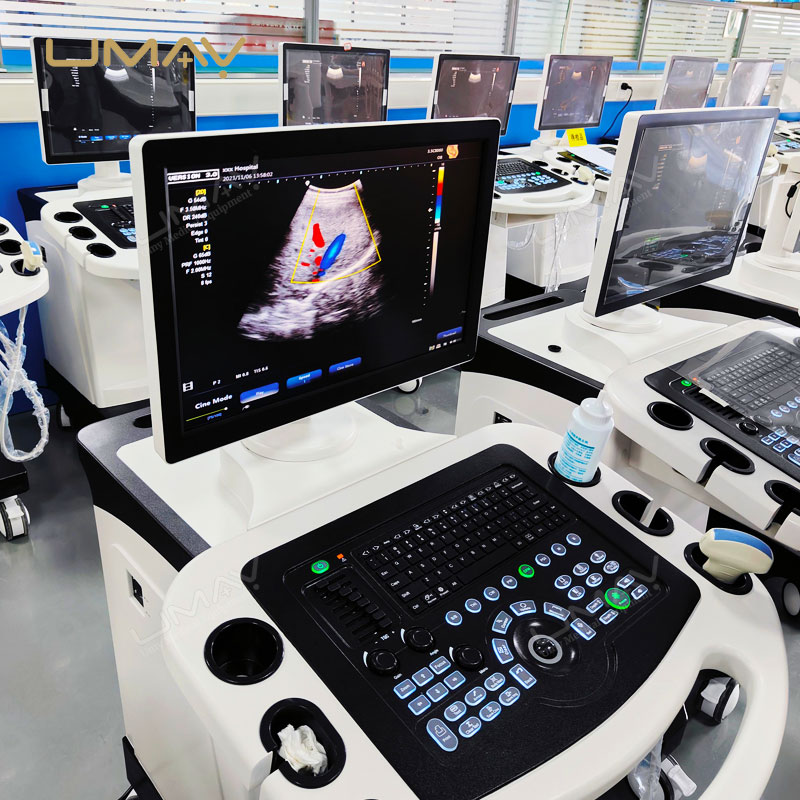

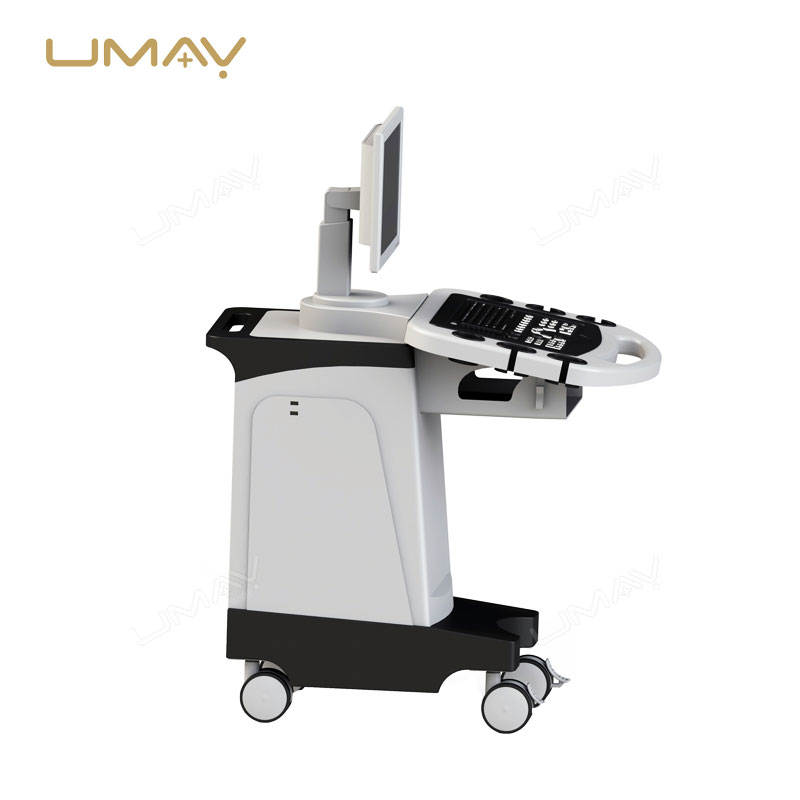

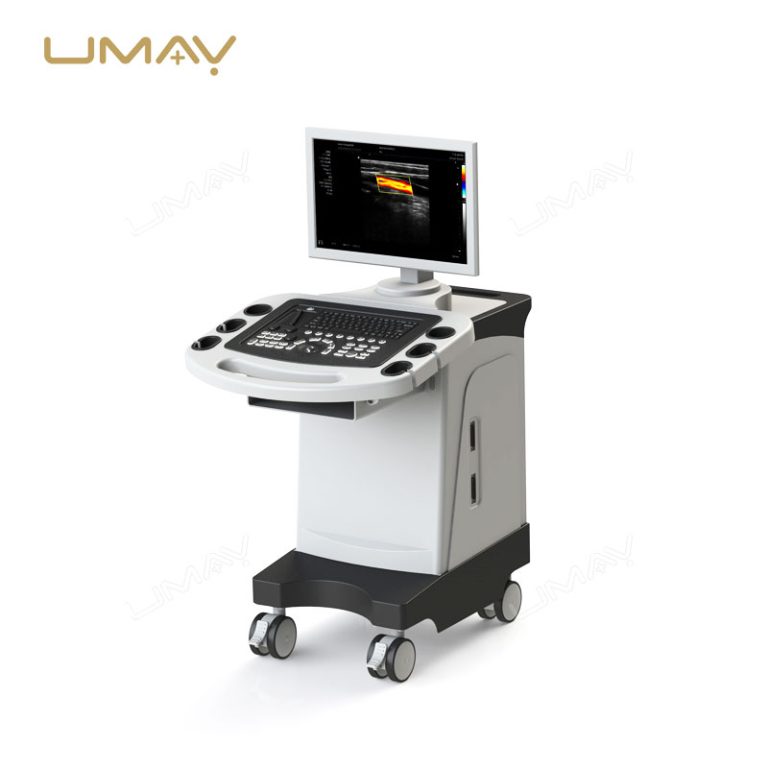

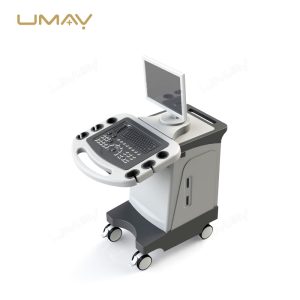

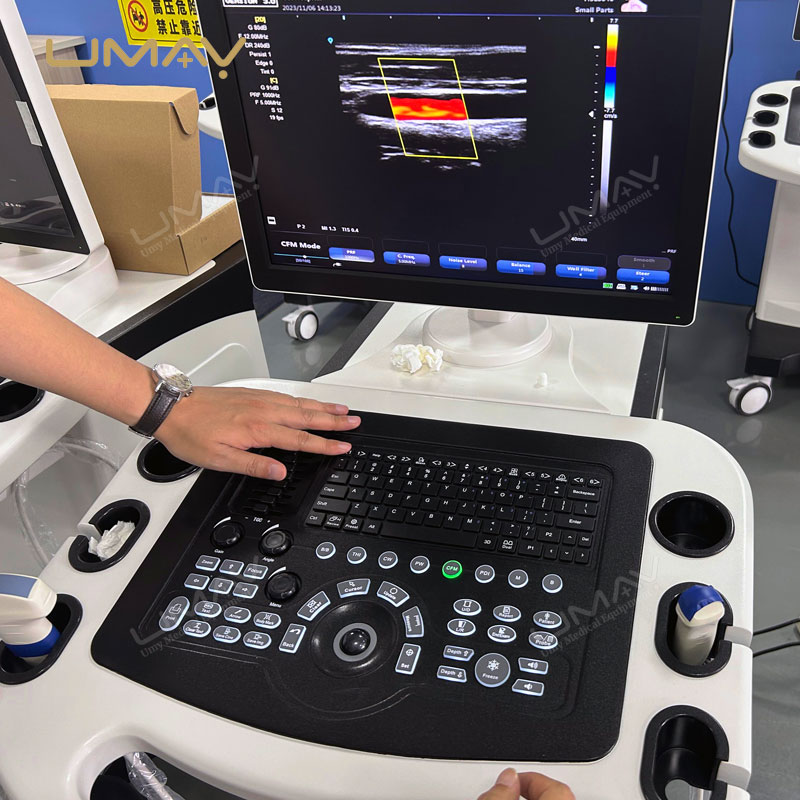

3D Imaging Color Ultrasound Machine with Linear and Convex Probes for Physical Therapy
SKU: UMY-US-082
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-US-082
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 5300 Sets/Year
This 3D imaging color ultrasound machine comes with both linear and convex probes, offering versatile imaging solutions for physical therapy and clinical diagnostics. Designed to support musculoskeletal evaluations, vascular imaging, and soft tissue assessments, it provides high-resolution visuals to aid in precise diagnoses and treatment planning. The system’s advanced ultrasonic technology ensures reliable performance, while its user-friendly interface enhances operational efficiency. Ideal for rehabilitation centers and clinics, it delivers accuracy and adaptability in various medical scenarios.
The Specific Parameters
ITEMS | PARAMETERS |
---|---|
Application Scene | |
Application Sites | Cardiac, Abdomen, etc. |
Application Directions | Medical student training, private clinic checkups, preliminary/home care examinations |
Features | |
Cost-Effectiveness | Affordable for students, like a cell phone |
Suitability | Cardiac, head, and abdomen scanner |
Telemedicine | Wireless probe supports remote diagnosis |
Portability | Compact and lightweight with built-in battery |
Technical Specifications | |
Scan Angle | 80° |
Operating Frequency Range | 2.2MHz / 3.6MHz |
Scan Modes | B, B/M, Color, PW, CW (PRF 10/20KHz) |
Display Depth | 90–190mm |
Image Modes | B, B/B, B+M, Color, PW, CW |
Gray Scale | 256 levels |
Channel of RF Circuit Board | 64 |
TGC | 8 |
Focus Points | 3 |
Probe Type | Micro Linear |
Probe Frequency | 10–13.2MHz (Linear head) |
Scan Depth | 100mm (Linear head) |
Image Storage | jpg, mp4 formats |
Cine Loop | 1000 frames movie playback |
Video Save | Yes |
Battery Working Time | 2–3 hours |
Waterproof Level | IPX7 |
WiFi Coverage Distance | ≥6m |
Operating System | iOS, Android |
Supported Devices | Android tablet, smartphone, iPhone, iPad |
Language | Chinese, English |
Physical Specifications | |
Dimensions | 133 x 55 x 27 mm |
Weight | 110 g |
Power | |
Power Type | Built-in lithium battery, wireless or USB charging |
Working Time | 2 hours |
