3-in-1 Portable Wireless Ultrasound with Linear and Convex Probes
Quick Info.
- SKU NO.: UMY-US-011
- Device Classification: Class â…¡
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 7000 Sets/Year
This 3-in-1 Portable Wireless Ultrasound with Linear and Convex Probes, compatible with smartphones via USB or WiFi for versatile point-of-care diagnostics. Designed for portability and ease of use, it is ideal for PICC line placements, vascular access, and general imaging in clinical and remote settings. With dual probes in one device, healthcare providers can seamlessly switch between modes to capture high-quality images tailored to various diagnostic needs. This compact and reliable tool enhances flexibility and accuracy in patient assessments.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Probe Specifications | |
| Probe Type | Convex & Phased probe + Linear probe |
| Scan Angle/Length | Convex: 50mm, Linear: 25mm |
| Frequency | Convex & Phased probe: 3.5/5.0MHz, Linear probe: 7.5/10MHz |
| Scan Mode | B, B/M, Color, PW |
| Display Depth | Convex: 90~305mm, Linear: 20~100mm |
| Image Processing | |
| Image Adjust | Gain, Depth, DR, Focus, SRI, Harmonic |
| Measure | Length, Area, Velocity, HR, S/D, Obstetrics, Auto blood vessel measurement |
| Puncture Assist Function | In-plane puncture guide line, Out-of-plane puncture guide line, Needle Enhance |
| Image Frame Rate | 20 frames/second |
| Cinplay | >50 seconds |
| Power & Connectivity | |
| Power | Built-in lithium battery, Wireless or USB charge (2h), Work time: 2.5h |
| Working System | iOS, Android, Windows |
| WiFi Type | 802.11n/2.4G/5G |
| Physical Specifications | |
| Dimension | 121x53x19mm |
| Weight | 120g |
Feature list for UMY-US-011:

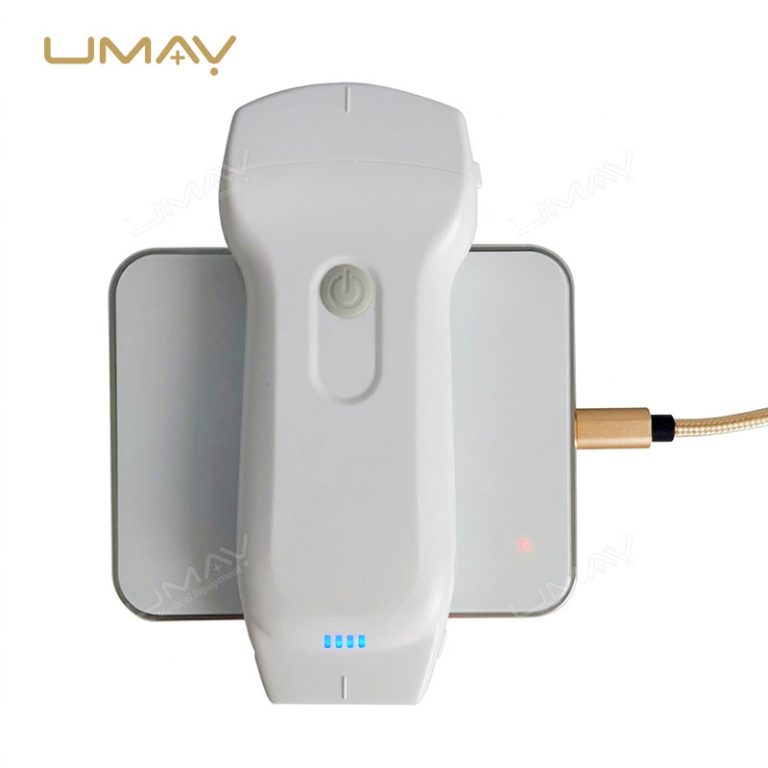

- Wireless charging and WiFi/USB connectivity
- Waterproof design for safety and ease of use
- Lightweight and portable for mobile use
- Multiple scanning modes including convex and linear probes
Application
Ideal for medical student training, private clinics, and homecare environments. It supports real-time ultrasound imaging for abdominal, superficial, lung, and cardiac assessments.
Q1: Can this scanner connect to multiple devices simultaneously, or is it limited to one device at a time?
A1: The scanner connects to one device at a time via WiFi or USB, and can be switched between Android phones, iPhones, iPads, and laptops as needed.
Q2: What materials and construction standards does the device use to ensure durability in clinical environments?
A2: The device is built with a waterproof housing designed to withstand regular cleaning and accidental fluid exposure during clinical or field use.
Q3: What ordering options and after-sales support are available for this portable ultrasound system?
A3: For purchasing details and technical support, visit our Wireless Linear and Convex Ultrasound Probes With Transducer Preferred By Experts page, where our team is ready to assist.
