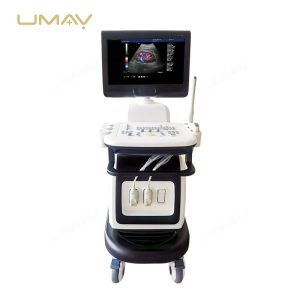

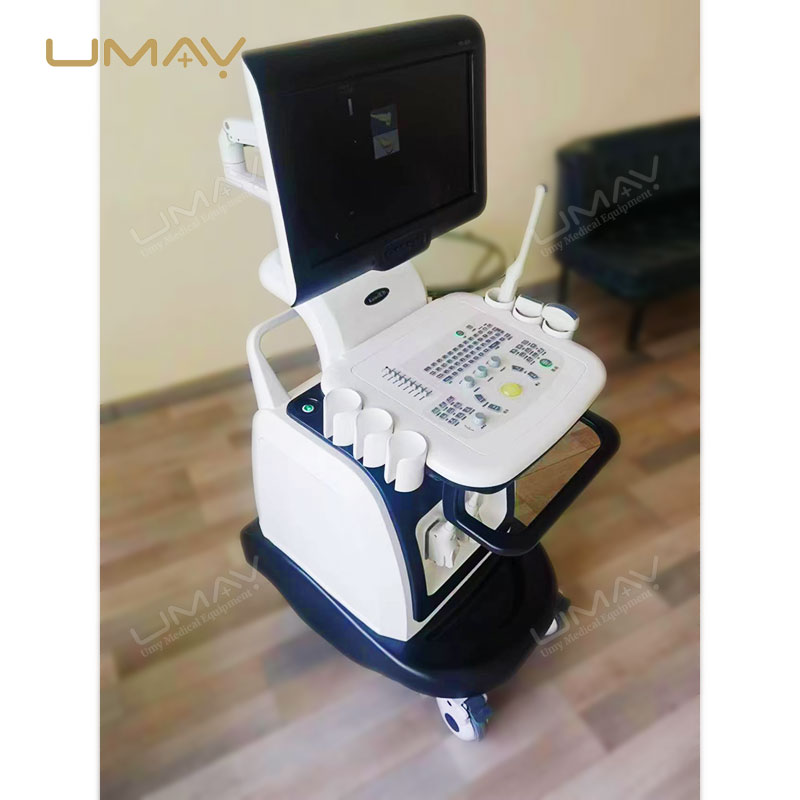

15 Inch High Definition Color Doppler Ultrasound Trolley with Elite Imaging
Quick Info.
- SKU NO.: UMY-US-035
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 2600 Sets/Year

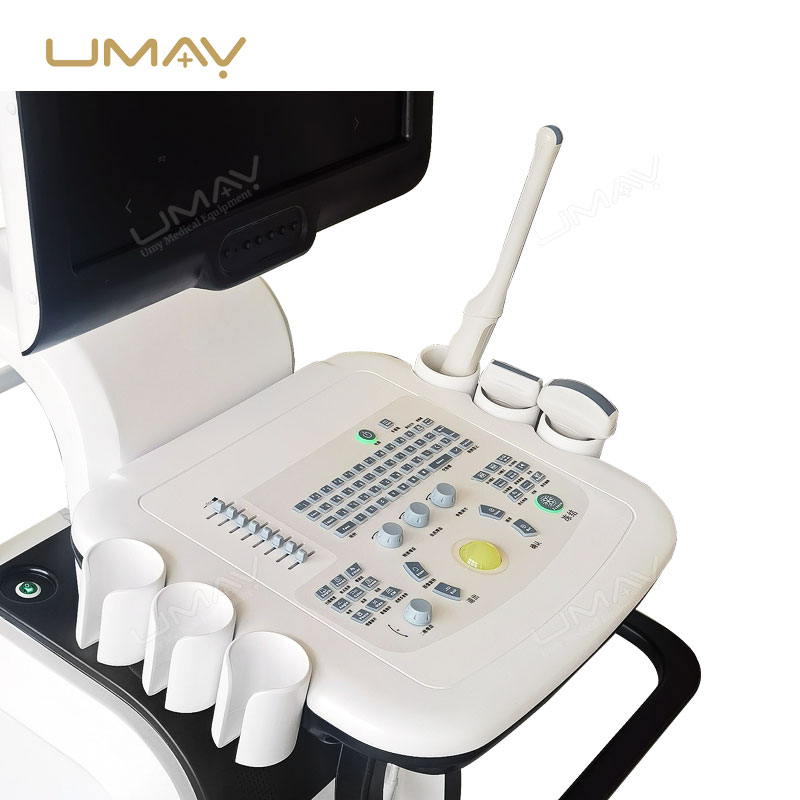

This 15 inch color Doppler ultrasound trolley integrates advanced imaging technologies including Tissue Harmonic Imaging, Power Doppler, and Pixel Focus Technology, delivering exceptional image clarity for obstetric, abdominal, cardiac, and vascular diagnostics. Its automatic probe recognition and one click optimization functions simplify operation and enhance diagnostic accuracy. The system includes dual USB interfaces, VGA output, and S Video connectivity for seamless data transfer and display. A laser engraved backlight keyboard and universal rotation display support long clinical use. Built in ultrasound management and analysis software improves workflow efficiency in hospitals and clinics. For extended applications in women’s health, see the Modern Medical Diode Laser System for Dental Applications.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Application Scene | |
| Target Clinical Areas | Abdomen, gynecology, obstetrics, pediatrics, urology |
| Target Organs & Systems | Transvaginal, superficial, blood vessels, small organs |
| Display | |
| Display Type | 15 inch high-resolution color LCD |
| Color Modes | 8 groups fundamental + 8 harmonic frequencies |
| System Configuration | |

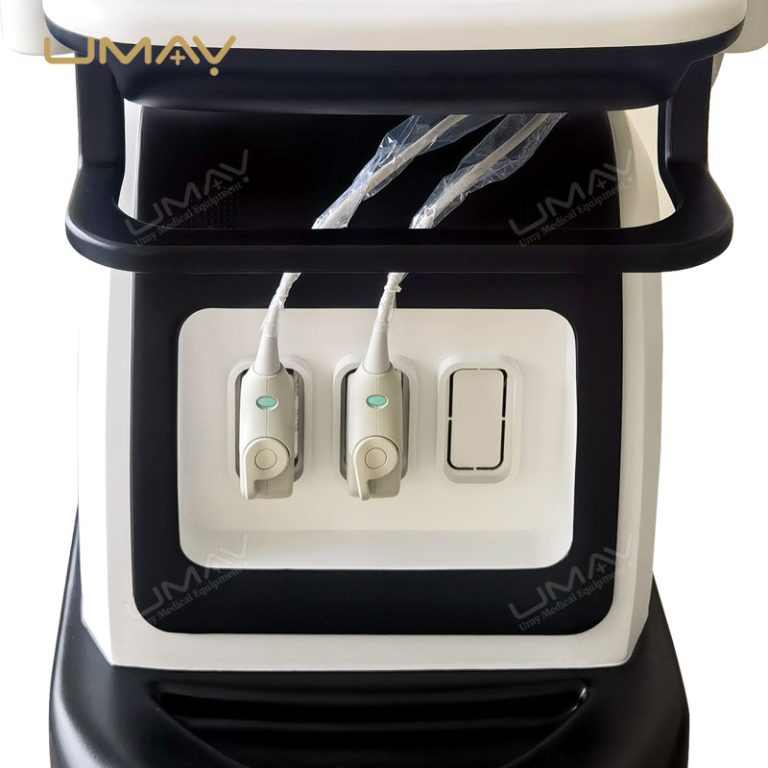

| Probe Interfaces | 4 interfaces, non-expandable |
| Rotating Arm | 360° rotation (up, down, left, right) |
| Operating System Languages | Chinese, English, Spanish (extendable) |
| Image Processing | |
| False Colors | 7 types |
| Gain Adjustment | B / M independently adjustable |
| Image Magnification | Up to 10× |
| Image Depth | ≥300mm |
| Sector Angle Adjustment | 10° to -50° range |
| Clipboard | Real-time image storage |
| Color Doppler Imaging | |
| Doppler Gain | 100% dB, continuously adjustable |
| PRF | ≥16 gears, 0.7kHz–22kHz |
| Angle Correction | 85° ~ -85°, 5° step size |
| Spectrum Reversal | Yes |
| Wall Filter | ≥3 gears adjustable |
| Spectrum Doppler | |
| PWD Modes | Linear, Convex, Sector |
| Pulse Frequency | 1.82–5.54kHz, adjustable |
| Spectrum Flip | Yes |
| Envelope Modes | Multiple types, real-time |
| Doppler Frequencies | 5 groups (linear/convex) |
| Display Control | Reverse display: left, right, up, down |
| Image Storage | |
| Storage Methods | Hard disk & USB disk |
| Playback Capacity | Grayscale image playback ≥1000 |
| System Functions | |
| Preset Modes | Obstetrics, vascular, cardiac, pediatrics, etc. |
| Image Management | Annotation, archiving, body mark, puncture |
| One-Key Recovery | Yes |
| Reset Function | Yes |
| Measurement & Analysis | |
| General Measurements | Distance, area, perimeter, angle, time, flow rate |
| Obstetric Measurements | Weight, gestational age, fetal index |
| Cardiac Measurements | Ejection index, end-diastole, acceleration |
| Input / Output | S-Video, USB, LAN |
