Video Otolaryngoscope Wallet-Friendly with Touch Screen and LED Illumination for ENT Diagnostics
Quick Info.
Power Source: Electric
Warranty: 1 Year
After-sale Service: Online technical support
Material: Metal, Plastic, Medical Stainless Steel
Instrument Classification: Class II
Safety Standard: GB9706.1-2007
- SKU NO.: UMY-EN-054
- Warranty: 1 Year
- Origin: China

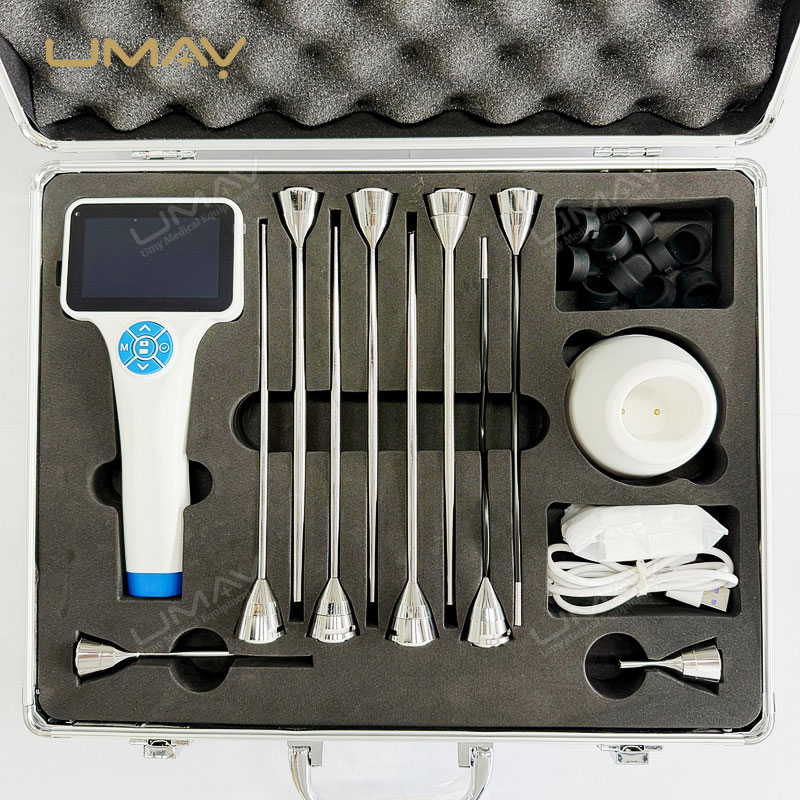

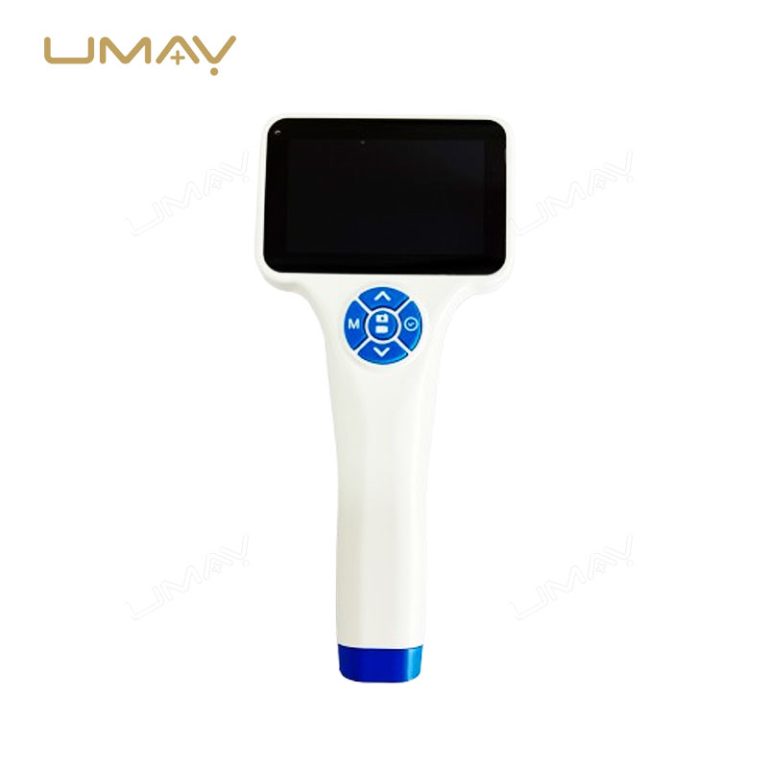

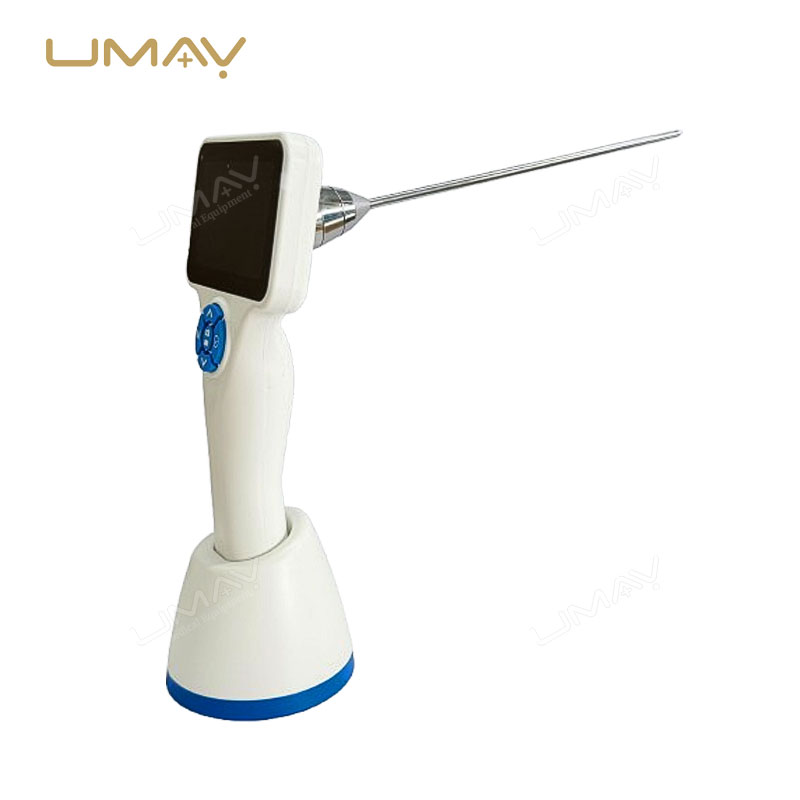

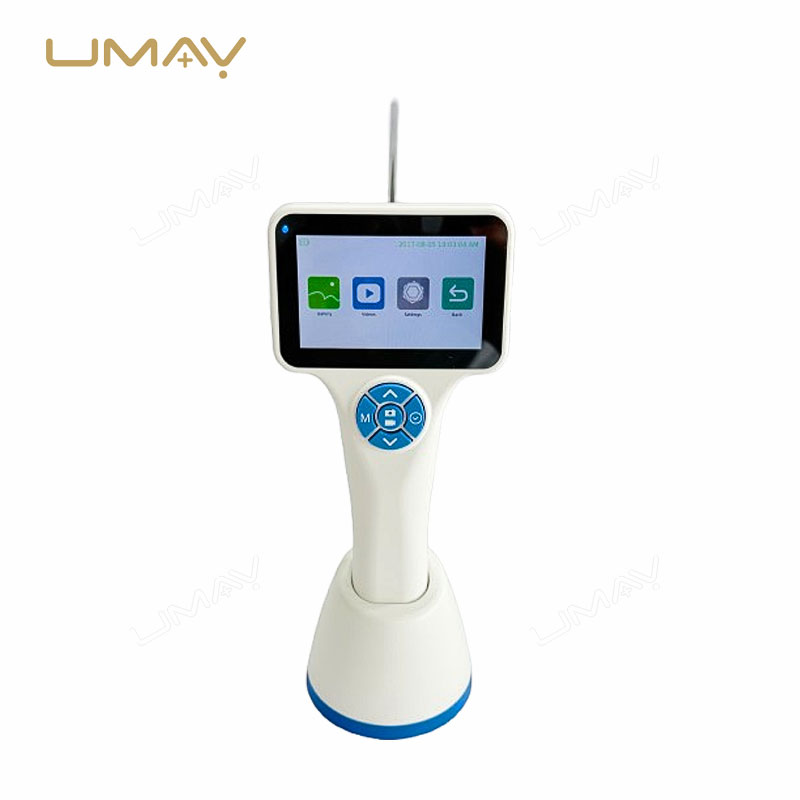

This portable video otolaryngoscope delivers high-resolution imaging with a 3.2-inch LCD touch screen and built-in 6 LED lights for enhanced visibility during ENT examinations. Powered by a rechargeable 2200mAh Li-ion battery, it supports over five hours of continuous operation, making it suitable for outpatient clinics and mobile healthcare environments. The ergonomic design and Type C output ensure smooth video transmission and convenient data management. A Wallet-Friendly choice for hospitals, this device complements other ENT tools like our cost-effective medical video gastroscope and colonoscope used for digestive system diagnostics. It is ideal for real-time visualization and documentation in both pediatric and adult care.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Display | |
| Screen Size | 3.2-Inch Touch Lcd |
| Resolution | 800*480 |
| Power | ≤ 2W |
| Image Transmission | Type C Output |
| Storage | 16G |
| Battery | |
| Type | Li-On Rechargeable |
| Capacity | 2200mAh |
| Rechargeable Times | >1000 Times |
| Full Power Working | >5 Hours |
| Charging Time | <4 Hours |
| Charging Interface | Type C |
| Camera | |
| Illumination Level | ≥1000 LUX, H=30mm |
| Working Distance | 15mm-50mm |
| Spatial Resolution | ≥6.35lp/Mm |
| Color Temperature | ≥5000K |
| Image Resolution | 1280*720px |
| Pixel | 1 Million |

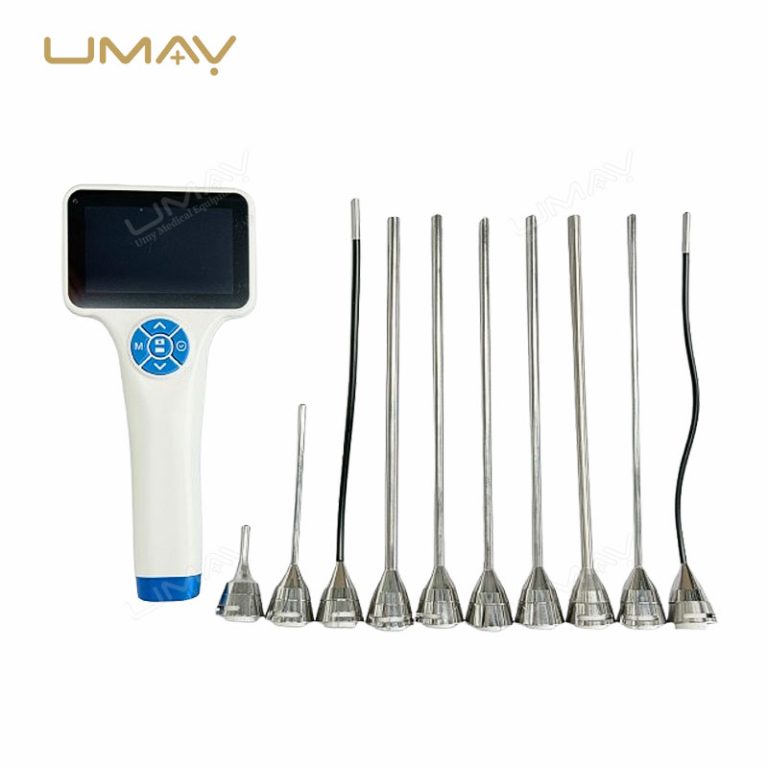

| Optional Blades | |
| Number | S1, S2, S3, S4, S5, S6, S7, S8, S9, S10 |
| Length of Scope (mm) | 45, 110, 190, 200, 200, 200, 200, 200, 200, 190 |
| Working Length (mm) | 30, 80, 165, 175, 175, 175, 175, 175, 175, 165 |
| Max OD (mm) | 4.2, 4.2, 4.2, 7, 5.5, 5.5, 5.5, 5.5, 4.2, 3.6 |
| Field of View | 120°, 120°, 120°, 120°, 120°, 120°, 120°, 120°, 120°, 120° |
| Direction of View | 0°, 0°, 0°, 0°, 0°, 30°, 70°, 90°, 0°, 0° |
