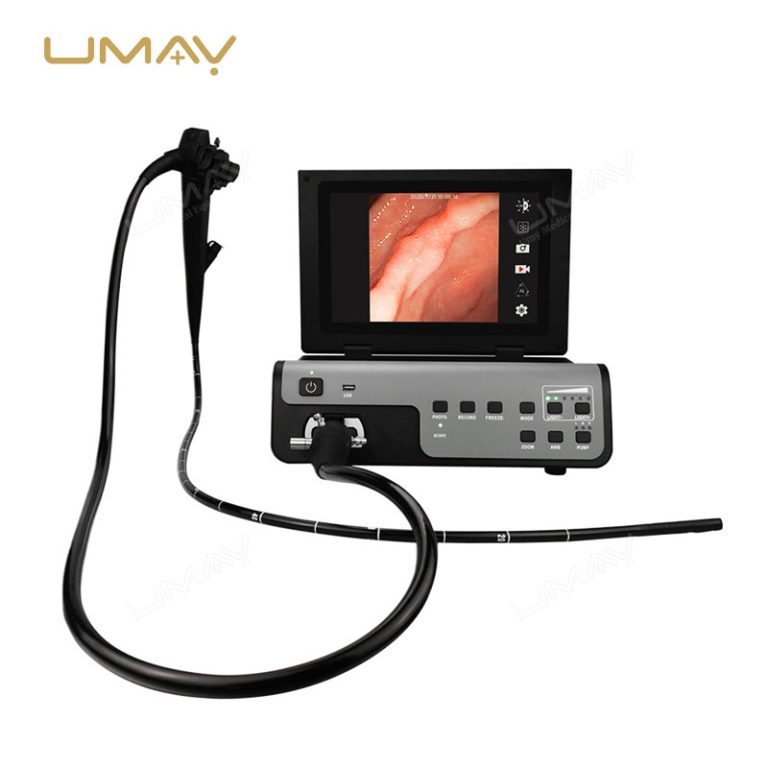

Vet Digital Gastroscopy Endoscopy System Portable for Animal Clinics
Quick Info.
Power Source: Electricity
Warranty: 1 Year
After-sale Service: Online technical support
Material: metal, Plastic
Shelf Life: 1 years
Quality Certification: ce
Instrument classification: Class II
- SKU NO.: UMY-VEEN-014
- Warranty: 1 Year
- Origin: China

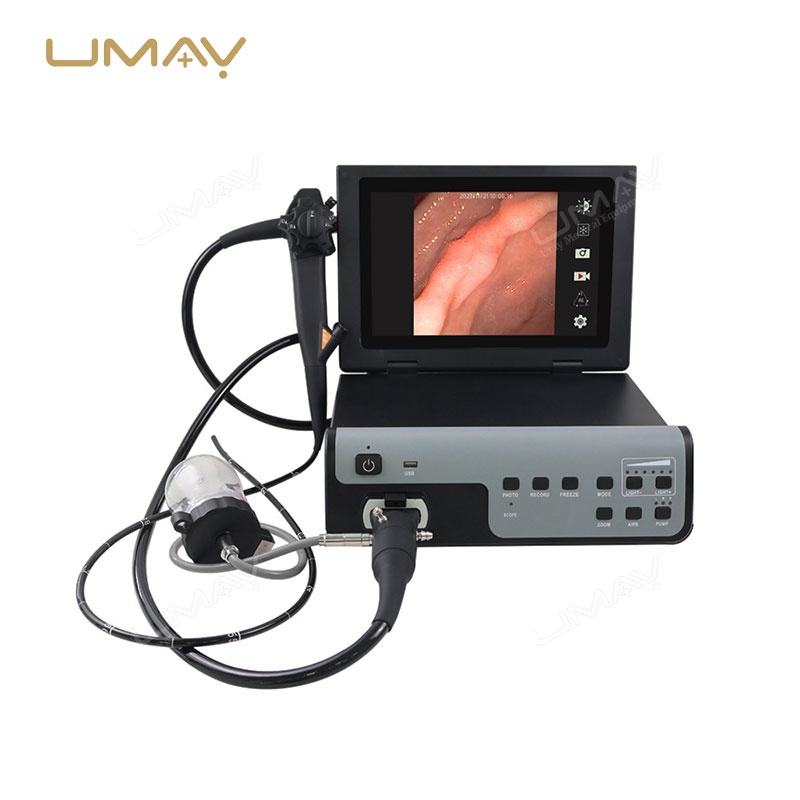

This veterinary digital gastroscopy endoscopy system provides high resolution imaging at 1280×720 with a 140° field of view for clear visualization of the gastrointestinal tract in animals. Its LED light source and dual diameter insertion tubes (9.5 mm and 7.0 mm) allow flexibility for use in different species, making it suitable for diagnosing gastritis, ulcers, esophageal obstruction, and foreign body retrieval. With a working length of 1050 mm and 180° up and down angulation, veterinarians can perform precise examinations with ease. The waterproof design and air/water channel support efficient cleaning and vision clarity. For animal clinics requiring complementary diagnostic imaging, the Portable Wrist Type Full Digital Mechanical Sector Ultrasound Scanner for Veterinary Use is an excellent companion device.
The Specific Parameters
ITEMS | PARAMETERS |
---|---|
Optical System | |
Field of View | 140° |
Depth of Field | 8–100 mm |
Imaging Benefit | Capture wide, detailed images for more accurate diagnosis |
Insertion Tube Options | |
Distal End Diameter | 31.5Fr (10.5 mm) / 24Fr (8.0 mm) |
Outer Diameter | 28.5Fr (9.5 mm) / 21Fr (7.0 mm) |
Working Channel Inner Diameter | 9.0Fr (3.0 mm) / 6.0Fr (2.0 mm) |
Water & Air Channels | 3.3Fr (1.1 mm) |
Working Length | |
Flexible Shaft | 1050 mm |
Total Length | 1360 mm |
Deflection Range | |
Up | 210° |
Down | 100° |
Left/Right | 100° each |
Benefit | Exceptional maneuverability to reach and inspect difficult areas |
Screen | |

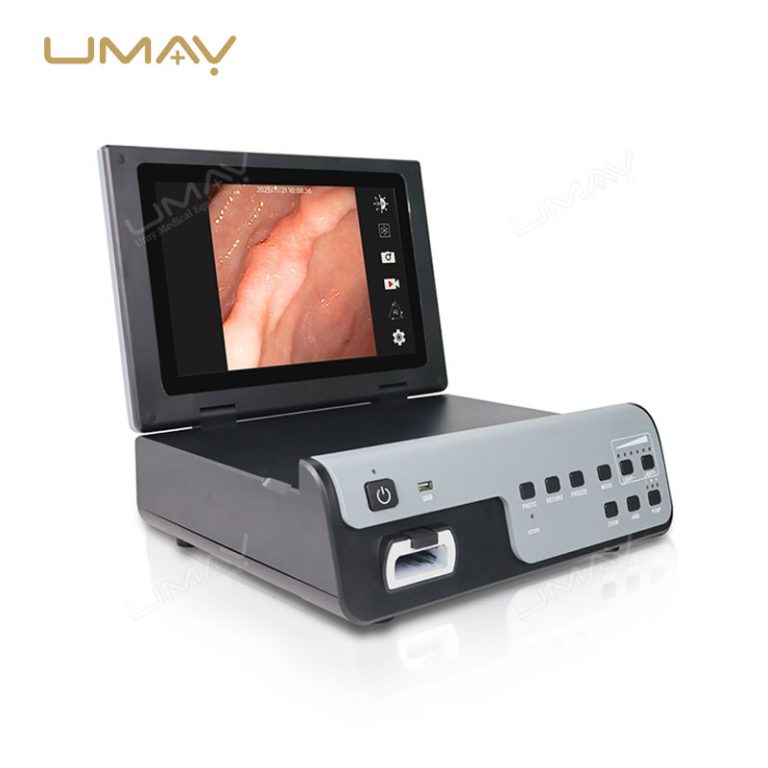

Type | 12.1″ High-Resolution Touch Display |
Resolution | 1280 × 800 |
Design Benefit | Compact and portable, optimized for mobility and field use |
Core Features | |

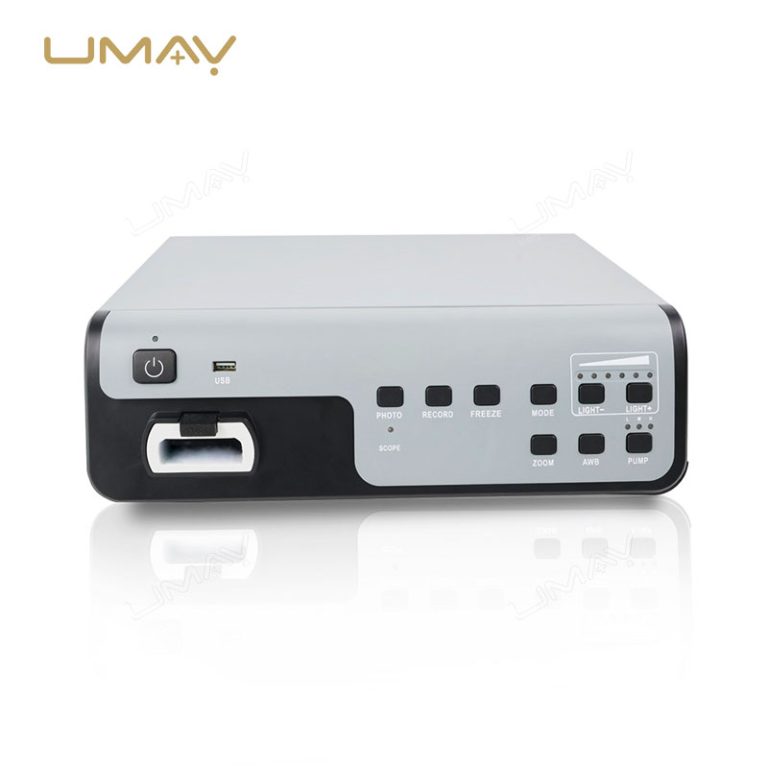

Imaging Tools | White balance, photo capture, and video recording |
Viewing Mode | Real-time multi-window viewing |

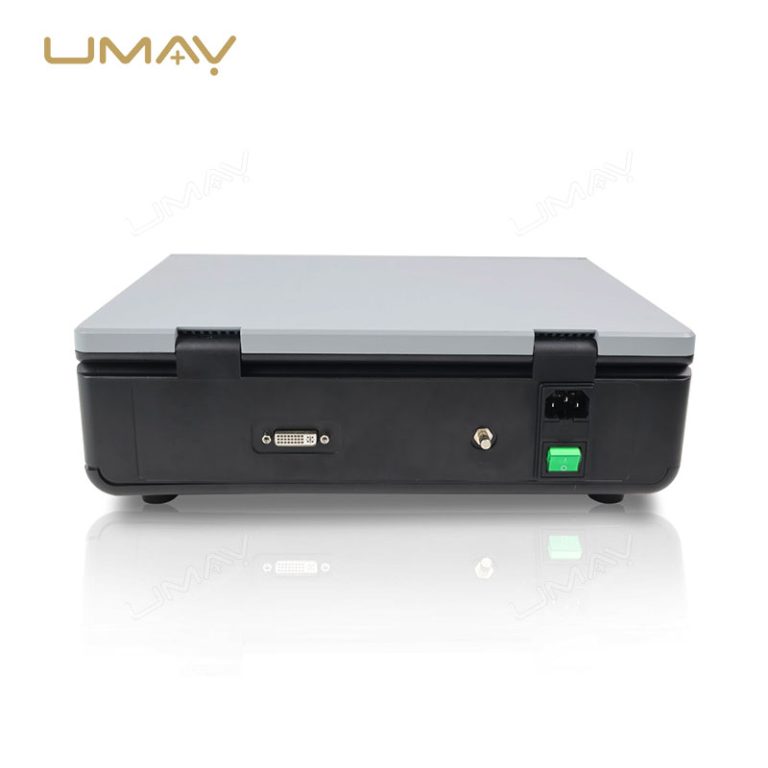

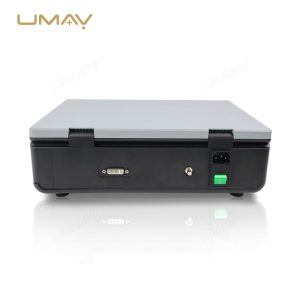

Video Output | DVI port for external monitor output |
Utility Integration | Built-in air and water pump |
Internal Storage | 64GB internal storage |
