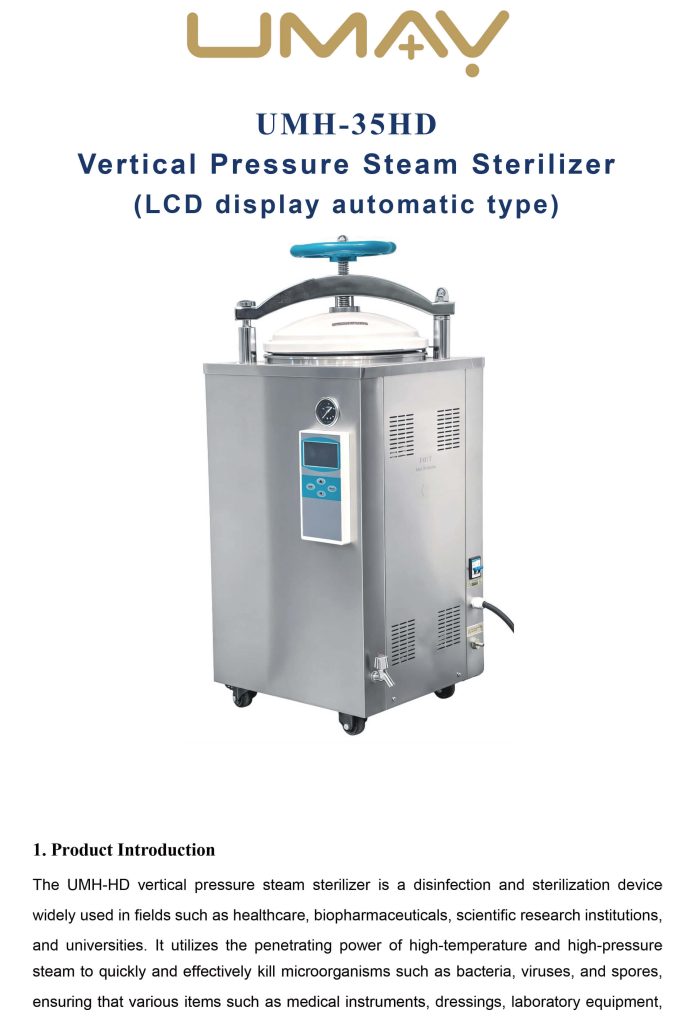

Vertical Pressure Steam Sterilizer | High-Capacity Stainless Steel Vertical Autoclave with Digital Microprocessor Controller, Hand-Wheel Quick Opening, Safety Interlock, & Drainage Tap for Medical Hospital & Laboratory Sterilization
Quick Info.
- SKU NO.: UMH-35HD
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 3300 Sets/Year
Engineered for heavy-duty hospital CSSD and laboratory sterilization, this vertical pressure steam sterilizer delivers rapid, high-temperature thermal processing for surgical instruments, glassware, culture media, and medical waste. Built from high-grade SUS 304 stainless steel with a hand-wheel quick-opening safety lid, this vertical autoclave features digital microprocessor temperature and timer controls, a dual-scale analog pressure gauge, multi-layer over-pressure and low-water safety protections, and heavy-duty swivel casters for smooth mobility.
The Specific Parameters
Core Systems Engineering Advantages for Medical Sourcing Networks:
-
Complete Saturated Steam Penetration: Eliminate spore and microbial contamination. Advanced steam circulation ensures uniform heat distribution throughout the chamber, meeting stringent medical sterilization standards.
-
Automated Cycle Operation: Save staff labor and reduce error. The automated micro-computer control system manages heating, timing, pressure maintenance, and steam venting seamlessly.
-
Low Maintenance & Easy Cleaning: Designed for demanding laboratory workflows. The smooth stainless steel interior, accessible heating elements, and dedicated front drain valve facilitate rapid cleaning and routine maintenance.

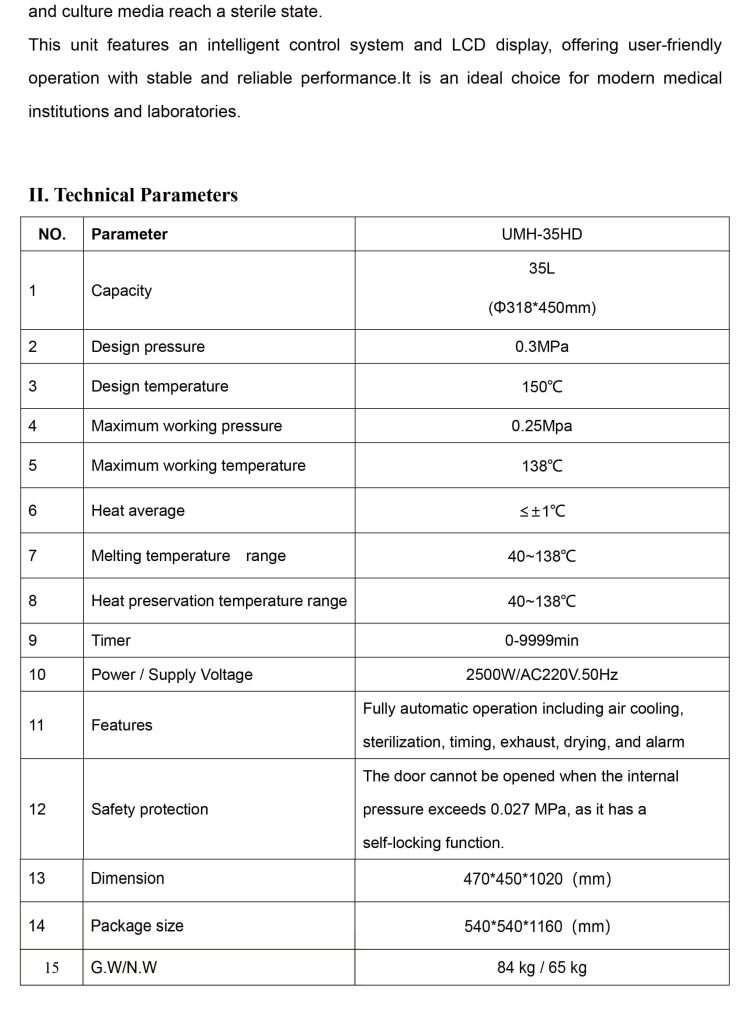

📊 Comprehensive Technical Specifications:
| Technical Parameter Component | Standard System Configuration Attribute |
| System Device Classification | Vertical Pressure Steam Sterilizer / Top-Loading Autoclave |
| Chamber Material Construction | Heavy-Duty SUS 304 Stainless Steel (SUS 316L Optional) |
| Sterilization Temperature Range | 105°C – 134°C (Digital Precision Control) |
| Maximum Operating Pressure | 0.22 MPa (2.2 bar) with Analog Gauge Readout |
| Sterilization Timer Range | 0 – 99 Minutes Digital Programmed Timer |
| Safety Interlock Features | Auto Safety Valve, Anti-Dry Burn, Over-Temp Cutoff, Door Lock |
❓ Crucial B2B Component Sourcing Q&A
Q1: What materials and items can be sterilized in a vertical pressure steam autoclave?
A: Vertical pressure steam sterilizers are designed for heat- and moisture-stable items, including stainless steel surgical instruments, laboratory glassware, liquid culture media, rubber stoppers, surgical dressings, and biohazard laboratory waste.
Q2: How does the over-pressure safety protection system function?
A: The sterilizer is equipped with an automatic mechanical safety relief valve. If internal chamber pressure exceeds the safe operating threshold (e.g., $0.24 MPa), the safety valve vents excess steam automatically to restore safe pressure levels, supported by electronic over-pressure cutoff sensors.
Q3: Can this vertical autoclave be used for liquid culture media preparation without liquid boiling over?
A: Yes. The microprocessor controller allows custom cooling and slow steam exhaust settings specifically programmed for liquid cycles, preventing thermal shock and boiling over of liquid media and solution bottles upon cycle completion.
Q4: What OEM branding, chamber volume customization, and compliance certifications do you offer?
A: We offer full OEM manufacturing, including custom chamber capacities (35 L, 50 L, 75 L, 100 L, 120 L), private-label brand plates, localized software language options, and complete regulatory export documentation (CE, ISO 13485, Pressure Vessel Test Certificates) for global import clearance.
