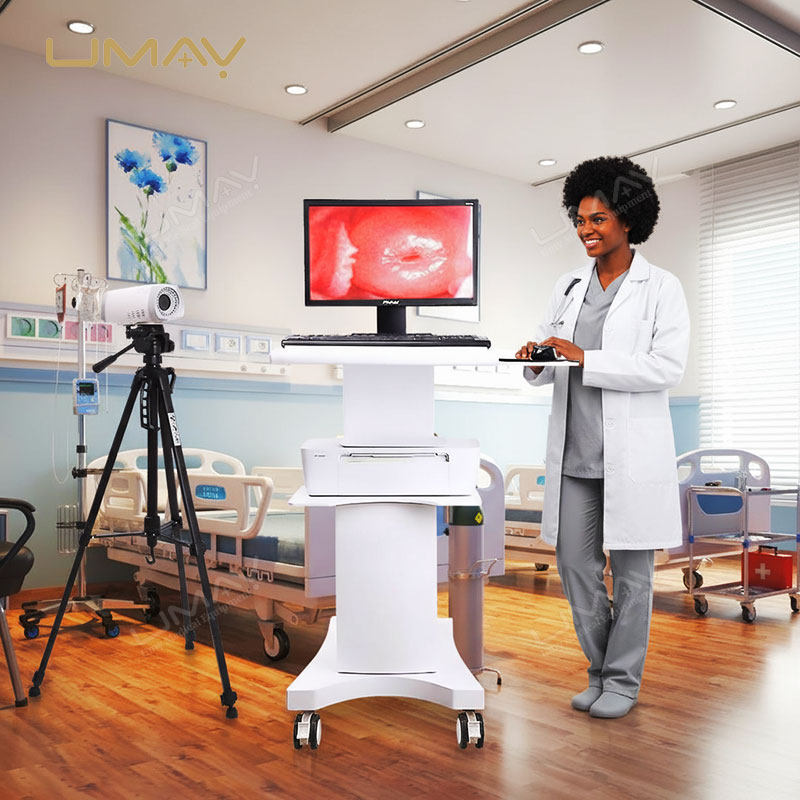

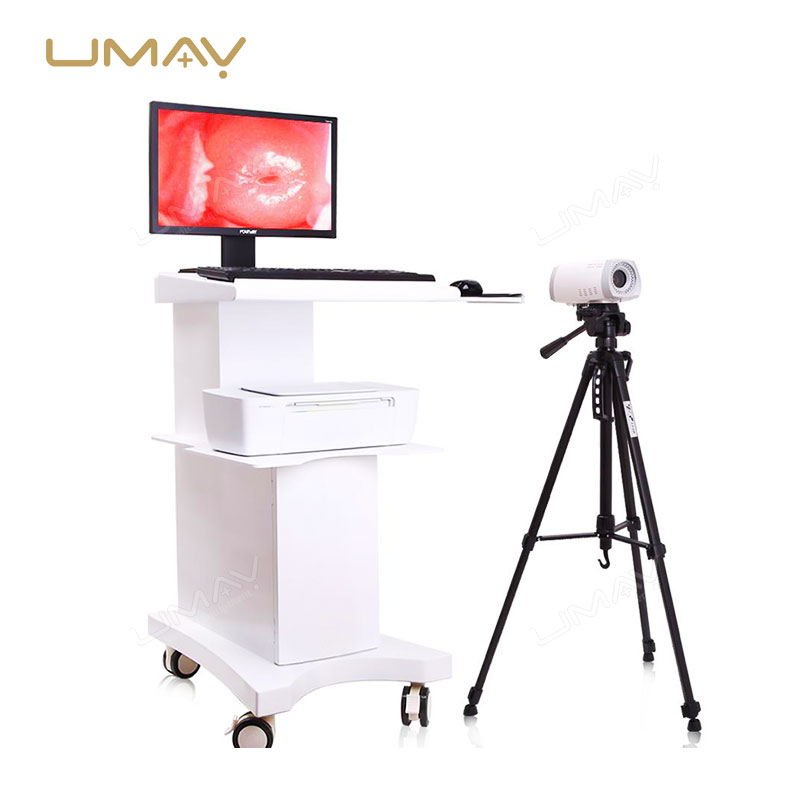

Trolley Video Colposcope System for Gynecological Examination and Cervical Screening
Quick Info.
Power Source:Â Electric
Warranty: 1 year
After-sale Service: Online service and delivering spare parts
Transport Package: Carton or Wooden Cases
Material: Metal, Plastic
Origin: Guangzhou City, Guangdong, China
Instrument Classification:Â Class â…¡
Quality System Standard: ISO13485
- SKU NO.: UMY-EN-056
- Warranty: 1 Year
- Origin: China
This trolley video colposcope system is designed for gynecological clinical examination and early screening of cervical diseases. It provides ten to sixty times optical magnification to help clinicians identify small lesions that are difficult to detect with the naked eye. High quality image amplification allows clear observation of cervical blood vessels and epithelial changes for accurate assessment of precancerous conditions. Advanced image processing supports image marking area calculation zooming and full screen display to assist diagnosis. Continuous image capture and multi image comparison improve clinical efficiency during examinations.
A related Endoscope category can be explored Here.
This system supports early diagnosis and timely intervention to improve cervical cancer treatment outcomes.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Application | |
| Purpose | Checking pathological changes in vulva, vagina, and cervix, filtering cervical cancer by fluorescence and managing images. |
| Technical Specifications | |
| Lens Resolution | 1/4″ super HAD color CCD, 800,000 pixels |
| Magnification | 1~128, continuously variable adjustment |
| White LED Power | Super and even brightness, more than 60% brighter than traditional halogen lamps |
| Lifetime | 100,000 hours |
| Image Quality | Vivid color, with special halo filtering technology for clearer images |
| Storage | Up to 1 million cases, with convenient check of cases and statistics |
| Lens Focus Distance | Standard: 100–400mm, Support: 10–1000mm |
| Scan Range | 2.5mm–20mm–320mm |
| Depth of Field | 15mm–40mm / 15mm–480mm |
| Lens Zoom | 1~128 |
| Lens Focus | AF/MF |
| Lens White Balance | AWB |
| Lens Light Source | LED, Phosphorus Gallium Arsenide high brightness, longevity light source group (average life 100,000 hours) |
| Lens Image Output Interface | Video, S-video, PAL |
| Lens Video Output | PAL, VBS-standard 1.0Vp-p |
| Power Requirements | AC220V ±10%, Power Rating: 500W |
| Brightness Adjustment | Automatic electronic shutter |
| Ambient Temperature | -40°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Relative Humidity | 30~80% RH |
| Standard Configuration | |
| Sony Camera | 1 pc |
| Capture Card | 1 pc |

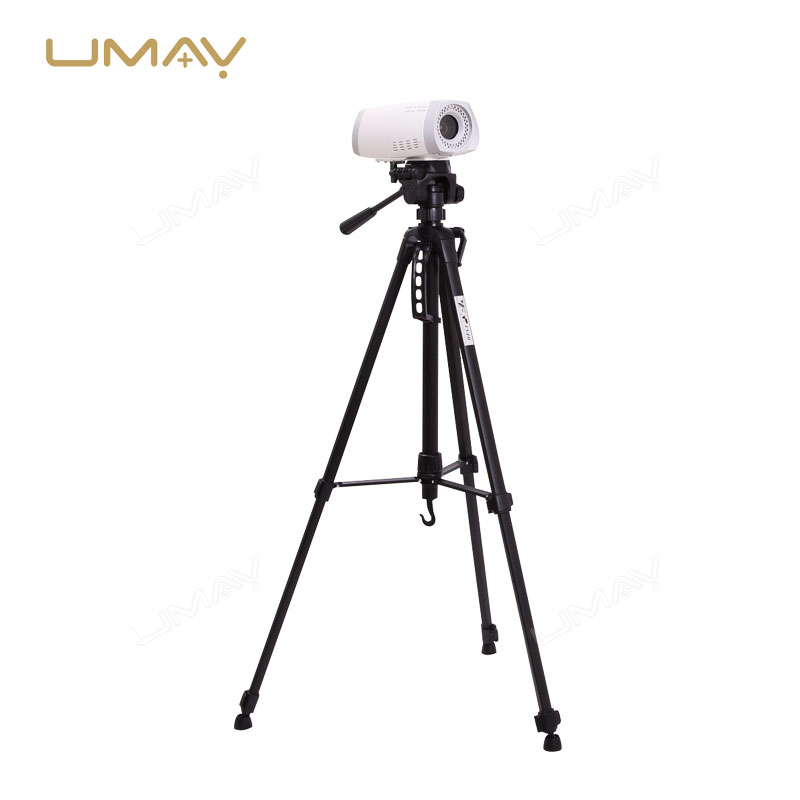

| Tripod | 1 pc |
| Software CD | 1 pc |
| Trolley | 1 pc |
| Desktop PC | 1 pc |
Feature list for UMY-EN-056
* Trolley based structure for stable clinical operation
* Ring fiber lens providing clear and uniform illumination
* Halogen cold light source with adjustable brightness
* Green filter to enhance vascular observation
* Advanced image processing with marking and measurement tools
* Continuous image acquisition with multi image display
* Image editing functions including freeze capture and deletion
* Report output supporting multiple file formats
* Compatible with Windows operating systems
Application
Designed for gynecology departments women health clinics and diagnostic centers performing cervical examinations screening and follow up evaluation. Suitable for routine colposcopy and early cervical lesion detection.
Q1: Can the system be connected to an external monitor or display for team-based examination review?
A1: Connection to external displays depends on the available output ports on the integrated unit, and this should be confirmed with the supplier for specific installation requirements.
Q2: How does the ring fiber lens design contribute to consistent image quality during cervical examination procedures?
A2: The ring fiber lens delivers uniform illumination across the entire field of view, reducing shadowing and supporting consistent visualization of cervical tissue throughout the examination.
Q3: What other colposcope options are available for clinics that need a portable alternative to the trolley system?
A3: Clinicians can explore the in demand portable digital video colposcope for gynecological examinations as a compact option for facilities requiring greater mobility.
