Surgical Smoke Evacuator System for Operating Room Safety
Quick Info.
Power Source: Electric
Warranty: 1 Year
After-sale Service: Online technical support
Material: Metal, Plastic, Medical Stainless Steel
Instrument Classification: Class II
Safety Standard: GB9706.1-2007
- SKU NO.: UMY-HE-010
- Warranty: 1 Year
- Origin: China
The surgical smoke evacuator is designed to efficiently remove hazardous surgical smoke, reducing odor, particulates, and toxic byproducts during electrosurgical procedures. With adjustable suction settings, foot and manual control, and a high-efficiency filtration system rated at 99.999% for 0.1–0.2 µm particles, it supports continuous operation in OR environments. This device operates below 50 dB and features intuitive LED display and programmable delay time, promoting safe, quiet, and reliable performance. The system complements advanced surgical setups such as the high-frequency electrosurgical unit for medical applications. Ideal for clinics, hospitals, and outpatient centers focused on staff and patient safety.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Power | |
| Max Mains Voltage | 110VAC/220VAC |
| Power Consumption | < 350W |
| Working | Continuous |
| Noise | < 50dB (A) |
| Technical Parameters | |
| Protective Class | DIN EN 60 601-1 (Class I) |
| Type | EN 60 601-1 (Type B) |
| Start Control | Foot |
| Suction | 10% ~ 100%, Adjusted |
| Stop Delay Time | 0 ~ 60s, Adjusted |
| Display | Digit LED |
| Flow Rate Unit | 100 l/min |
| Filter Characteristics | |
| Main Filter (D901) | 99.999% @ 0.1-0.2µm, 3-months life |
| Rear Filter (D902) | Active Carbon, 1-year life |
| Synchronize Line (FP01) | D6.5mm |

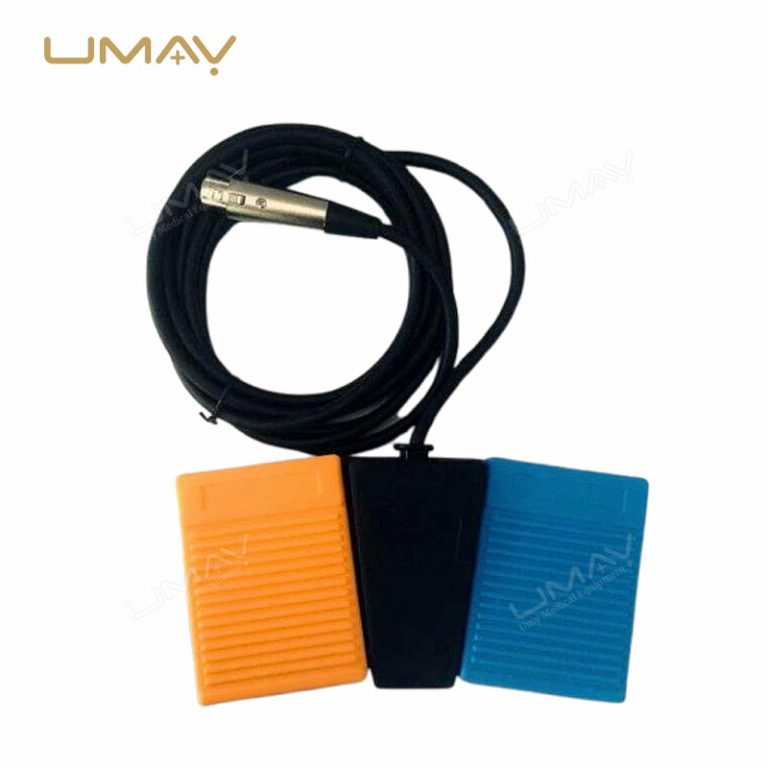

| Foot Control (SW01) | L2.0m |
| Suction Tube (D22, D12) | L1.8m |

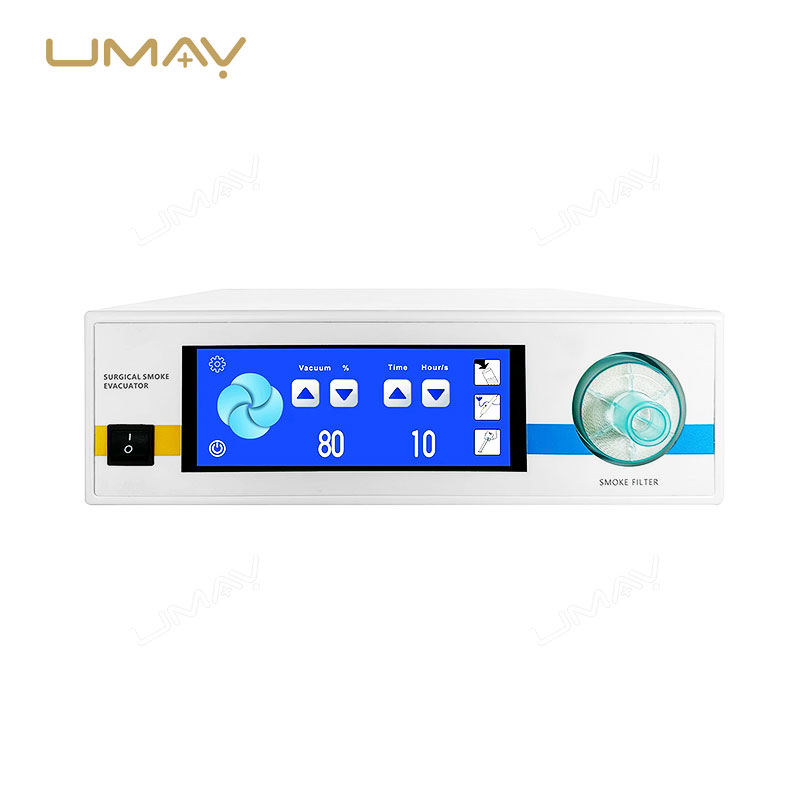

Digital Display Model (Touch Screen):
This advanced surgical smoke evacuator features a modern digital touch screen for intuitive control of suction power, timing, and filter monitoring. Ideal for high-precision environments, it ensures efficient removal of surgical smoke with real-time feedback, offering enhanced user experience and workplace safety.

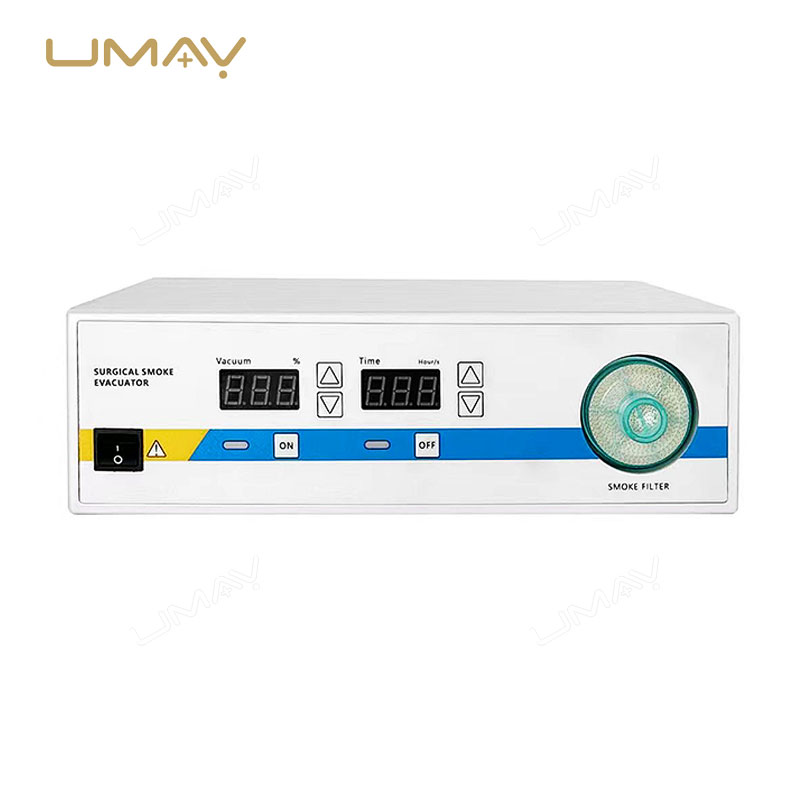

LED Display Model (Button Control):
The LED model offers reliable smoke evacuation with simple push-button operation and clear digital indicators. With adjustable suction and timer settings, it provides dependable performance in clinics and surgical rooms, maintaining a safe, smoke-free environment with easy handling and maintenance.

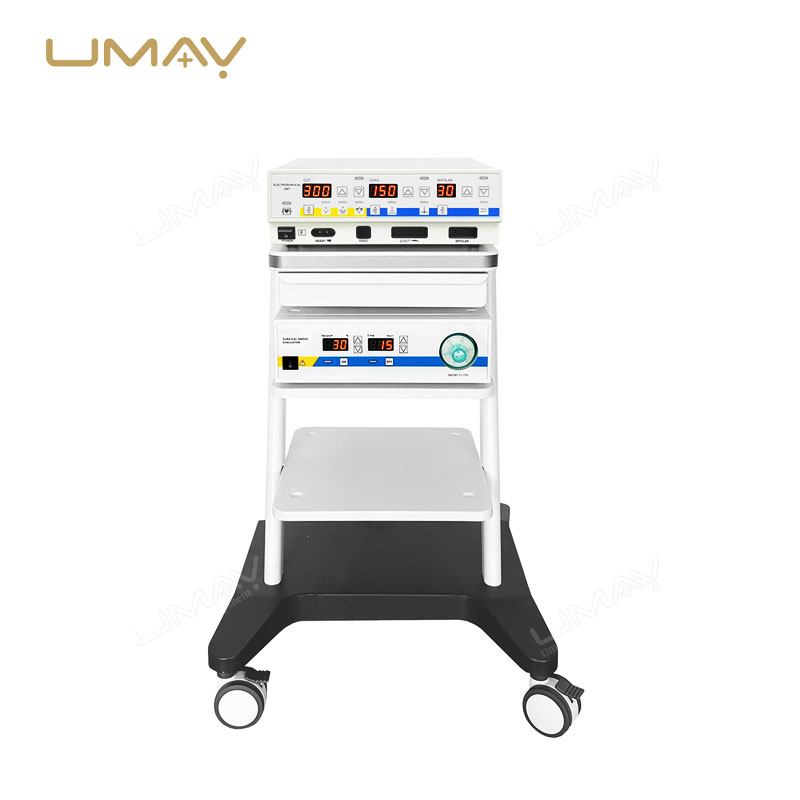

The Electrosurgical System is designed for safe and precise excision of the cervical transformation zone, including procedures involving the cervix, vagina, and cunnus. It enables simultaneous cutting and coagulation during cone excision to treat cervical intraepithelial neoplasia (CIN), ensuring minimal tissue damage and effective hemostasis. The system includes a high-efficiency smoke evacuator to eliminate surgical smoke, improving air quality and protecting medical staff. User-friendly, reliable, and clinically effective, it supports safe treatment of CIN and HPV-related conditions.
