Slit Lamp Microscope With 2 Step Magnification and LED Illumination for Ophthalmic Examination
Quick Info.
- SKU NO.: UMY-SL-001
- Device Classification: Class â…¡
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: Guangzhou City, Guangdong, China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 3300 Sets/Year
Power Source:Â Electric
Warranty: 1 year
After-sale Service: Online service and delivering spare parts
Transport Package: Carton or Wooden Cases
Material: Metal, Plastic
Origin: Guangzhou City, Guangdong, China
Instrument Classification:Â Class â…¡
Quality System Standard: ISO13485

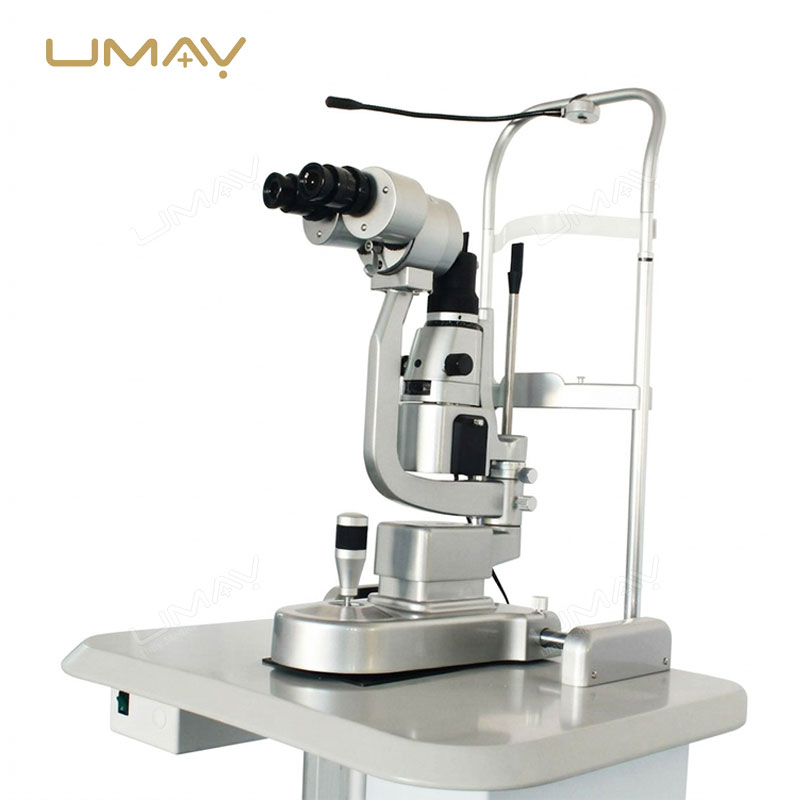

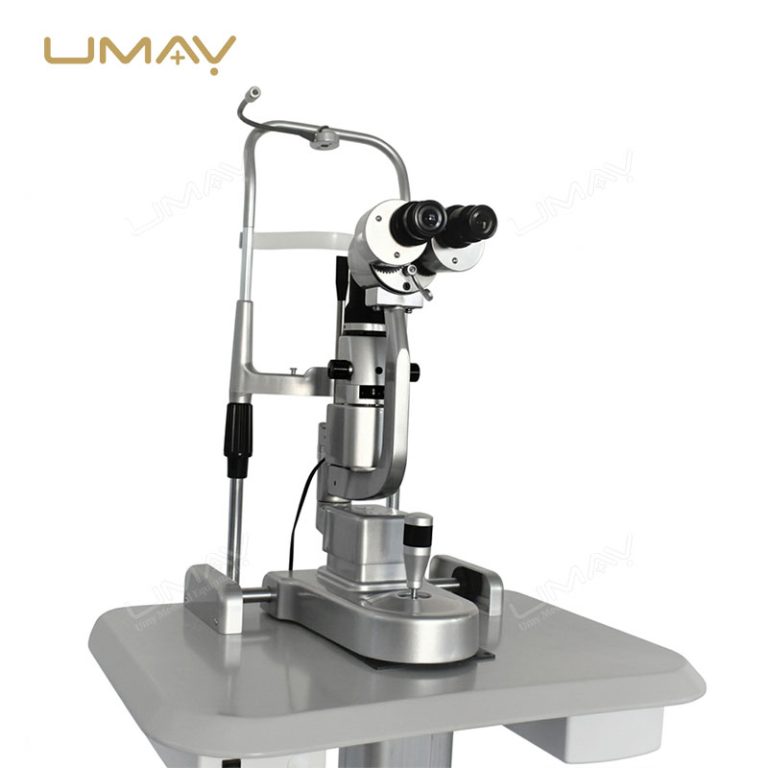

This slit lamp microscope provides precise anterior segment imaging for routine ophthalmic examinations. Its LED illumination uses a 3.3V, 10W lamp for consistent and energy-efficient output. It offers 10X and 16X magnification across Φ14 and Φ17.5 mm fields of view.
Precision illumination control for clinical workflows
Slit width adjusts from 0 to 14 mm and length from 1 to 14 mm for precise illumination control. Four filter types and 0 to 180-degree slit rotation expand diagnostic range.
Built for eye examination environments and clinical teams
Eye examination workflows benefit from 55 to 85 mm adjustable pupil distance and diopter correction beyond ±7D. Dual voltage at AC110V/60Hz and AC220V/50Hz suits clinical installations globally.
Complement your ophthalmic setup with the Portable Ophthalmic A Scan Ultrasound Biometer and Pachymeter for comprehensive diagnostic capability. This slit lamp microscope delivers reliable optical performance for accurate anterior segment diagnosis in clinical practice.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Microscope Specifications | |
| Microscope type | Binocular converging stereomicroscope |
| Eyepiece | 10X |
| Magnification | 10X, 16X |
| Field of View | Φ14, Φ17.5 (mm) |
| Adjustable Pupil Distance | 55-85mm |
| Adjustable Diopter | > ±7D |
| Slit Specifications | |
| Slit Width | 0~14mm adjustable |
| Slit Length | 1-14mm adjustable |
| Spot diameter(mm) | Φ0.3, Φ2, Φ5.5, Φ9, Φ14 |
| Slit Angle | 0-180° |
| Filter | Heat absorption, Grey, Redfree, Cobalt blue |
| Lighting bulb | 3.3V, 10W LED lamp |
| Fixed view lamp | Red LED |
| Power Specifications | |
| Input voltage | AC110V/60Hz or AC220V/50Hz |
| Input power | 80VA |

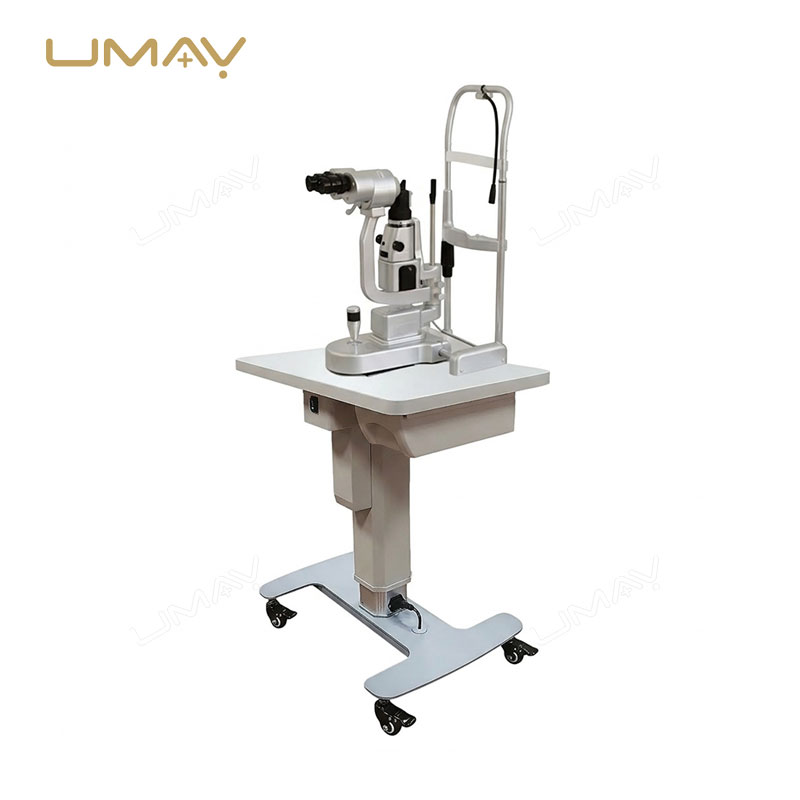

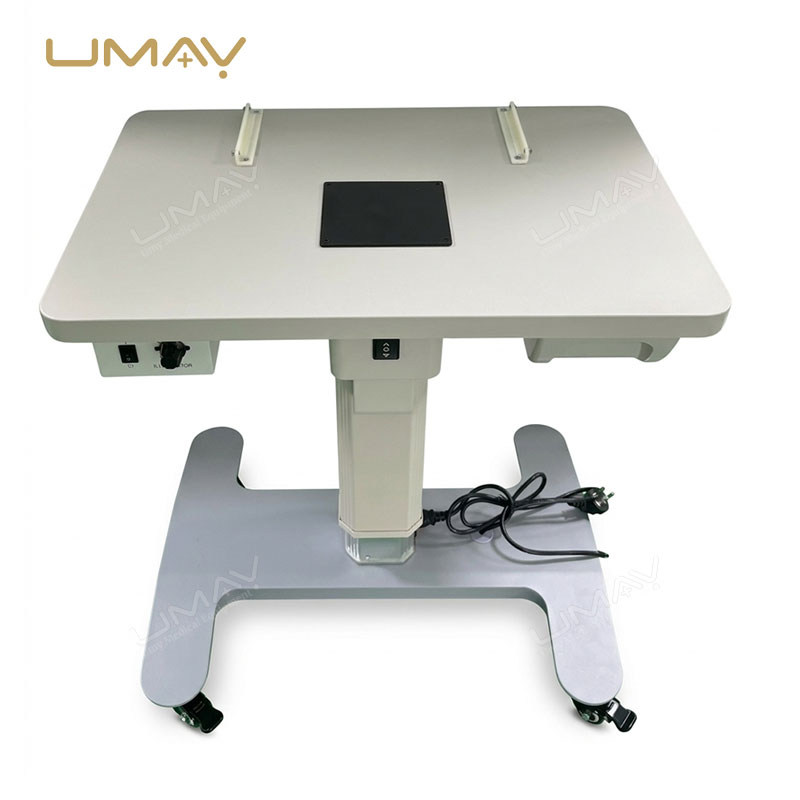

| Optional Accessories | Instrument table, Applanation tonometer, Smartphone adaptor |
Feature list for UMY-SL-001
* 2-Step Magnification (10X and 16X)
* Adjustable LED Illumination
* Full 0 to 180-Degree Slit Angle Rotation
* Multiple Diagnostic Filters (Heat Absorption, Grey, Red-Free, Cobalt Blue)
* Universal Voltage Compatibility (AC110V/60Hz and AC220V/50Hz)
Application
This slit lamp microscope is suited for general and specialist ophthalmology clinics, eye hospitals, and outpatient diagnostic centers. It is used primarily for anterior segment examinations including cornea, lens, iris, and conjunctival assessments. Ophthalmologists, optometrists, and ophthalmic nurses rely on it for routine screenings and diagnostic evaluations.
Q1: Is the slit lamp compatible with a digital imaging adaptor or camera system for image capture and documentation?
A1: Digital image documentation compatibility depends on the adaptor configuration selected, and clinicians should confirm camera mount or photo adaptor availability with the supplier.
Q2: How are the optical components protected to maintain image clarity and instrument longevity in a clinical environment?
A2: The optical elements are enclosed within a precision-engineered housing that protects against dust and minor impacts, supporting consistent performance across extended clinical use.
Q3: What complementary ophthalmic diagnostic instruments does UMY offer for clinics building a full anterior and posterior segment assessment capability?
A3: Eye care teams can explore the ophthalmic ultrasound A B scanner with built-in computer system and 12.1 inch touch screen to extend diagnostic reach beyond anterior segment examination.
