In-Demand Portable Digital Video Colposcope for Gynecological Examinations
SKU: UMY-EN-002
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
Power Source: Electric
Warranty: 1 Year
After-sale Service: Online technical support
Material: Metal, Plastic, Medical Stainless Steel
Instrument Classification: Class II
Quality System Standard: ISO13485
- SKU NO.: UMY-EN-002
- Warranty: 1 Year
- Origin: China

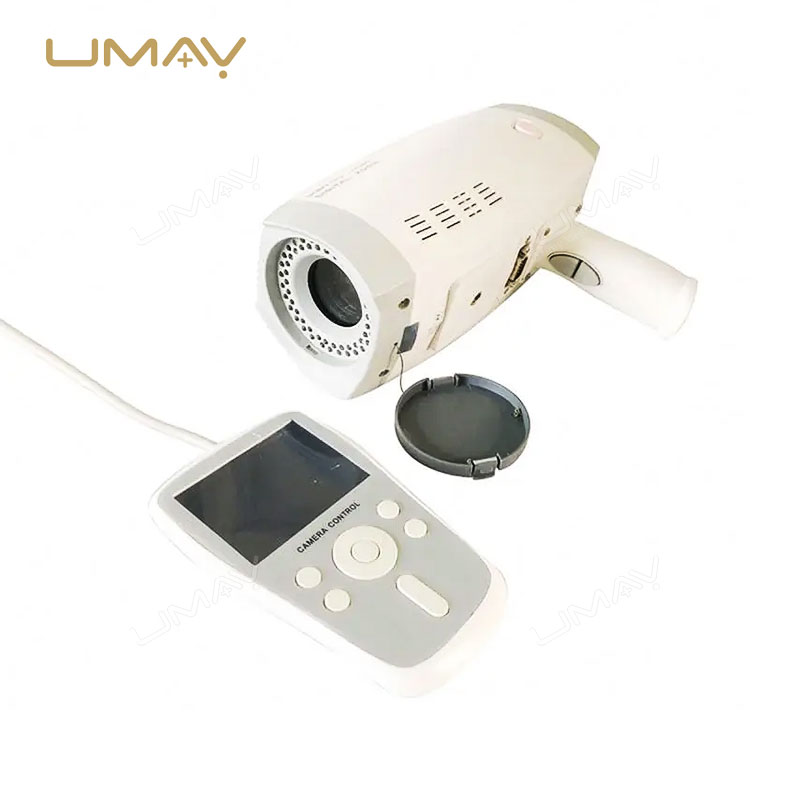

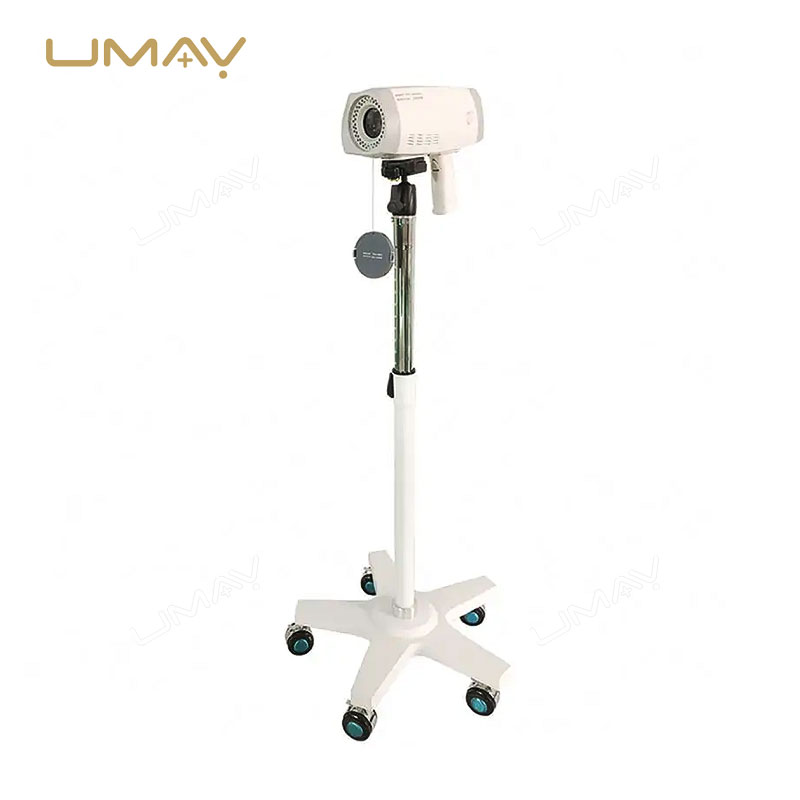

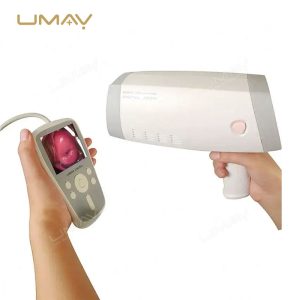

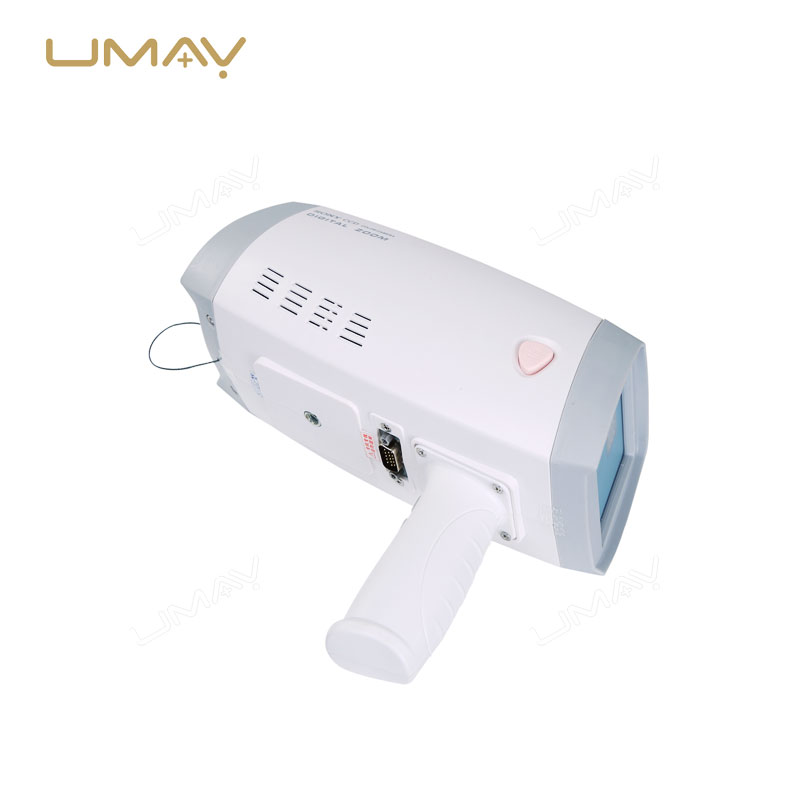

This portable digital video colposcope provides high-quality imaging for gynecological examinations, ensuring precise visualization of vaginal and cervical tissues. It is a reliable tool for detecting abnormalities such as cervical dysplasia, infections, and early signs of cervical cancer. Designed for portability and ease of use, it enhances diagnostic efficiency in clinics and hospitals. With advanced imaging capabilities, it supports effective treatment planning and patient care in gynecology.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Lens Specifications | |
| Lens Resolution | 1/4″ super HAD color CCD, 80,000 pixels |
| Lens Axial Resolution | 470 lines |
| Lens S/N | 50dB |
| Lens Focus Distance | Standard: 100–400mm, Support: 10–1000mm |
| Scan Range | 2.5mm–20mm–320mm |
| Depth of Field | 15mm–40mm / 15mm–480mm |
| Lens Zoom | 1~128 |
| Lens Focus | AF/MF |
| Lens White Balance | AWB |
| Lens Light Source | LED ring, phosphorus gallium arsenide high brightness, longevity light source (average life 100,000 hours) |
| Lens Image Output Interface | Video, S-video, PAL |
| Lens Video Output | PAL, VBS-standard 1.0Vp-p |
| Power Requirements | AC220V ±10% |
| Power Rating | 500W |
| Brightness Adjustment | Automatic electronic shutter |
| Ambient Temperature | -40°C to +50°C |
| Storage Temperature | 30~80%RH |
| Camera Control | |
| Display | 3.5” display |
| Zoom Out | Yes |
| Zoom In | Yes |
| Capture Image | Yes |
| Light Source Intensity Adjustment | Yes |
| Focus Out | Yes |
| Focus In | Yes |
| White Balance | Yes |
| Light Source Switching | Yes |
| Filtering Increase | Yes |
| Filtering Decrease | Yes |
