High Precision Cryostat Microtome for Frozen Tissue Sectioning in Clinical and Research Labs
Quick Info.
- SKU NO.: UMY-MI-001
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 2900 Sets/Year
Power Source: Electric
Warranty: 1 year
After-sale Service: Online service and delivering spare parts
Transport Package: Carton or Wooden Cases
Material: Metal, Plastic
Instrument Classification: Class Ⅱ
Quality System Standard: ISO13485

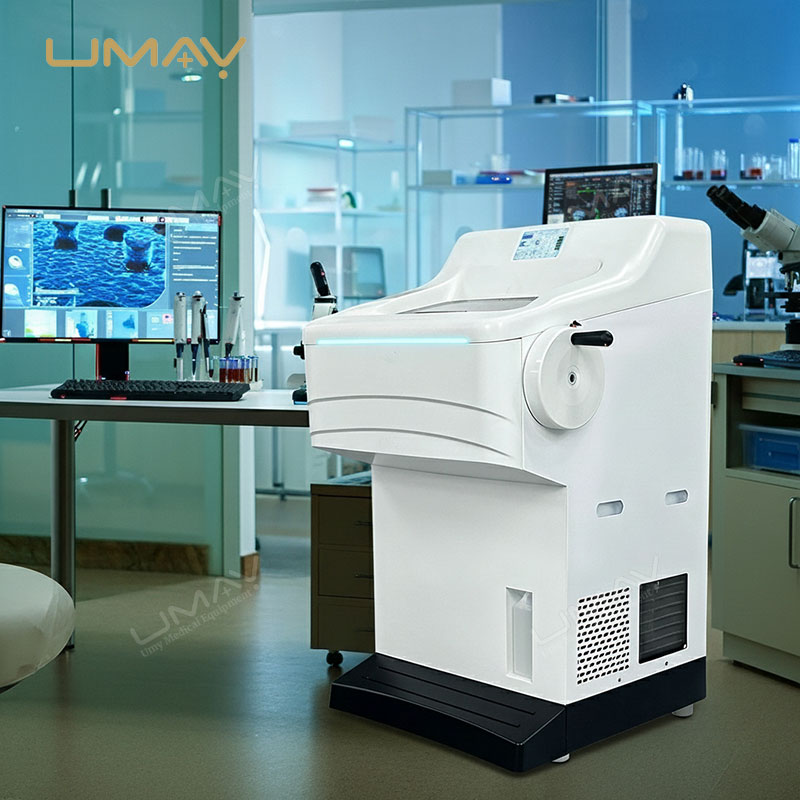

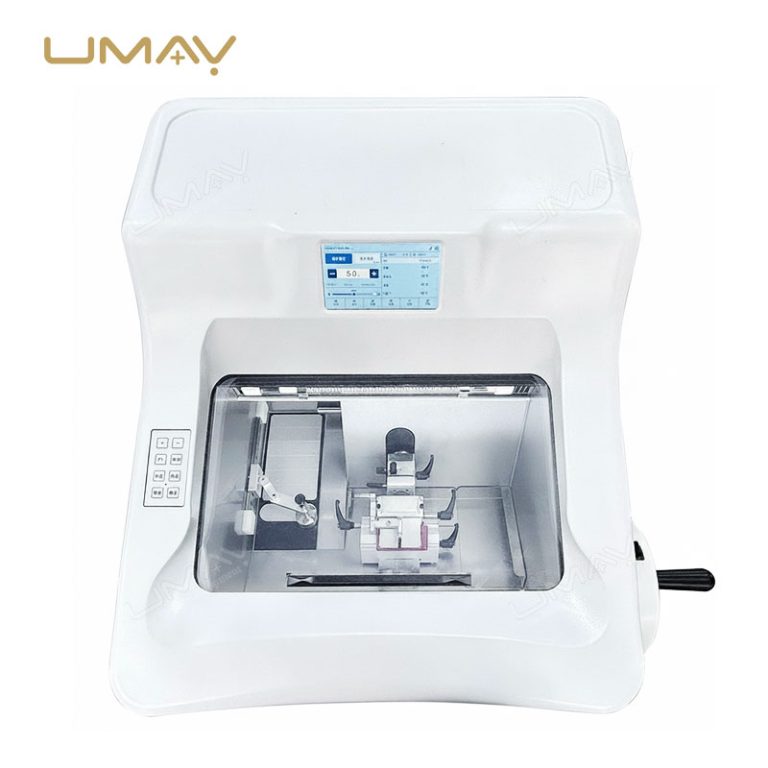

This high precision cryostat microtome delivers accurate frozen tissue sectioning for hospitals and laboratories that demand stability and consistent results. The dual imported compressors ensure reliable refrigeration while the Peltier fast freezing station allows specimens to reach temperatures as low as –60°C. Its ergonomic ABS body, 7-inch touch screen, and clear status indicator lamp make operation smooth and convenient. The knife holder with a red protective cover ensures safe handling during tissue trimming. The built-in UVC disinfection keeps the chamber clean between uses. For related laboratory tools, visit the Pathology Product Page.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Product Features | |
| ABS Customized Machine Body | Circular arc edge design for comfort and ergonomic working height |

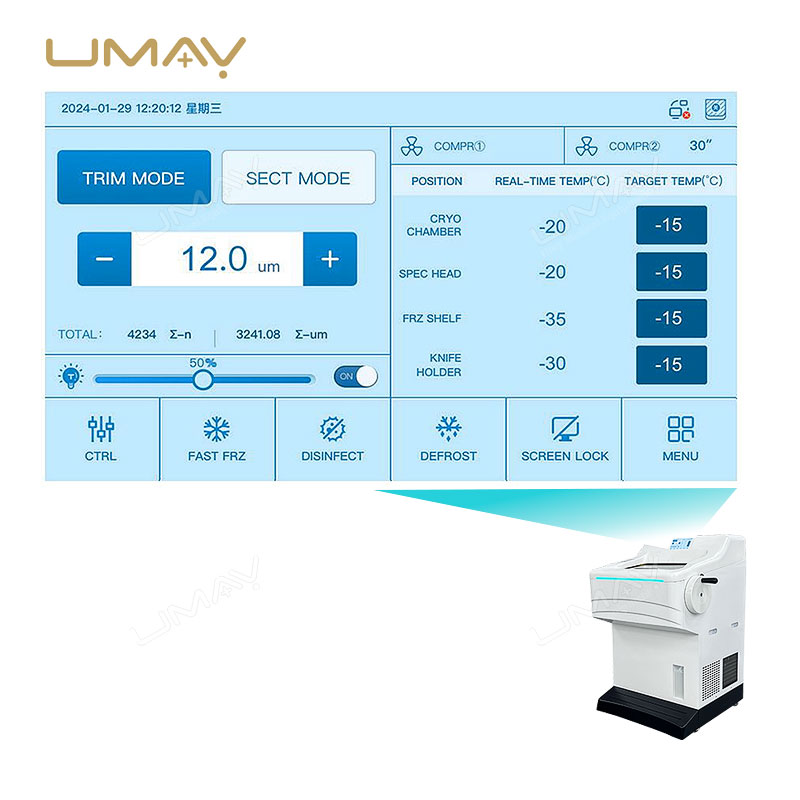

| Color Touch Screen | 7-inch touch screen, supports dormancy mode, appointment wake-up, defrosting, disinfection |
| Intelligent Status Indicator Lamp Belt | Three colors for working, dormancy, and malfunction |
| Disinfection Function | UVC disinfection, adjustable nonworking time and disinfection time |
| Freezing and Specimen Handling | |

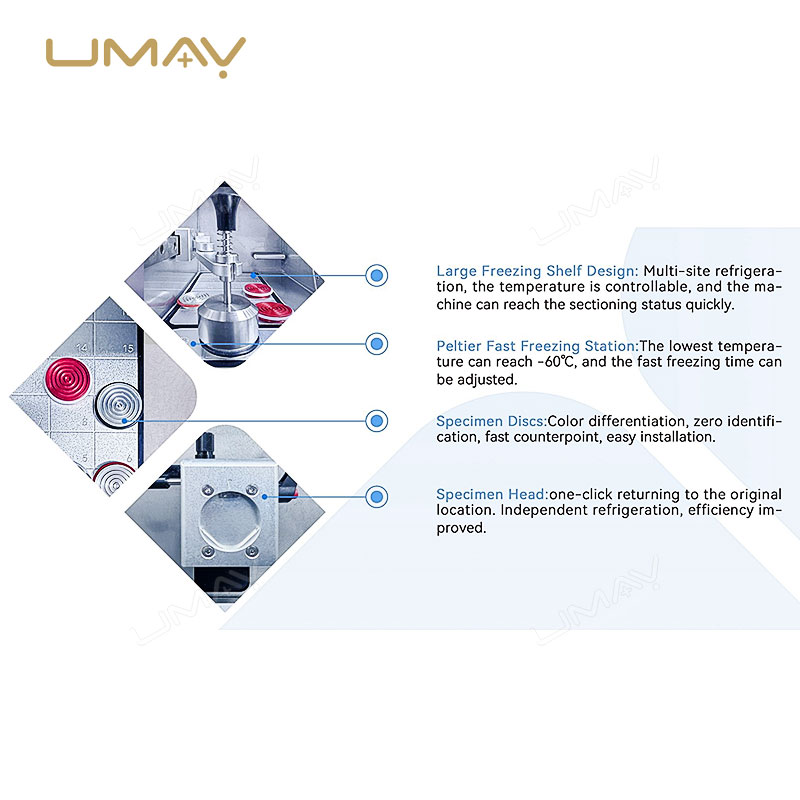

| Large Freezing Shelf Design | Temperature controllable, fast sectioning status reach |
| Peltier Fast Freezing Station | Lowest temperature reaches -60°C, adjustable fast freezing time |
| Specimen Discs | Color differentiation, easy installation and fast counterpoint |
| Specimen Head | One-click return to original location, independent refrigeration, efficient improvement |
| System Features | |
| Overall Size | 830mm (handwheel included) * 820mm * 1225mm |
| Precision Guide Rail | Reduces noise, durable |
| Refrigeration | Two imported compressors with high refrigeration capacity, ensuring high-quality sections |
| Knife/Blade Holder Base | |
| Knife/Blade Protector | Prevents scratches, ensures safe operation |
| Knife/Blade Holder Base | Multiple direction movements for accurate multi-angle sectioning |
| Knife/Blade Compatibility | Compatible with high/low profile blades for safe, easy replacement |
| Operation Features | |
| Shortcut Keyboard Operation | Trim/Sect fast switching, accurate section thickness adjustment |
| Specimen Feeding System | High precision, motor-driven feeding, adjustable fast/slow speeds |
| Specimen Head Accuracy | Visual zero mark, dual axis angle adjustment, precise control for different specimen shapes |
| Handwheel Lock | Lock at 12 o’clock for specimen replacement, 6 o’clock lock for sectioning, includes locking direction signs and sound alert |

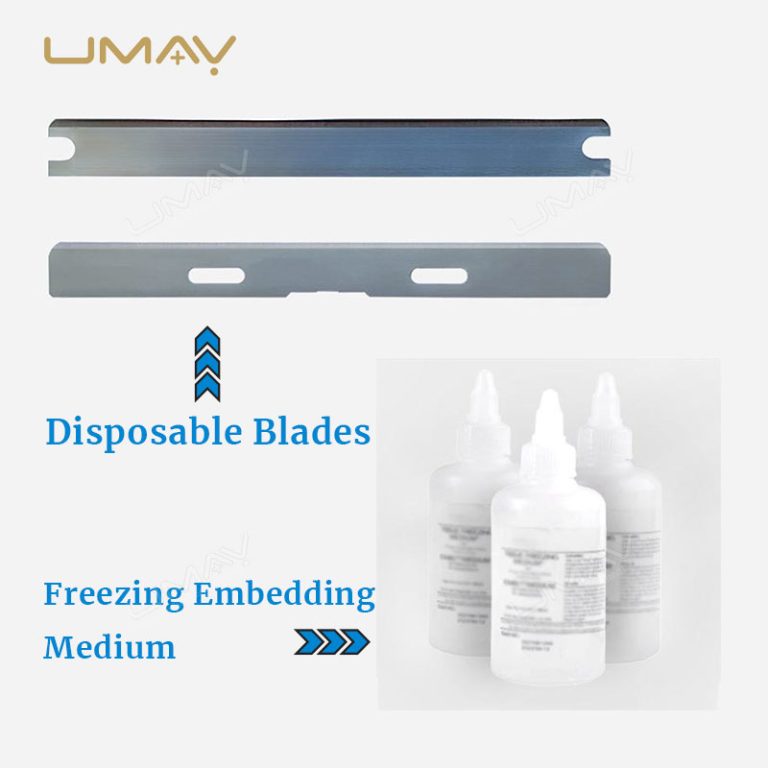

| Consumables | |
| Disposable Blades | High sharpness for quick, accurate specimen cutting, long service life |
| Freezing Embedding Medium | Volume of each bottle: 125ml |
Feature list for UMY-MI-001：
* Dual imported compressors for reliable temperature control
* Peltier fast freezing station reaching –60°C
* 7-inch color touch screen with intuitive interface
* Motor-driven specimen feeding and adjustable cutting speeds
* Secure knife holder with red safety protector
* UVC disinfection system for a cleaner chamber
* Durable ABS body for long-term laboratory use
Designed for frozen tissue sectioning in pathology, histology, and clinical laboratories. Ideal for hospitals and research institutions performing diagnostic and teaching tasks that require precise section thickness and temperature stability.
