Dental Surgical Microscope for Medical Surgery in Dental Pulp Treatment ENT and Ophthalmology Hospitals
Quick Info.
- SKU NO.: UMY-SM-001
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: Guangzhou City, Guangdong, China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 1400 Sets/Year
Power Source: Electric
Warranty: 1 year
After-sale Service: Online service and delivering spare parts
Transport Package: Carton or Wooden Cases
Material: Metal, Plastic
Instrument Classification: Class Ⅱ
Quality System Standard: ISO13485
This dental surgical microscope is designed for medical and dental surgery requiring high precision visualization.
It supports detailed observation for dental pulp disease treatment, otolaryngology procedures, and ophthalmic examinations with stable magnification control.
The apochromatic optical system and continuous zoom provide clear depth perception and accurate color reproduction during complex operations.
Integrated LED illumination with selectable filters enhances tissue contrast while maintaining comfortable lighting conditions for clinicians.
The balanced suspension arm and smooth positioning system allow precise adjustment and reduce fatigue during long surgical procedures.
It is widely used by dentists, otolaryngologists, ophthalmologists, and hospital surgical teams.
For a complete dental surgery setup, the Portable Digital Dental X-Ray Machine can be used together with to improve operating room efficiency.
This microscope delivers reliable optical performance trusted in multidisciplinary surgical environments.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Optical Design | Apochromatic optical system |
| Magnification System | |
| Zoom Ratio | Continuous zoom 0.4x – 2.5x |
| Total Magnification | 1.6x – 19x |
| Binocular Tube | |

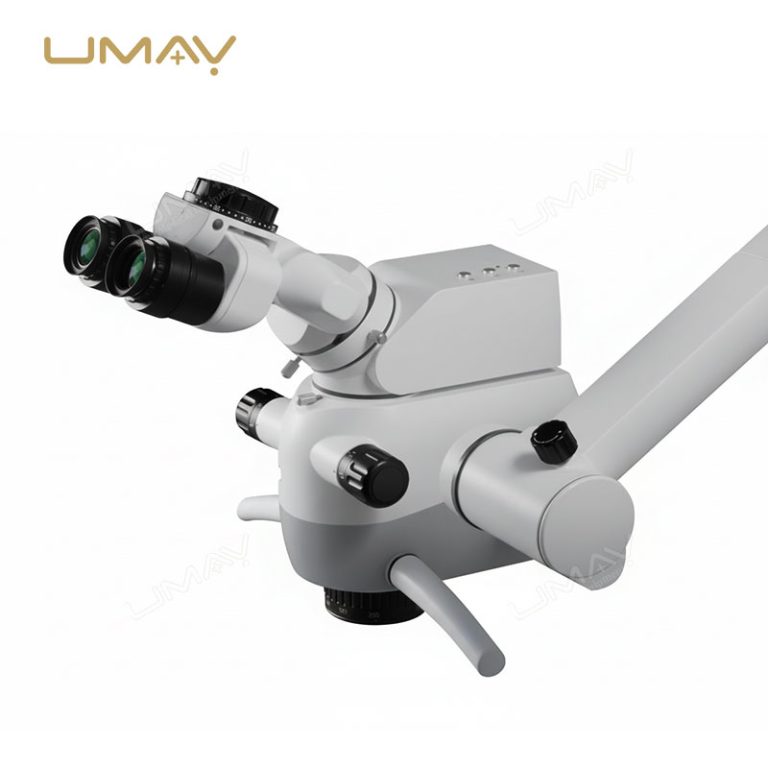

| Tube Type | 0°–180° variable angle binocular tube with interpupillary adjustment |
| Interpupillary Distance | Adjustable from 55 – 75 mm |
| Eyepiece | High eye point 12.5x wide angle eyepiece with adjustable eye cup height and diopter compensation ±7D |
| Zoom Objective System | |
| Working Distance | Variable working distance from 190 – 480 mm |
| Lighting System | |

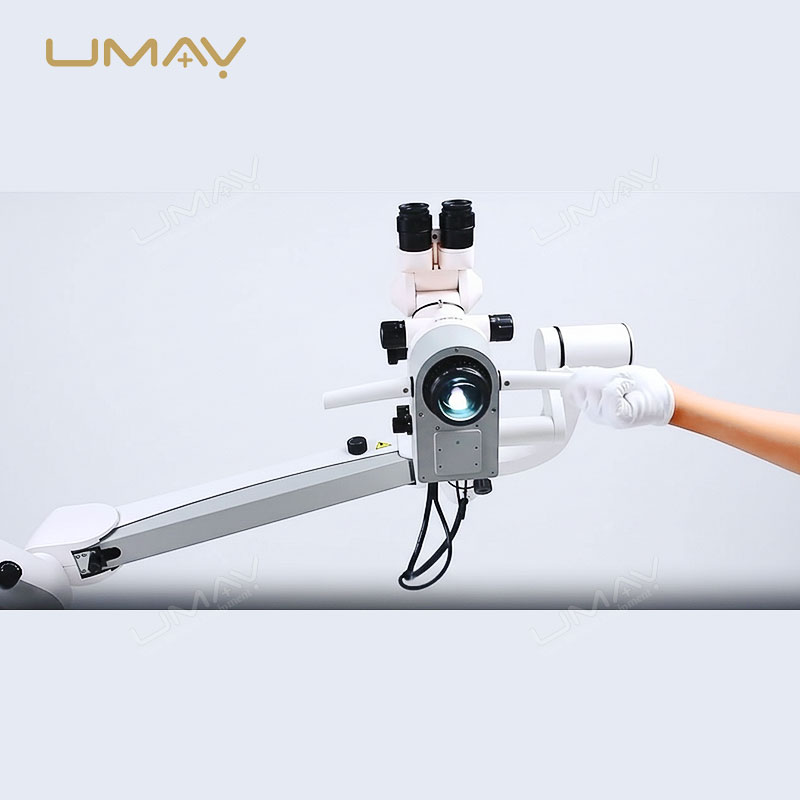

| Light Source | Integrated TruColor LED illumination with color temperature 5700 K and CRI ≥90 |
| Filters | Green filter with five spot light modes in three sizes large medium small |
| Imaging System | |
| Built-in Camera Module | 4K quad camera system with beamsplitter 45° extender and pendulum system |
| Image Output | Built-in 4K live image output 3840 x 2160 with image management software |
| Beamsplitter | Integrated beamsplitter with split ratio 2:8 or 5:5 |
| External Imaging System | |
| Camera Interface | Digital camera tube with knob style camera focus adjustment |
| Beamsplitter Design | Triple beamsplitter with 45° extender pendulum system and 2:8 or 5:5 split ratio |
| Mechanical Balance System | |
| Force Adjustment | Host balance force adjustment device and balance arm force adjustment device |
| Bracket System | |
| Swivel Arm | Swivel radius 508 mm with 330° rotation |

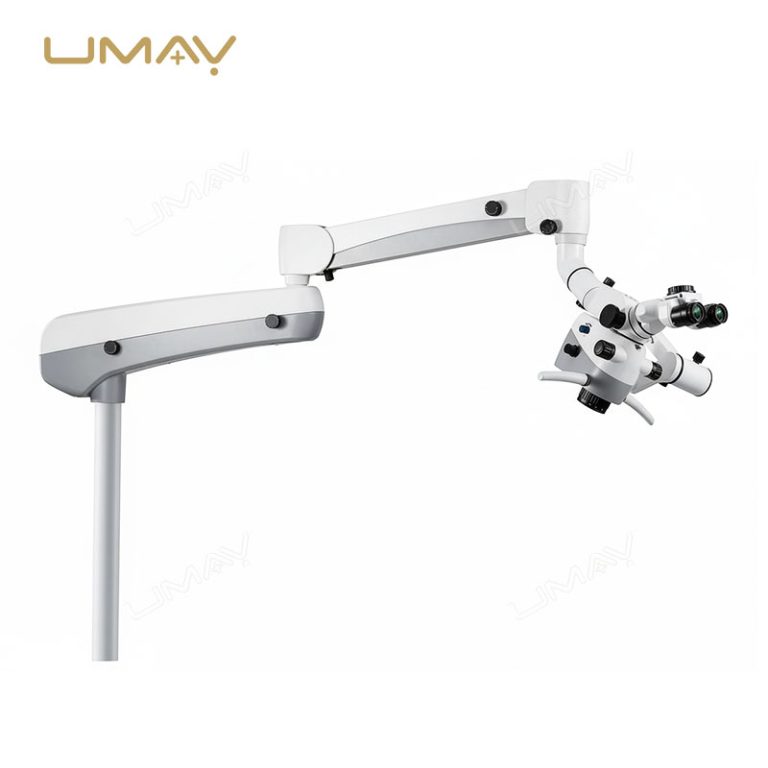

| Balance Arm | Swivel radius 735 mm with 330° rotation and vertical movement range up to 600 mm |
| Balance Wall Mount | Swivel radius 317 mm with rotation angle 325° |
| Maximum Arm Span | 1743 mm |
| Base System | Integrated base with 4 inch silent medical casters base size 590 x 590 mm |
| Monitor System | |
| Monitor Bracket | Integrated monitor bracket |

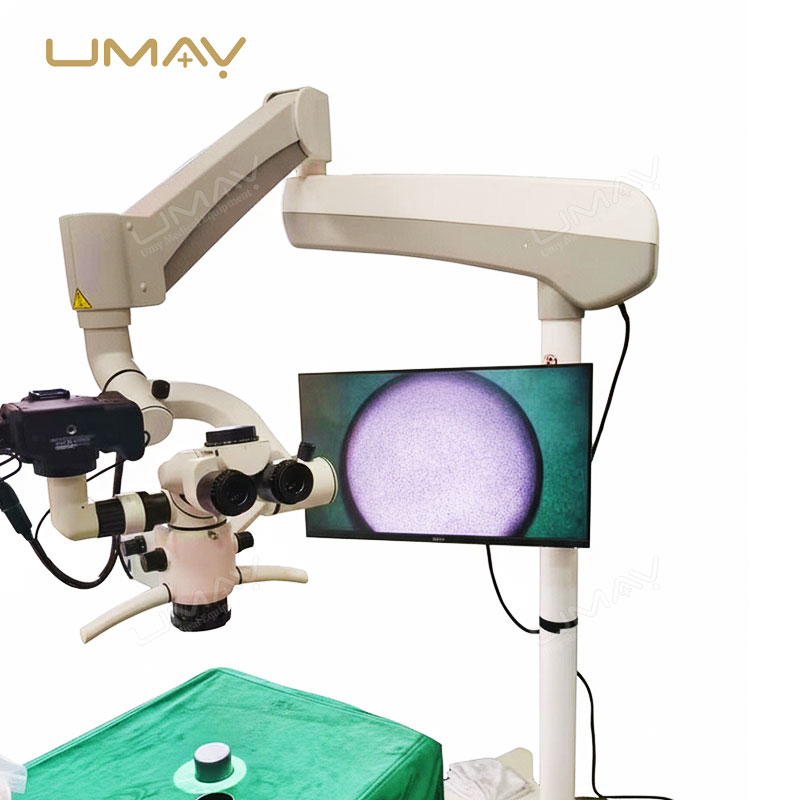

| Monitor Options | 24 inch HD monitor or 27 inch 4K UHD monitor |
| Accessories | |
| Camera Options | Optional camera brands Canon or Sony |
| Power Supply | Direct camera power supply |

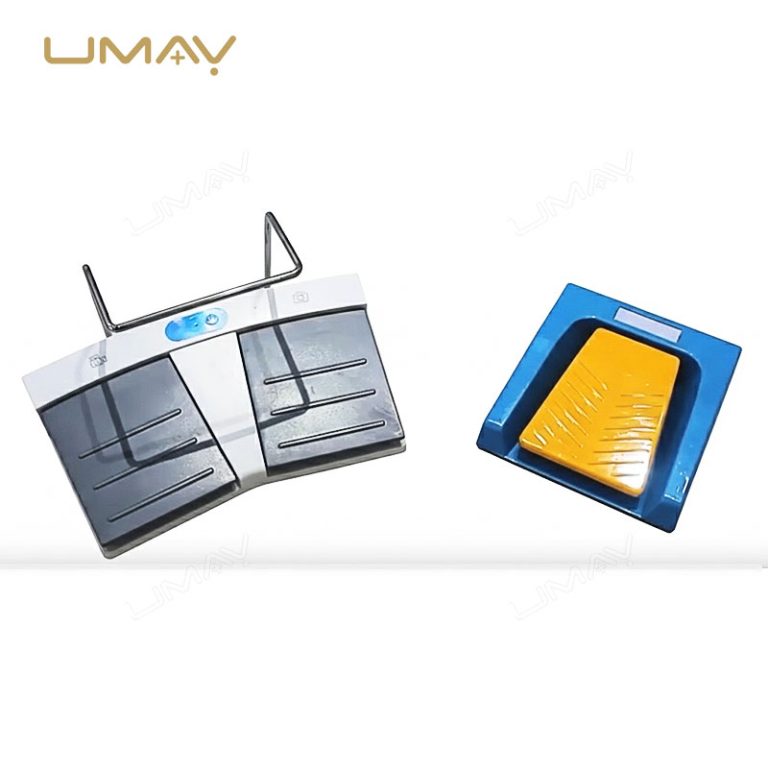

| Foot Control | 4K wireless foot pedal assembly |
| Imaging Accessories | Wireless photography system |
| Protection | Objective lens protective cover |
Feature list for UMY-SM-001
* Apochromatic optical system with continuous zoom
* High clarity magnification for dental and surgical use
* LED illumination with clinical filter modes
* Stable balance arm for precise positioning
* Suitable for dental pulp and microsurgical procedures
Application
Designed for hospitals, dental clinics, and specialty surgical departments, this microscope is used in dental pulp treatment, ENT surgery, ophthalmology, and precision medical procedures requiring enhanced visualization.
