Cardiac Defibrillator with Biphasic Technology and Energy Step from 0 to 360 Joules
Quick Info.
- SKU NO.: UMY-ED-001
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 3200 Sets/Year
Warranty: 1 year
After-sale Service: Online service and delivering spare parts
Transport Package: Carton or Wooden Cases
Material: Metal, Plastic
Instrument Classification: Class Ⅱ
Quality System Standard: ISO13485

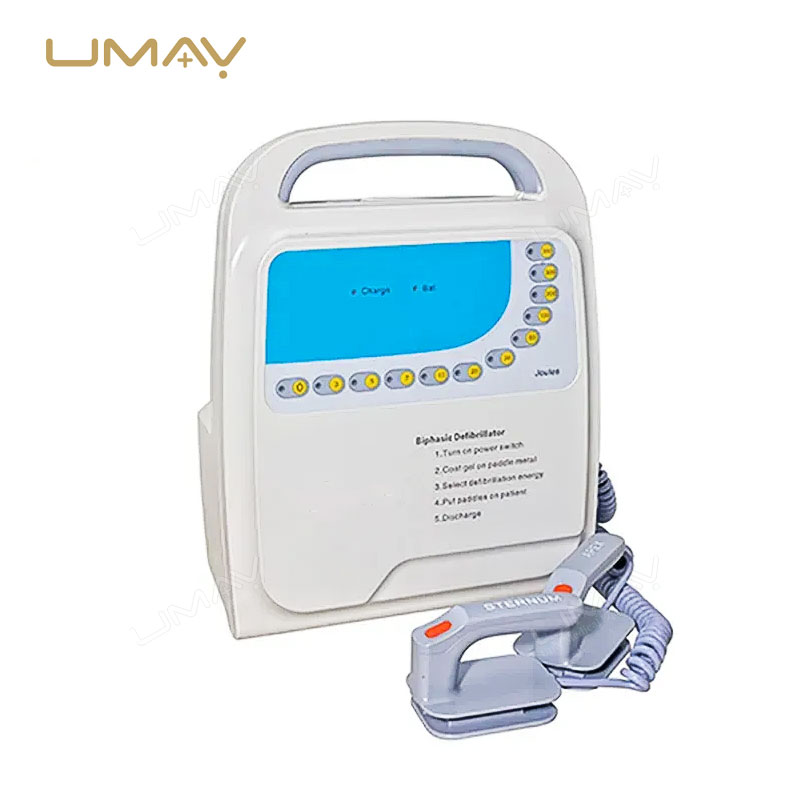

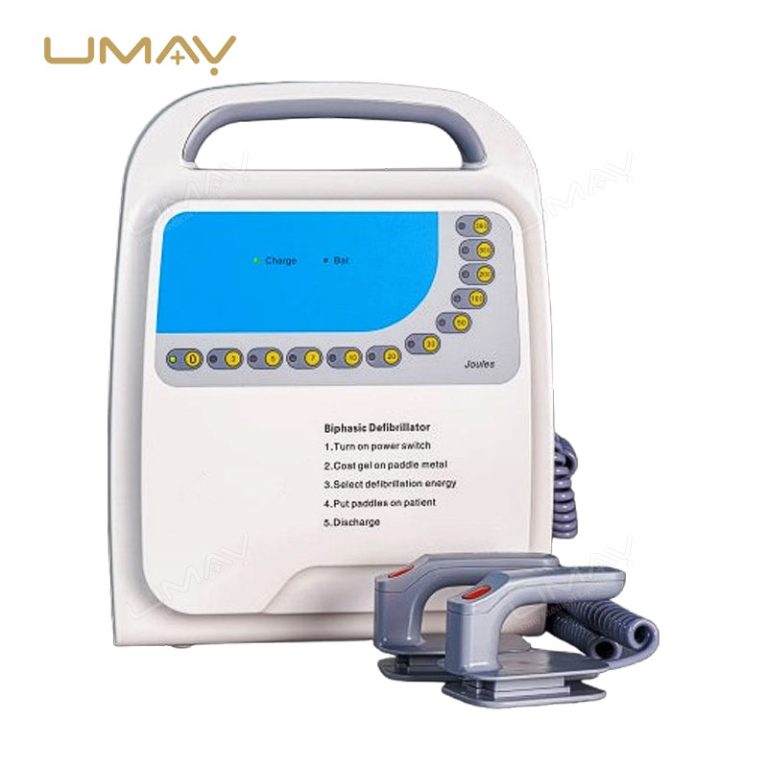

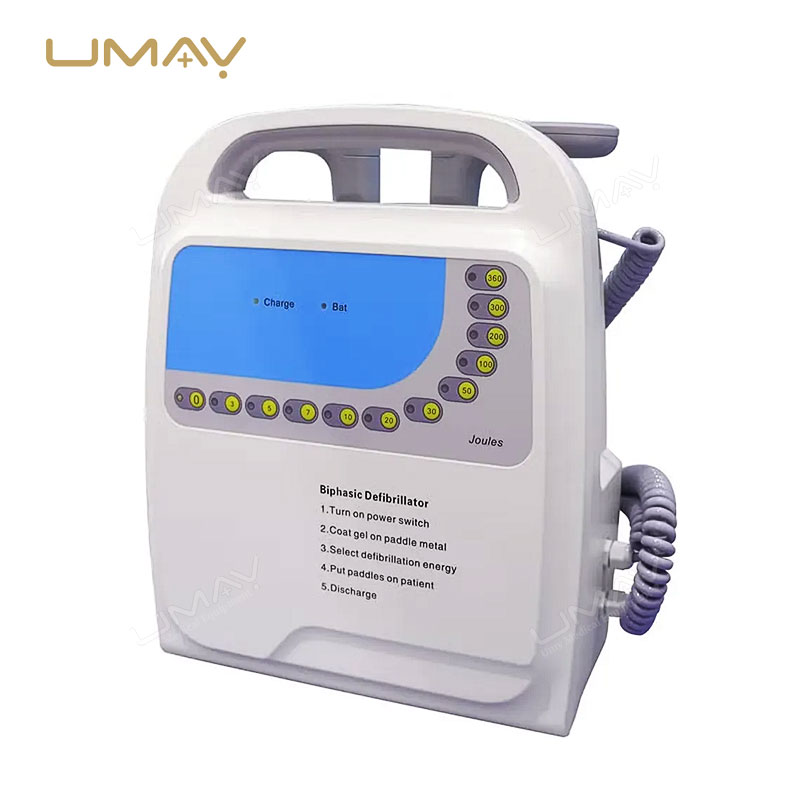

This Cardiac Defibrillator is designed for emergency medical care, providing asynchronous external defibrillation with biphasic technology. Offering an energy step range from 0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, to 360 Joules, it ensures precise and effective shock delivery. The device’s portable and user-friendly design makes it ideal for hospitals and field use, and the clear audible and visible reminders provide guidance during operation. Its robust battery system supports up to 35 shocks at 360 Joules, making it a reliable tool for saving lives in critical situations. For more related information on defibrillators, explore our full range of medical devices.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Defibrillator | |
| Waveform | Biphasic |
| Defibrillator Type | Manual External Asynchronous Defibrillation |
| Charge Time | Less than 10 seconds to 360 Joules |
| Charge Prompt Type | Voice and visual prompts |
| Energy Selection | Selectable at 0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 joules |

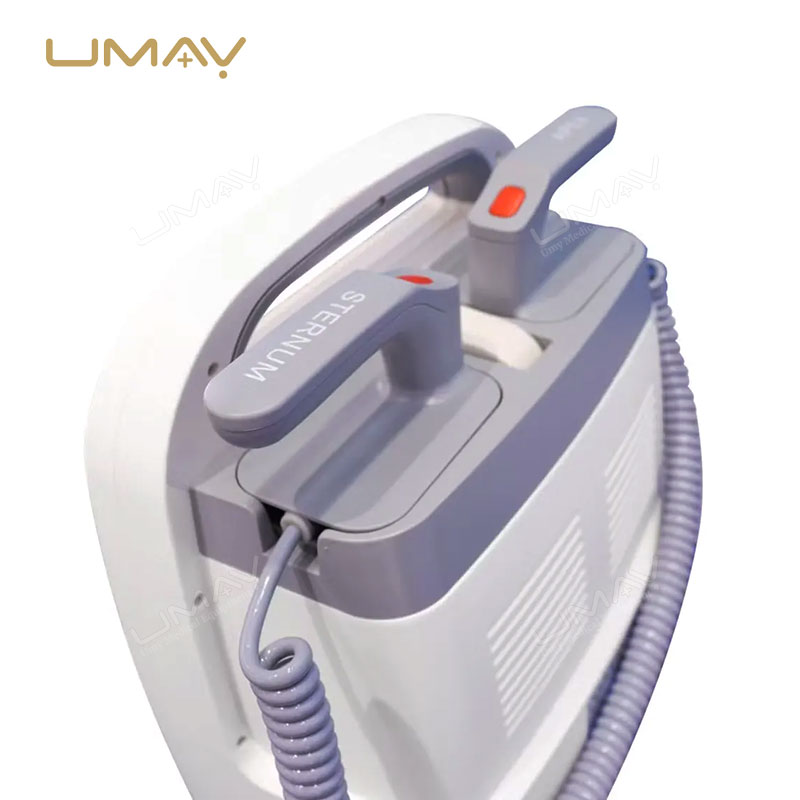

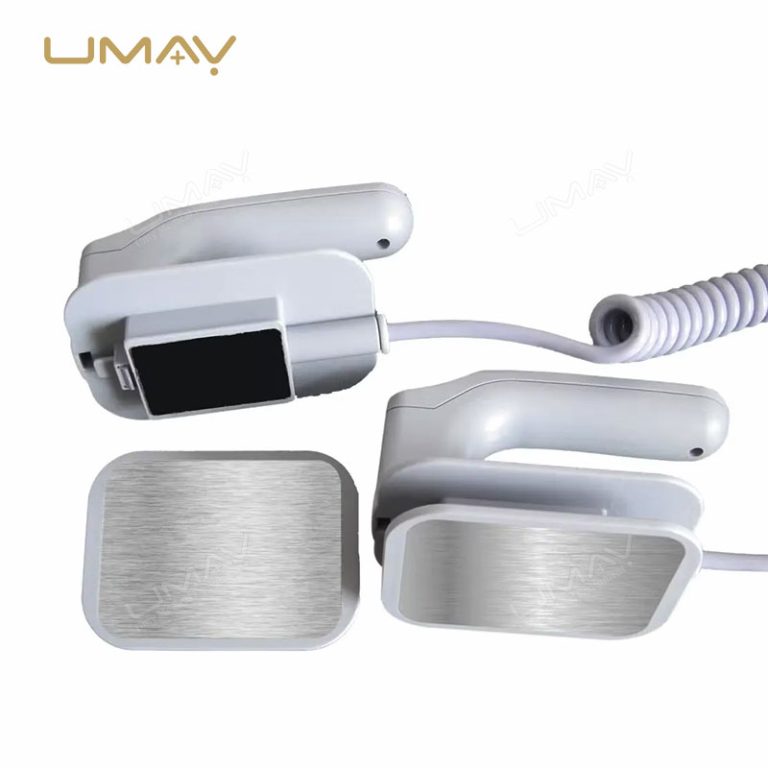

| Standard Adult/Pediatric Paddles | Reusable external adult paddles (pediatric paddles integrated) |
| Battery Description | |
| Standard Type | Sealed lead battery FP1223C 12Vdc 2300mAh X2 |
| Standard Capacity | Up to 40 full-energy discharges |
| Low Battery Indicator | Bat Indicator on the panel of the machine |
| Power | |
| AC-DC Dual-use | Use the batteries, AC100V~240V, 50/60Hz |
| Vehicle Voltage | DC 12V |
| Main Unit | |
| Portable | Yes |
| Maximum Power | 600W |
| Dimensions | L330×W220×H410 |
| Weight | 7.5kg |
Feature list for UMY-ED-001
* Biphasic technology for efficient defibrillation
* Energy step range from 0 to 360 Joules
* Reusable external adult paddles (pediatric paddles integrated)
* Charging time: less than 9 seconds at 360J and less than 2 seconds at 100J
* Portable and user-friendly design
* Sealed rechargeable 12V lead-acid battery with optional 11.1V Li-ion battery
Designed for emergency defibrillation in clinical settings, including hospitals and ambulances. Ideal for use in cardiac arrest cases, providing high-efficiency shock delivery for adults and pediatric patients with integrated pediatric paddles.
