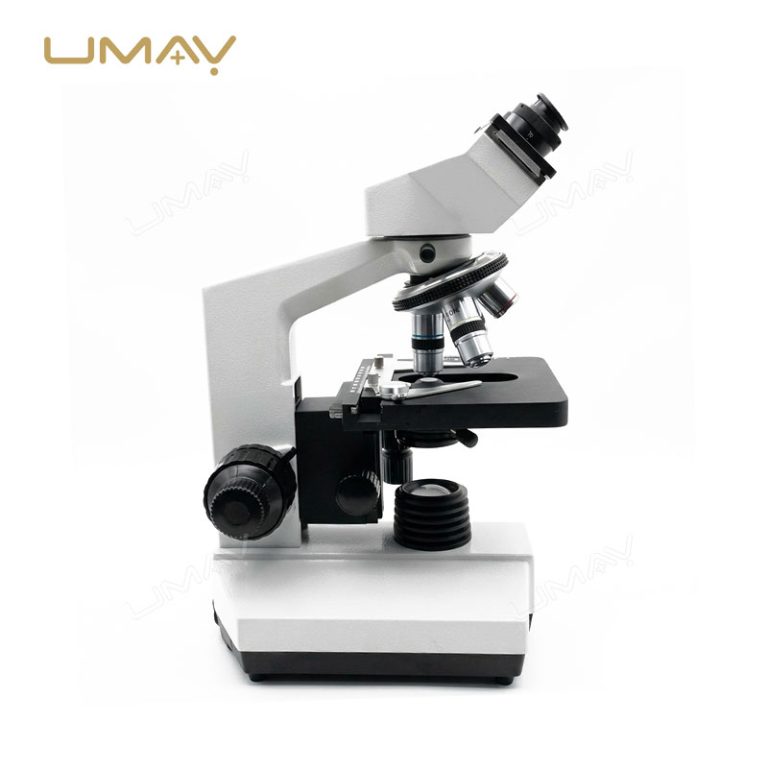

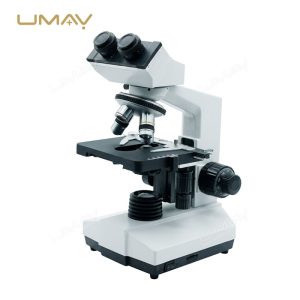

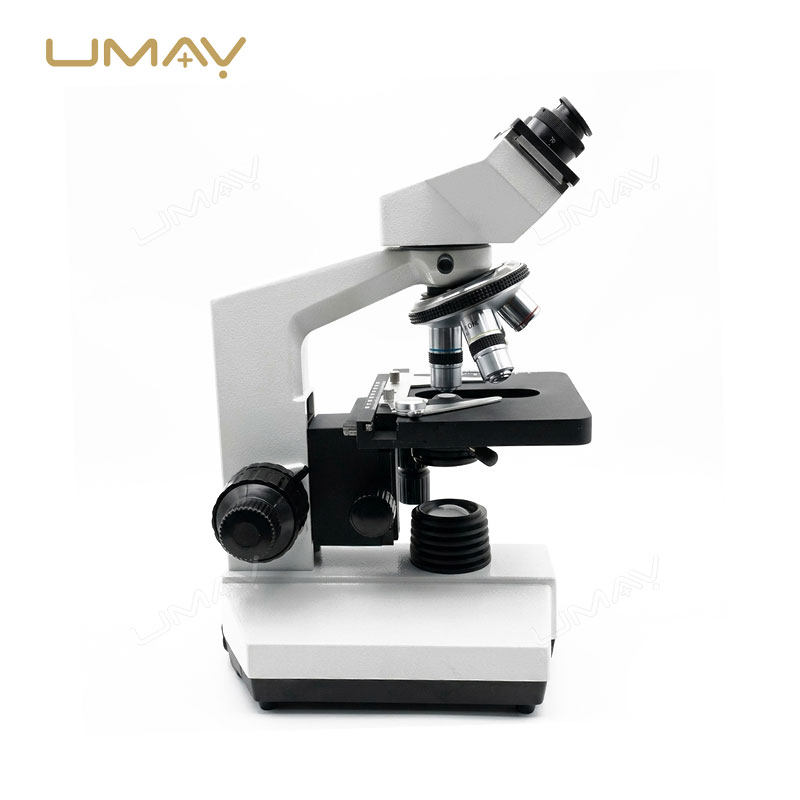

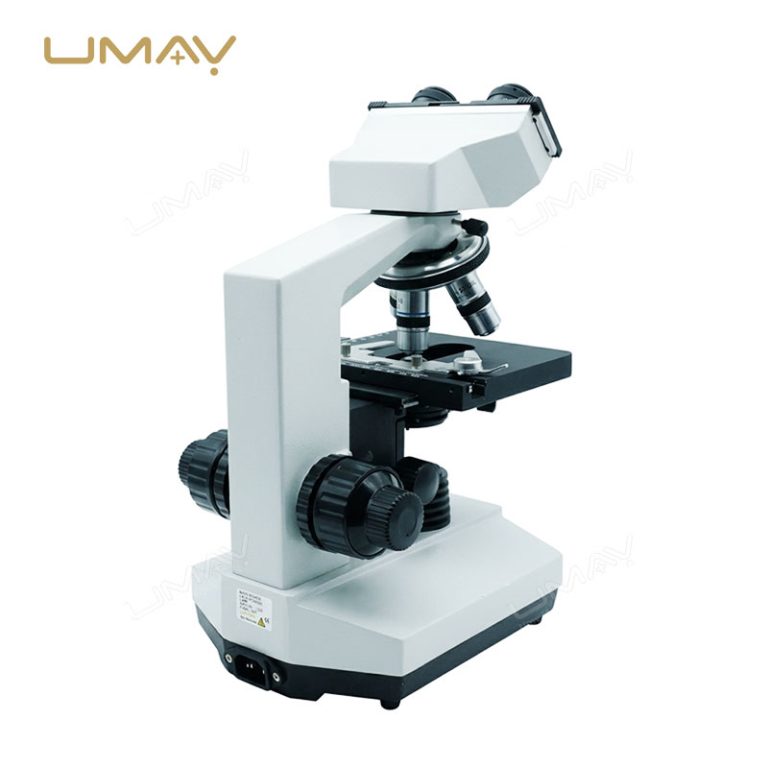

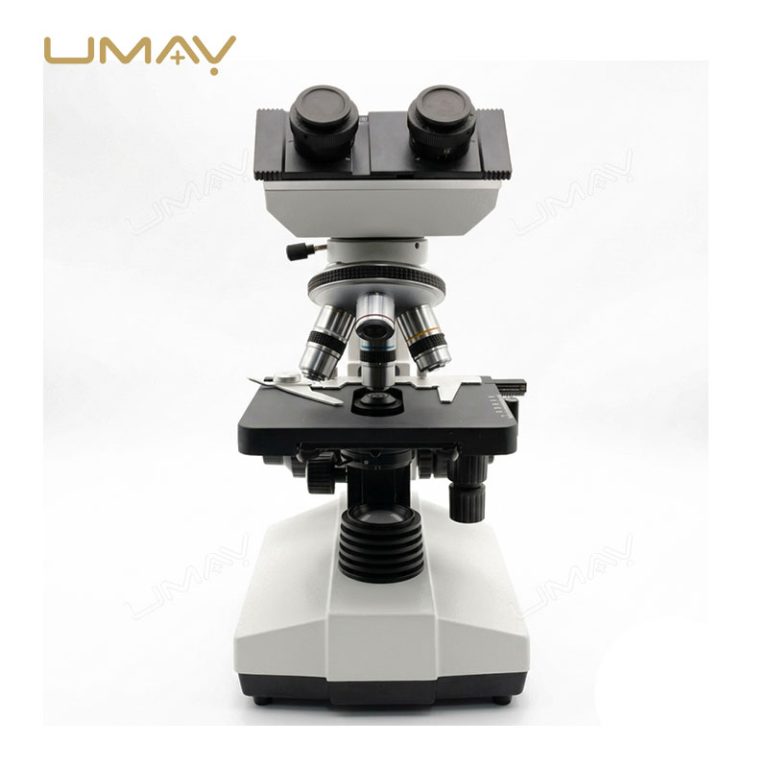

Binocular Biological Microscope With Achromatic Objectives And Adjustable Halogen Illumination
Quick Info.
- SKU NO.: UMY-MS-001
- Device Classification: Class â…¡
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: Guangzhou City, Guangdong, China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 2700 Sets/Year
Power Source:Â Electric
Warranty: 1 year
After-sale Service: Online service and delivering spare parts
Transport Package: Carton or Wooden Cases
Material: Metal, Plastic
Origin: Guangzhou City, Guangdong, China
Instrument Classification:Â Class â…¡
Quality System Standard: ISO13485
Precision in every detail, built for the lab.
This biological microscope delivers reliable high-resolution imaging for clinical examination, bacterioscopy, and cytoscopy across hospitals, universities, and research institutes. Fitted with high-quality achromatic objectives spanning 4X to 100X, it achieves total magnification from 40X up to 1600X with the optional WF16X wide-field eyepiece. The wide-field eyepiece design ensures a generous field of view with minimal edge distortion at every magnification step.
Stable platform, smooth control.
The coaxial coarse and fine focus system offers a 30mm focusing range with a 0.002mm interval, allowing precise depth adjustment on every specimen. A double-layer mechanical stage with a low-position coaxial knob ensures ergonomic, fatigue-free operation during extended sessions.
Built for educators and clinicians alike.
Laboratory diagnostics professionals and teaching faculty benefit from the flexible binocular or trinocular head configurations, 45-degree inclined viewing angle, and adjustable interpupillary distance. The 6V 20W halogen lamp with adjustable brightness, or optional 1W LED, maintains consistent illumination across all objective selections.
For related ENT imaging tools, explore the Slit Lamp Microscope With 2 Step Magnification And Led Illumination For Ophthalmic Examination available on Umy Medical. This biological microscope is a dependable instrument trusted by clinicians and researchers who demand clear, accurate results every time.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Optical System | |
| Objective Type | Achromatic objectives |
| Available Objectives | 4X (NA 0.10), 10X (NA 0.25), 40X (NA 0.65, spring), 100X (NA 1.25, spring, oil immersion) |
| Eyepiece | WF10X (ø18mm), WF16X (≥ø11mm) |
| Total Magnification | 40X to 1600X |
| Mechanical Tube Length | 160mm |
| Object to Primary Image Distance | 195mm |
| Condenser | |
| Condenser Type | ABBE condenser, NA 1.25 with iris diaphragm (Kohler illumination optional) |
| Focusing System | |
| Focus Adjustment | Coaxial coarse and fine adjustment |
| Focal Range | 30mm |
| Focusing Interval | 0.002mm |
| Stage | |
| Stage Size | 140 x 155mm |
| Moving Range | 75 x 45mm |
| Illumination | |
| Light Source | 6V 20W halogen lamp or 1W LED |
| Brightness Control | Adjustable |
| Viewing Head | |
| Head Options | Monocular, binocular (sliding 45°), trinocular (sliding or compensation free) |
| Head Inclination | 45° (sliding style) or 30° (compensation free) |
| Power | |
| AC Input | 220V ±22V, 50Hz or 110V |
| DC Output | 6V |
| Physical Specifications | |
| Net Weight | 6 kg |
| Dimensions (L x W x H) | 185 x 270 x 400mm (including binocular head) |
Feature list for UMY-MS-001
* High-Quality Achromatic Objectives 4X 10X 40X 100X
* Coaxial Coarse And Fine Focus With 0.002mm Interval
* Double Layer Mechanical Stage With Low Position Coaxial Knob
* Adjustable Halogen Or LED Illumination With Brightness Control
* Binocular Trinocular And Monocular Head Options Available
Application
This biological microscope is suited to clinical laboratories, university teaching facilities, medical and health establishments, and research institutes. It is used for bacterioscopy, cytoscopy, hematology slide review, pathology teaching demonstrations, and routine clinical specimen examination. The range of head configurations and magnification options makes it equally effective for individual diagnostic work and group instruction environments.
Q1: Can this microscope be connected to a camera or imaging system for documentation purposes?
A1: Yes, a camera or video attachment can be inserted into the trinocular head tube and adjusted until a sharp, clear image is achieved.
Q2: How is the illumination system designed to protect the optical components during extended use?
A2: The brightness control allows gradual adjustment from dark to bright, and users should reduce brightness before powering off to protect the lamp and optics.
Q3: What support options are available for maintenance or servicing of this microscope after purchase?
A3: For technical servicing needs, it is recommended to consult a specialist repair facility, and you can explore our broader pathology equipment range on Umy for related accessories and support resources.
