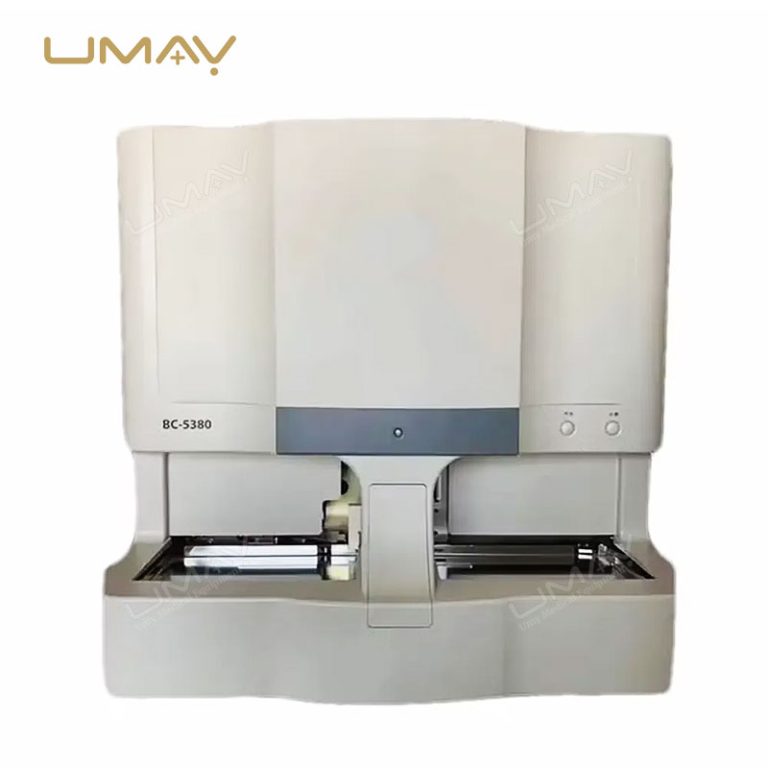

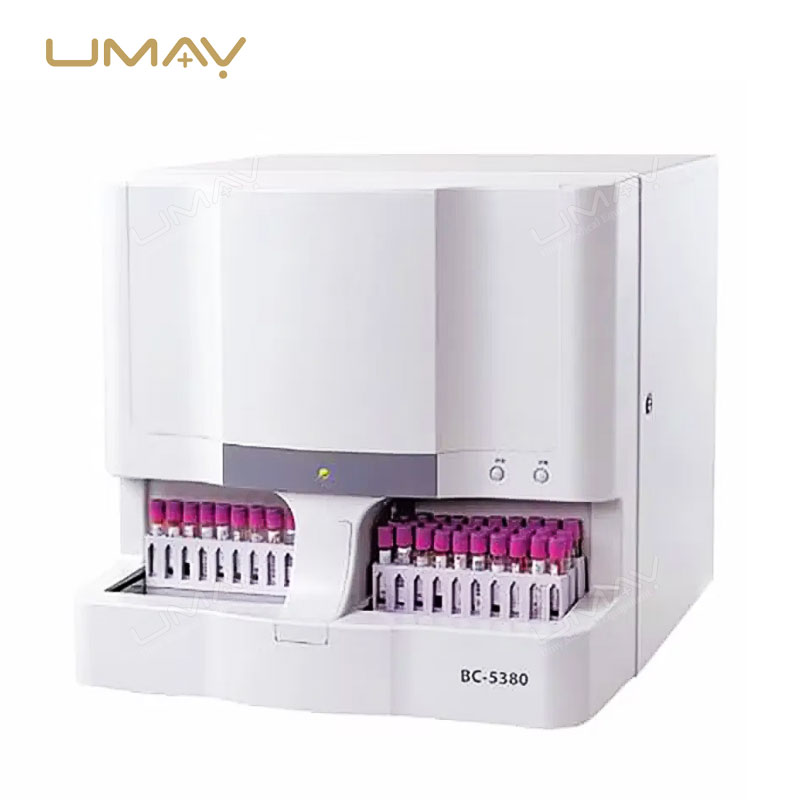

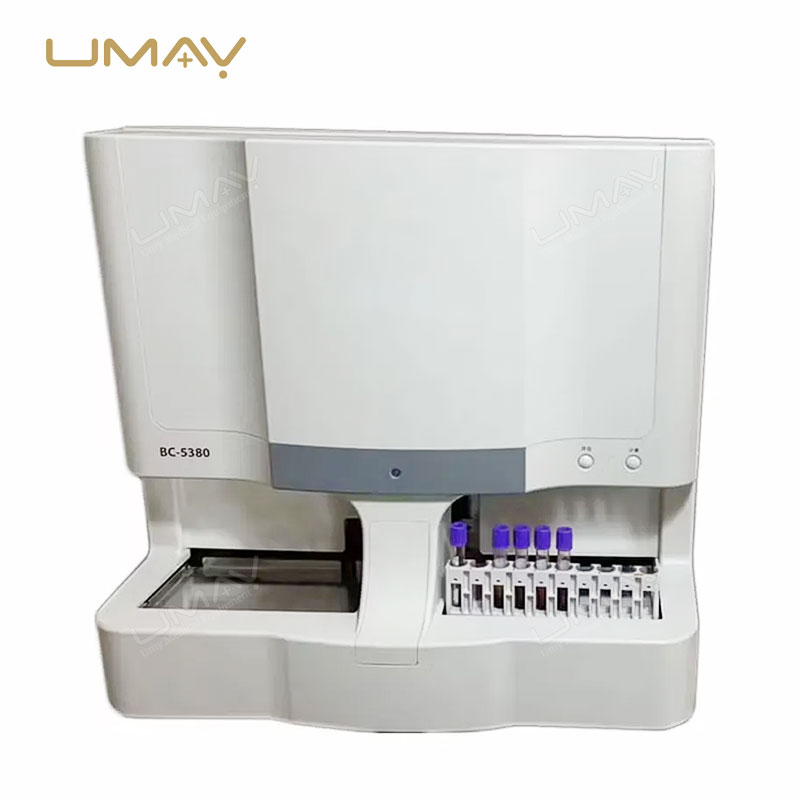

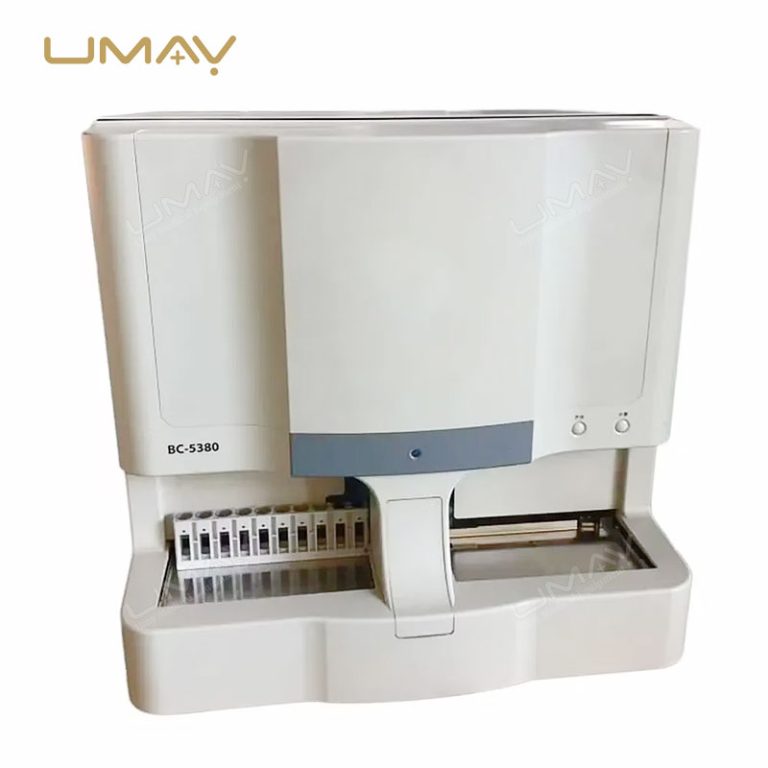

Automatic Hematology Analyzer with CRP Measurement and Five Category Differential Diagnosis
Quick Info.
- SKU NO.: UMY-LA-001
- Warranty: 1 Year
- Origin: China
This hematology analyzer BC-5380CRP integrates semiconductor laser and flow cytometry technology with constant-temperature cytochemical staining to deliver precise five-category differential diagnosis. It combines impedance-based erythrocyte and platelet detection with latex-enhanced immunoturbidimetry for accurate CRP measurement. Requiring minimal blood volume, it is ideal for outpatient, pediatric, and emergency testing, supported by automatic blood cell volume correction. With a speed of 60 tests per hour, HL7 connectivity, and barcode scanning, it ensures efficiency and traceability. Environmentally friendly cyanide-free reagents enhance safety in laboratory use. For hospitals seeking broader diagnostic capabilities, the Consona N Series N8 N9 Color Doppler Ultrasound Systems complement hematology analysis in comprehensive care settings.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Technical Specifications | |
| Testing Principle | Semiconductor laser and flow cytometry technology combined with constant-temperature cytochemical staining; impedance method for erythrocyte and platelet detection |
| Parameters | 28 report parameters, 12 research parameters, 3 histograms, 3 two-dimensional scatter plots, 1 three-dimensional scatter plot |
| Reagents | Cyanide-free reagents for hemoglobin; latex-enhanced immunoturbidimetry for CRP |
| Linear Range | CRP 0.2-320 mg/L |
| Modes | CBC, CBC+DIFF, CBC+DIFF+CRP, CBC+CRP, CRP |
| Sample Dosage (Whole Blood) | CBC+DIFF 20µl, CBC+DIFF+CRP 35µl, CRP 20µl |
| Sample Dosage (Pre-dilution) | CBC+DIFF 20µl, CBC+DIFF+CRP 20µl, CRP 20µl |
| Speed | Full blood ≥60/Hour, Peripheral whole blood model ≥60/Hour |
| Application & Maintenance | |
| Measurement Mode | Whole blood, pre-diluted whole blood, peripheral whole blood |

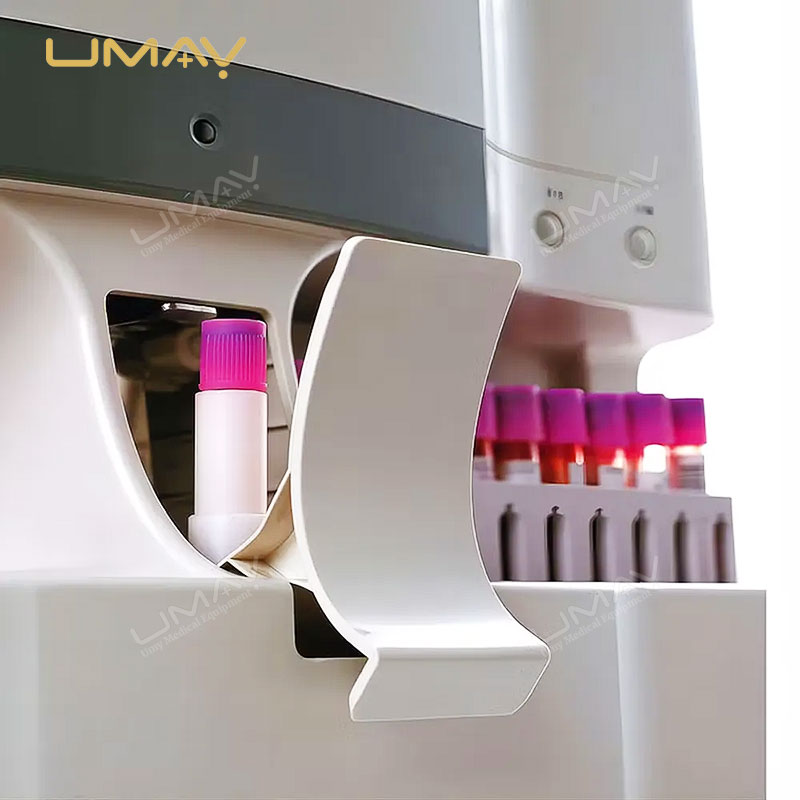

| Injection Mode | Closed puncture injection and automatic injection |
| Quality Control Methods | L-J quality control, X-B floating mean method, and other quality control methods |
| Networking Function | Support HL7 protocol (bidirectional data transmission) |
| Maintenance | Automatic sleep function; can be set to automatically maintain procedures |
| Print Output | Multiple report printing formats and support custom settings |
| Sample Barcode | Optional built-in barcode scanner or handheld barcode scanner |
| Result Storage | Standard computer, unlimited storage, including Chinese patient information, scatter plots, and histograms |
| Physical Specifications | |
| Power Requirements | 100-240V±10%, 50-60Hz±1Hz |
| Operating Environment | Temperature 10°C~40°C; humidity 10-90% |
| Size (mm) | 570×560×700 |
| Weight (Kg) Main Unit | ≤65 |
