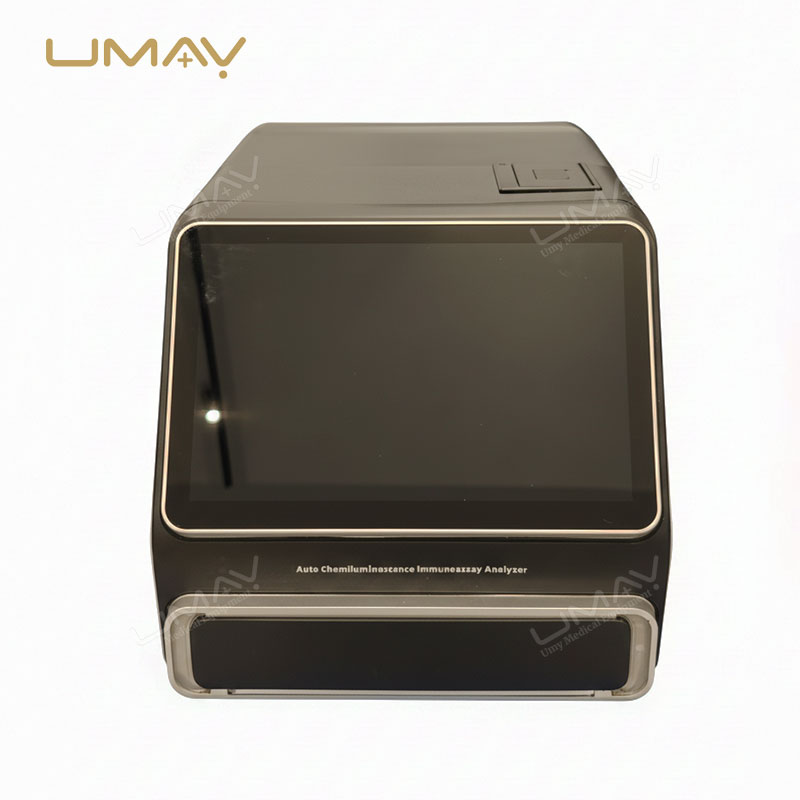

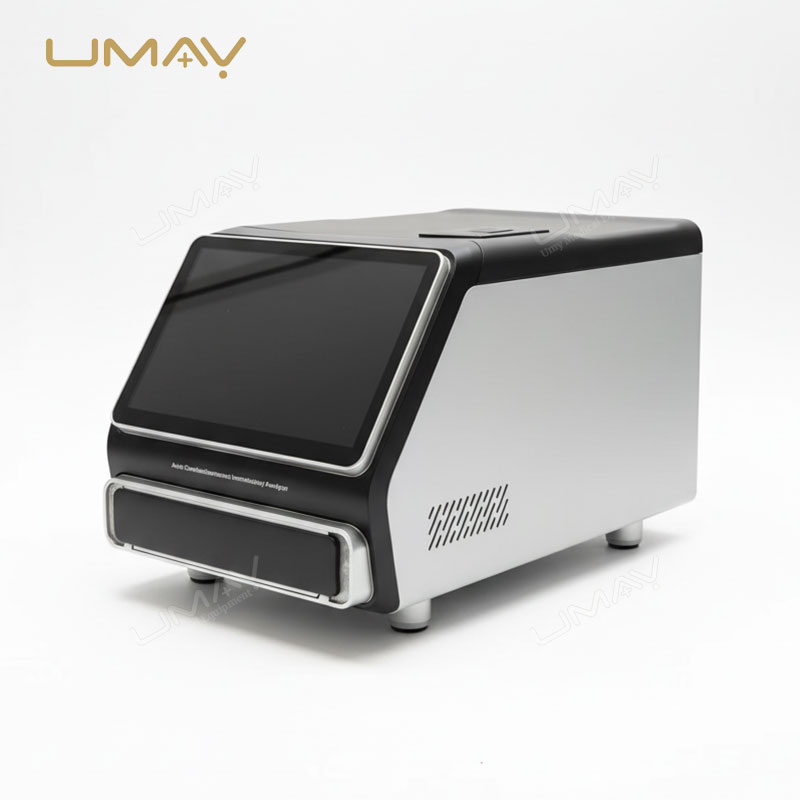

Automatic Chemiluminescence Analyzer with Fast Results and High Accuracy for Clinical Use
Quick Info.
- SKU NO.: UMY-IA-001
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 2100 Sets/Year
Power Source: Electric
Warranty: 1 year
After-sale Service: Online service and delivering spare parts
Transport Package: Carton or Wooden Cases
Material: Metal, Plastic
Instrument Classification: Class Ⅱ
Quality System Standard: ISO13485
The Automatic Chemiluminescence Analyzer with CE certificate offers rapid and reliable results for a variety of clinical tests. With a throughput of 120 tests per hour and a fast 12-minute time to the first result, this analyzer is designed for high-efficiency testing in busy clinical environments. It features a 10.1-inch color touch screen for user-friendly operation and supports a range of specimen types, including whole blood, serum, plasma, and urine. This device requires no extra consumables and eliminates the need for fluid pipelines, ensuring minimal maintenance. Ideal for use in hospitals, clinics, and emergency care units, this analyzer delivers high accuracy and is equipped with integrated data printing for seamless documentation.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Technical Specifications | |
| Principle | Enzymatic Chemiluminescent Immunoassay |
| Channels | 8 channels |
| Throughput | 120 tests/hour |
| Time for First Result | 12 minutes |
| Weight | 16.5 kg |
| Dimension | 260mm × 417mm × 256mm (W × D × H) |
| Display | 10.1-inch color touch screen |
| Precision | CV ≤ 5.0% |
| Sampling Mode | Manual sampling |
| Specimen Type | Whole blood, serum, plasma, capillary blood, urine |
| Data & Report Printing | Support LIS/HIS, with integrated printer |
| Feature | No fluid pipelines, no extra consumables, minimum failure rate |
| Features | |
| Faster | 12 minutes for the first result, Up to 120 tests/hour |
| Accurate | Between batch CV ≤ 5% |
| Enzymatic Chemiluminescent Immunoassay | |
| Economic | Higher efficiency with triple test cartridge, Single test cartridge reagent, ready-to-use, no extra consumables |
| User-friendly | 10.1-inch touch screen |
| Lyophilized micro-bead, allows reagent normal temperature transportation | |
| Supports whole blood/serum/plasma/capillary blood/urine samples | |
| Compact design, ideal for clinics, ICU, primary care | |
| Application Scenarios | ICU, Emergency, Hospitals, Clinics, Primary Care, Pediatrics |
Feature list for UMY-IA-001:
* 120 tests per hour with 12-minute time to the first result
* 10.1-inch color touch screen for easy operation
* Enzymatic Chemiluminescent Immunoassay for accurate results
* Supports whole blood, serum, plasma, capillary blood, and urine samples
* No fluid pipelines required, reducing maintenance needs
* Single test cartridge system with no extra consumables
* Data and report printing with integrated printer
* Compact design suitable for clinical, ICU, and primary care settings
Application:
This analyzer is designed for use in ICU, emergency departments, hospitals, clinics, and primary care facilities. It provides fast and reliable results for a variety of diagnostic tests, streamlining workflow and improving efficiency in high-demand healthcare environments.
