All-in-One Portable Human Diagnostic X-Ray Machine | Integrated Touchscreen APR Workstation, Full-Body High-Frequency DR Generator, Wireless Flat Panel Detector Sync, & Lithium Battery for ICU Bedside, Mobile Clinic, & Emergency Triage
Quick Info.
- SKU NO.: UMXRAY028
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Aluminum and magnesium alloys
- After-Sale Service: Online Technical Support
- Production Capacity: 500 Sets/Year
Revolutionizing bedside radiography and point-of-care emergency imaging, this all-in-one portable medical human X-ray machine integrates an intuitive color touchscreen workstation directly into the generator chassis. Designed to replace disjointed multi-component portable setups, it features built-in Anatomical Programmed Radiography (APR) for full-body skeletal examinations, high-frequency penetration for chest and pelvic diagnostics, and instant wireless flat panel detector synchronization. Engineered in an ultra-compact enclosure with hybrid battery/AC power, this portable DR solution provides hospital ICUs, trauma centers, mobile health vans, and field rescue teams with self-contained diagnostic capability wherever care is needed.
The Specific Parameters
-

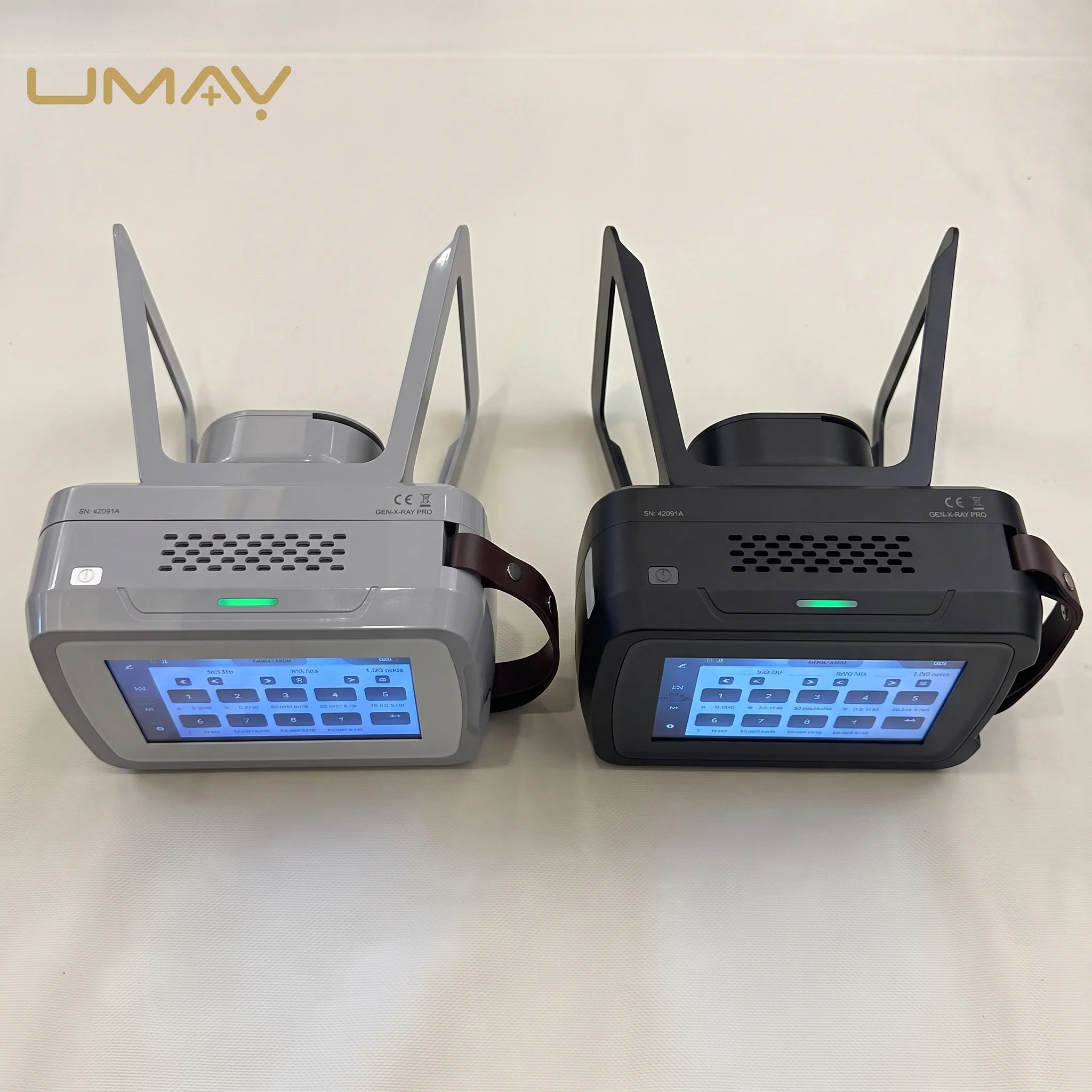

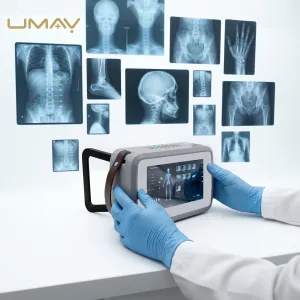

Streamlined Bedside Workflow Without External Computers: By eliminating the need to set up external PC stations at the patient’s bedside, clinicians can position the unit, select pre-programmed APR protocols for skull, chest, or spine examinations directly on the high-definition touchscreen, and verify acquired image quality on the spot.
-
Diagnostic Power for Comprehensive Torso & Limb Examinations: Unlike low-power extremity-only scanners, this high-frequency monoblock generator produces the penetrating power necessary to deliver clear radiographs of deep anatomical structures—including adult chests, lumbar vertebrae, and pelvic rings—with low patient radiation absorption.
-

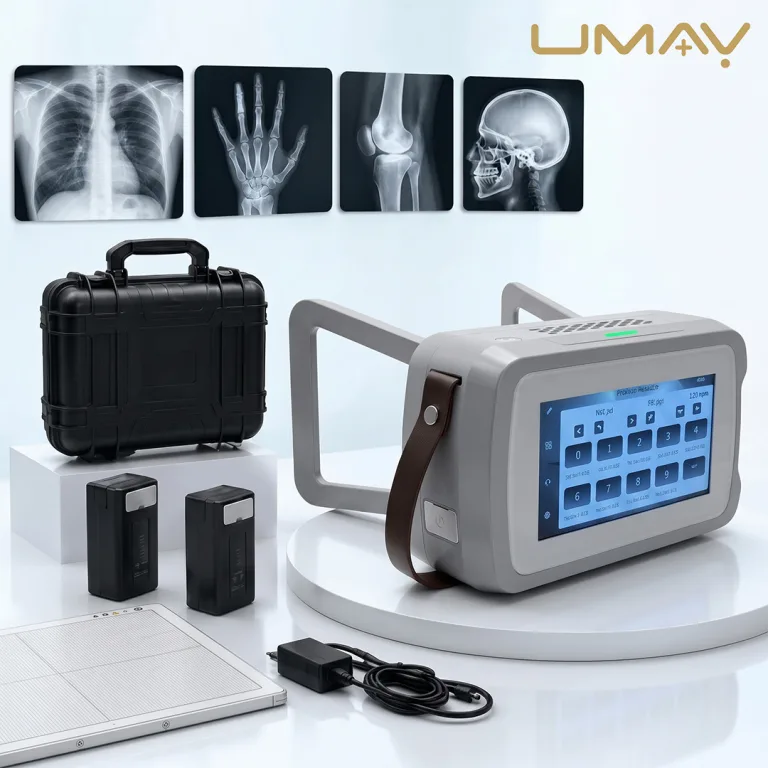

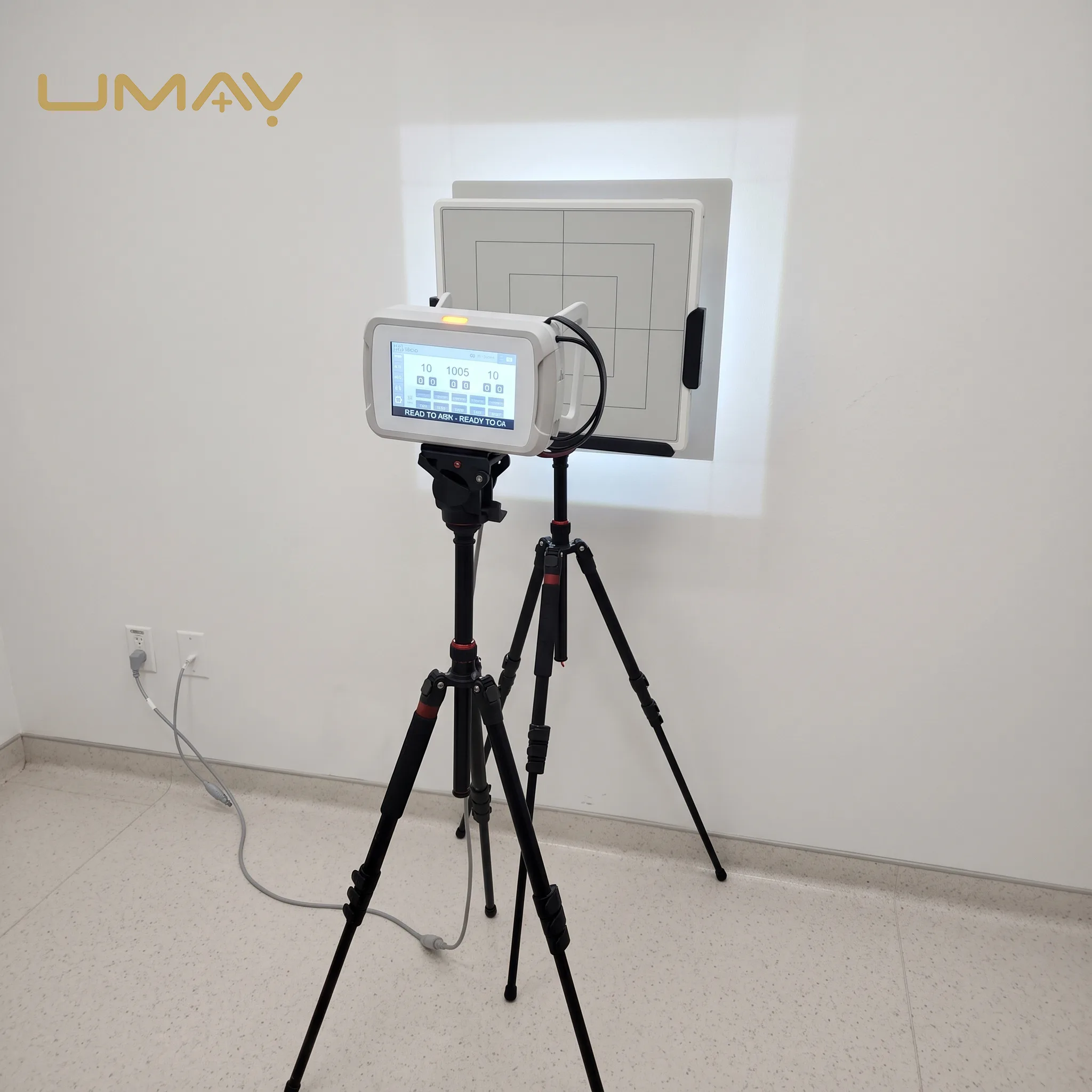

Field-Ready Mobility & Multi-Scenario Mounting: Designed for fast deployment, the chassis features an ergonomic dual-handle balance system for stable handheld positioning, while also docking smoothly into lightweight mobile rolling stands or field-tripod assemblies for high-throughput screening environments.

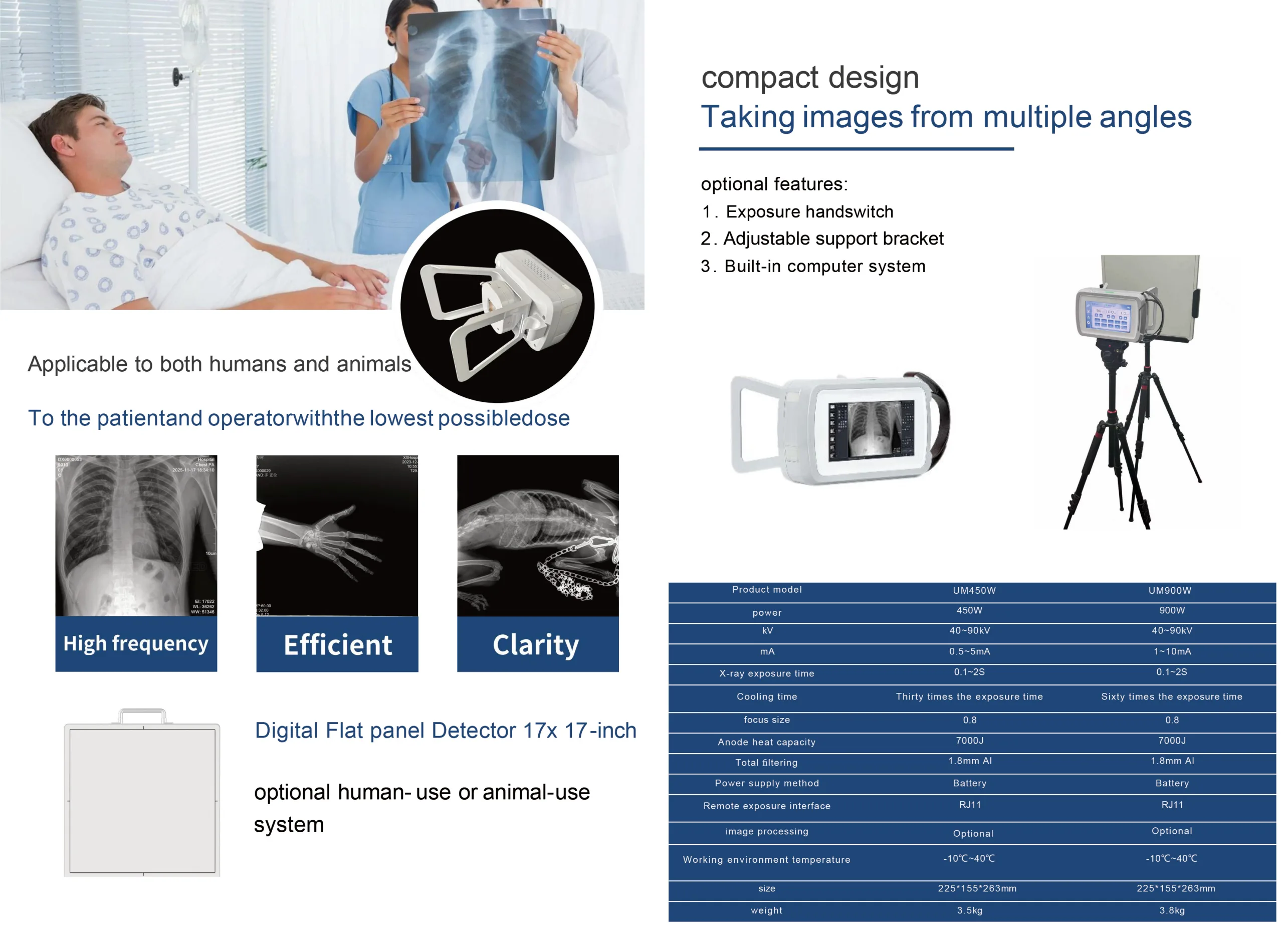

(Technical Specifications)
| Technical Parameter Component | Standard System Configuration Attribute |
| System Device Classification |
All-in-One Portable Human Diagnostic DR X-Ray System |
| Integrated Workstation Interface |
HD Color Touchscreen Panel with Interactive Human APR GUI |
| Anatomical Imaging Scope |
Full-Body: Skull, Spine, Chest, Abdomen, Pelvis, & Extremities |
| X-Ray Generator Technology | High-Frequency Inverter Monoblock (40 – 90 kV) |
| Detector Interoperability | Wireless Sync with Amorphous Silicon (a-Si) & Flexible DR FPDs |
| Radiation Protection Design | Multi-Layer Internal Lead Encapsulation with Low Scatter Cone |
| Power Architecture | Rechargeable High-Density Lithium Battery & AC Mains Hybrid Mode |
| Network & Software Standards | DICOM 3.0 Worklist, Storage, Print, & Wi-Fi PACS Transmission |
Q1: How does an integrated touchscreen workstation on the generator improve ICU bedside workflow compared to traditional portable X-ray units?
A: Traditional portable X-ray units require transporting and connecting a separate laptop or external console tablet, which clutters tight ICU spaces and increases setup time. With the touchscreen console integrated directly into the generator, the technologist can adjust exposure parameters, select anatomical APR presets, trigger the exposure, and preview the radiograph on a single handheld device right at the bedside.
Q2: Can this portable X-ray machine produce sufficient penetration for adult chest and pelvic examinations?
A: Yes. Unlike low-power dental or limb-restricted units, this high-frequency medical X-ray generator provides broad kV and mAs regulation specifically calibrated to penetrate dense anatomical structures, such as adult chest cavities, lumbar spines, and pelvic regions, yielding crisp radiographic detail for hospital triage.
Q3: How does the system pair with wireless digital flat panel detectors (DR panels)?
A: The system utilizes built-in wireless communication and automatic exposure detection (AED) compatibility. When the exposure button is triggered, the generator coordinates wirelessly with the flat panel detector, instantly displaying the captured image on the integrated display screen for immediate diagnostic review and automatic DICOM 3.0 upload to PACS.
Q4: What OEM branding, software language options, and international compliance documentation are available?

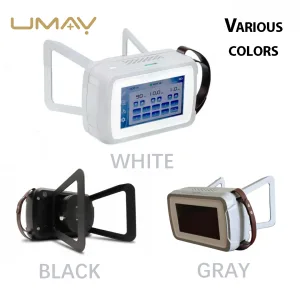

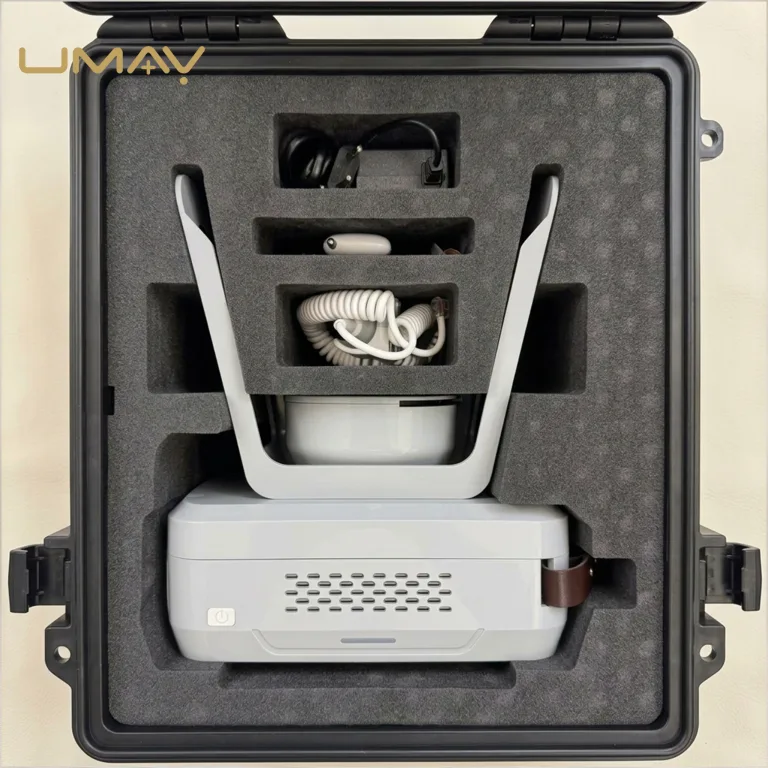

A: We offer complete OEM/ODM production services for global medical distributors. This includes customized exterior color schemes, private-label branding, customized APR software interfaces in over 10 languages, custom-molded transport cases, and full regulatory documentation (CE MDR, ISO 13485, and radiation safety test certificates) for international customs clearance and registration.
