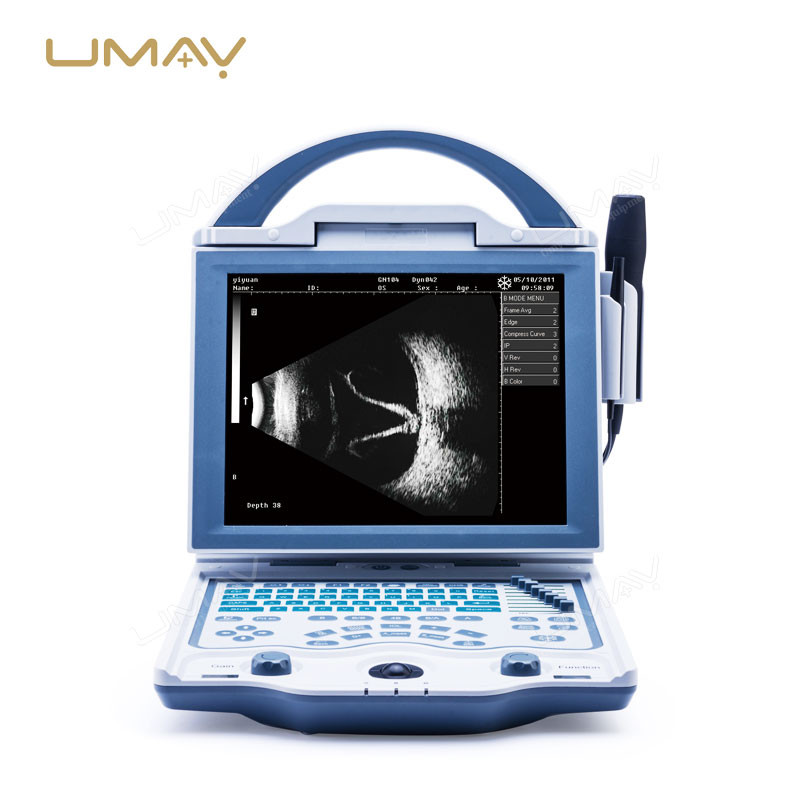

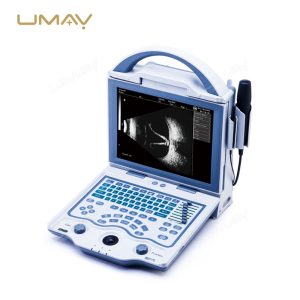

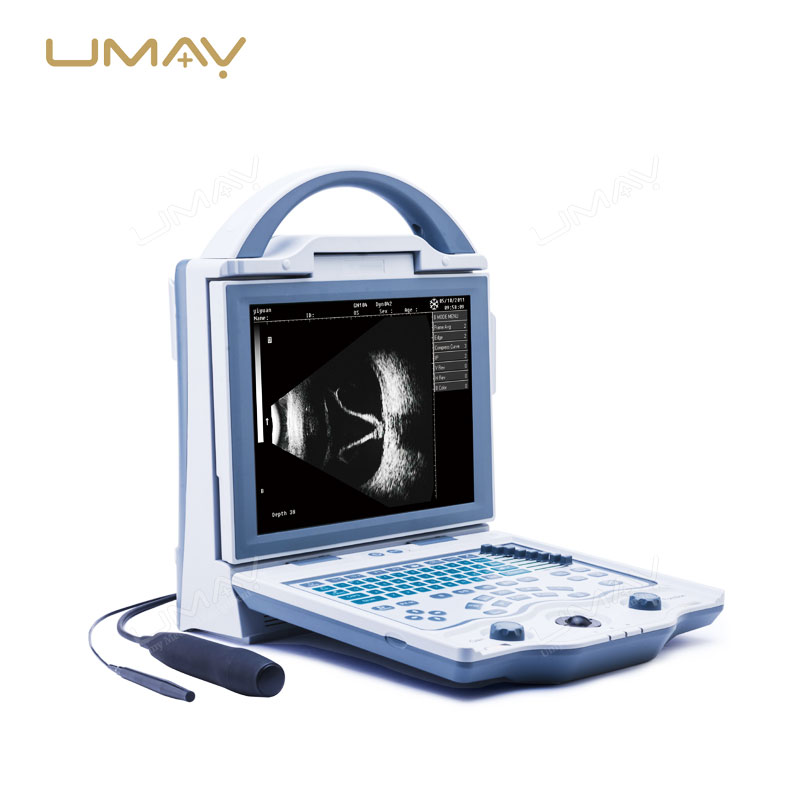

Popular Model High-Frequency Ophthalmic Ultrasound A/B Scan
SKU: UMY-US-069
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-US-069
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 3000 Sets/Year
This high-frequency ophthalmic ultrasound A/B scan is a certain model for precise eye diagnostics, including assessments for retinal detachment, tumors, and vitreous hemorrhage. The A-scan mode provides accurate axial length measurements essential for cataract surgery planning, while the B-scan mode offers detailed visualization of internal eye structures. Compact and user-friendly, it is suitable for both clinic and surgical settings, supporting comprehensive eye care diagnostics.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Abundant Data Storage | |
| Built-in Storage | 16GB D disk for storing data, images, and reports |
| USB Support | U disk for software upgrade and one-key storage |
| Network Port | DICOM3.0 for easy data transmission |

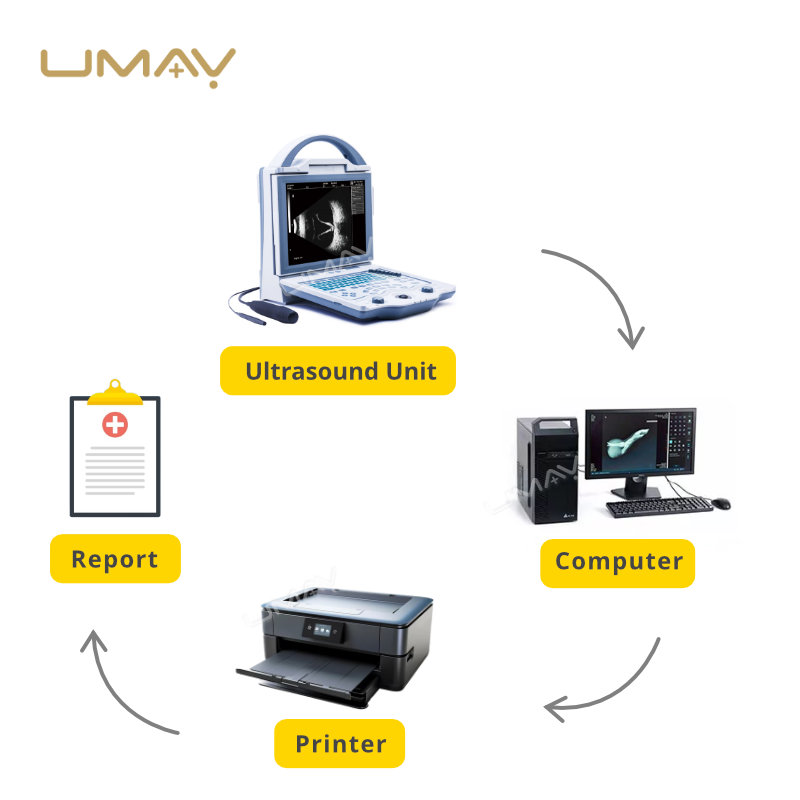

| Practical Workstation | |
| Software Functionality | Simple, practical software for data management and printing |
| Report Types | Report-print, screen copy, IOL report, case reports with images |
| A Scan Parameters | |
| Probe Frequency | 10MHz with Fixation Red Light |
| Resolution | 0.01mm |
| Accuracy | ±0.1mm |
| Measuring Range | 15~40mm |
| Measuring Parameters | ACD, Lens, Vitreous body, AL |
| Measuring Method | Contact and Immersion |
| Measurement Modes | Normal, Cataract, Aphakic, Special eye model |
| IOL Formulas | SRK-T, SRK-II, BINKHORST, HOLLADAY, HOFFER-Q, HAIGIS |
| Data Storage | Up to 100 group results |
| B Scan Parameters | |
| Probe Frequency | 10MHz |
| Frame Rate | 10 frames/sec |
| Scanning Angle | 53° |
| Gain | 0~120dB adjustable, 8 steps TGC |
| Measurement Functions | Distance, circumference, area, volume, angle |
| Pseudo-color | 8 kinds |
| Cineloop | 128 frames, measurement available |
| Post Processing | 8 groups of curves |
| Standard Configuration | |
| Main Unit | Included |
| 10MHz Mechanical Sector B Probe | Included |
| 10MHz A Probe | Included |
| Foot Switch | Included |
| Network Cable | Included |
| Workstation Software | Included |
| Optional Configuration | |
| Battery | Optional |
| Video Recorder | Optional |
| Immersion Shell | Optional |
| Accessories | |
| A-scan Probe | 10MHz |
| B-scan Probe | 10MHz |
| Foot Switch | Standard round pedal type |
