Handheld Portable 490W X-Ray Machine | High-Frequency Battery Powered Diagnostic X-Ray Unit with Color Touchscreen, 70kV Tube Voltage, & Radiation Safety Shielding for Limbs, Torso, Orthopedic Trauma, & Mobile Medical Clinics
Quick Info.
- SKU NO.: UMXRAY025
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 1000 Sets/Year

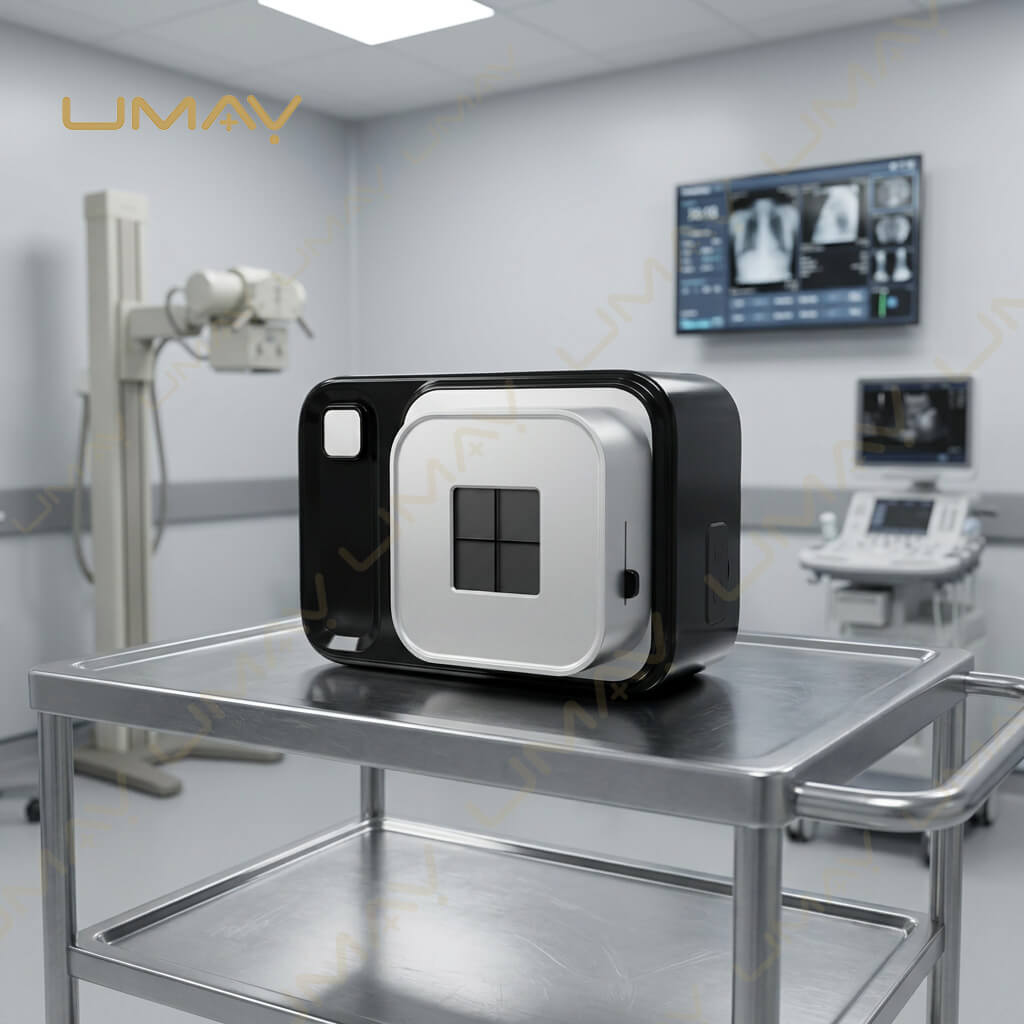

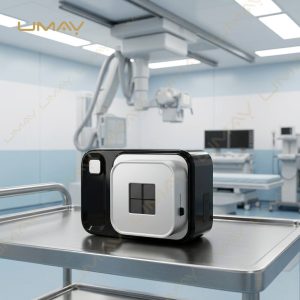

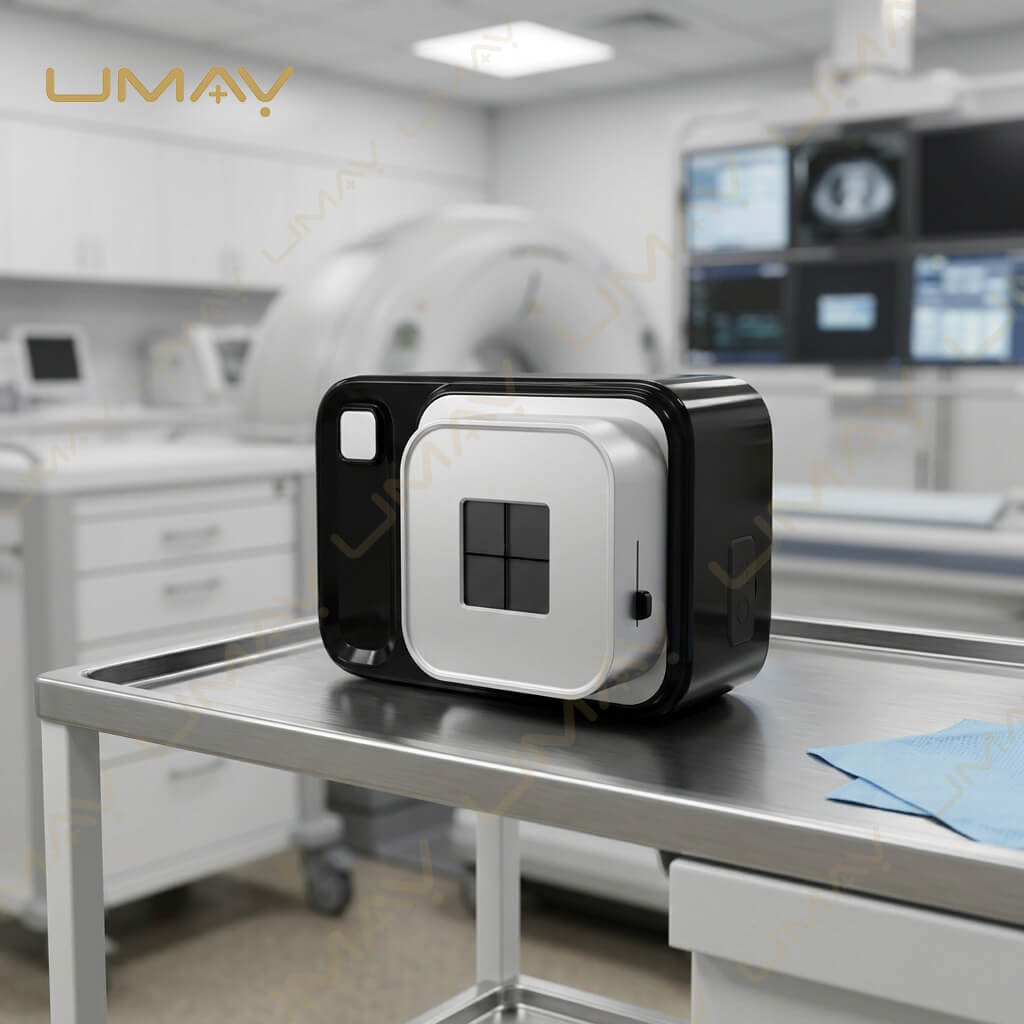

ngineered for rapid point-of-care medical diagnostic radiography, this handheld portable X-ray machine delivers high-resolution extremity and torso imaging in a lightweight, battery-powered form factor. Featuring an integrated high-frequency X-ray generator (40 – 70 kV, 5 mA), intuitive color touchscreen GUI with preset exposure protocols, advanced internal lead radiation shielding, long-life lithium battery power, and seamless compatibility with wireless digital radiography (DR) flat panel detectors, this mobile X-ray unit is ideal for emergency trauma care, orthopedic clinics, sports medicine, field rescue, and home healthcare services.
The Specific Parameters
Core Systems Engineering Advantages for Medical Sourcing Networks:
-
Precise Extremity & Torso Bone Detail: Capture clear fracture details, joint dislocations, and anatomical structures using optimized 70 kV tube voltage and fine focal spot geometry.
-
Ergonomic Lightweight Gun-Style Design: Balanced weight distribution and dual handgrips allow effortless positioning during patient examinations in bed, wheelchairs, or field litters.
-
Field-Ready Durability & Rapid Deployment: Compact housing withstands daily clinical transport, enabling emergency responders to set up and take exposures within seconds of arrival.

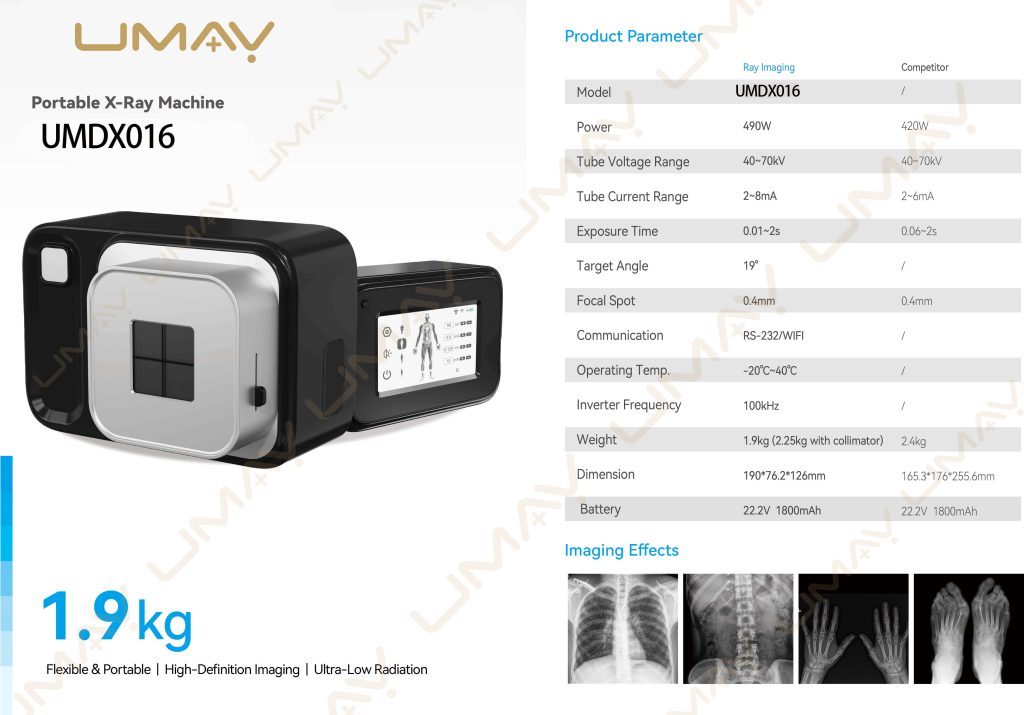

📊 Comprehensive Technical Specifications:
| Technical Parameter Component | Standard System Configuration Attribute |
| System Device Classification | Handheld Portable Diagnostic X-Ray Unit |
| Anatomical Target Applications | Human Limbs, Extremities, Joints, & Torso Imaging |
| Tube Voltage & Tube Current | 50 kV – 70 kV (Adjustable); 5 mA High Frequency |
| Exposure Time Adjustment | 0.01 – 2.50 Seconds Range via Touchscreen |
| Power Supply & Battery Type | High-Capacity Rechargeable Lithium-Ion Battery Pack |
| Radiation Safety Protection | Multi-Layer Internal Lead Shielding + Scatter Protection Cone |
❓ Crucial B2B Component Sourcing Q&A
Q1: What body parts can be imaged using this handheld portable X-ray machine?
A: This handheld X-ray unit is designed for point-of-care imaging of limbs and extremities (hands, wrists, forearms, elbows, feet, ankles, knees), as well as pediatric torso and preliminary emergency trauma evaluations in field or bed-bound clinical settings.
Q2: How does the machine protect the operator from scatter radiation exposure?
A: The machine is constructed with high-density internal lead shielding around the X-ray tube assembly and features an outer scatter shielding cone. When operated following standard distance and protective apron guidelines, scatter radiation leakage remains well within international safety limits (≤ 0.02 mGy/h).
Q3: Can this handheld X-ray unit be connected to existing hospital PACS and wireless DR detectors?

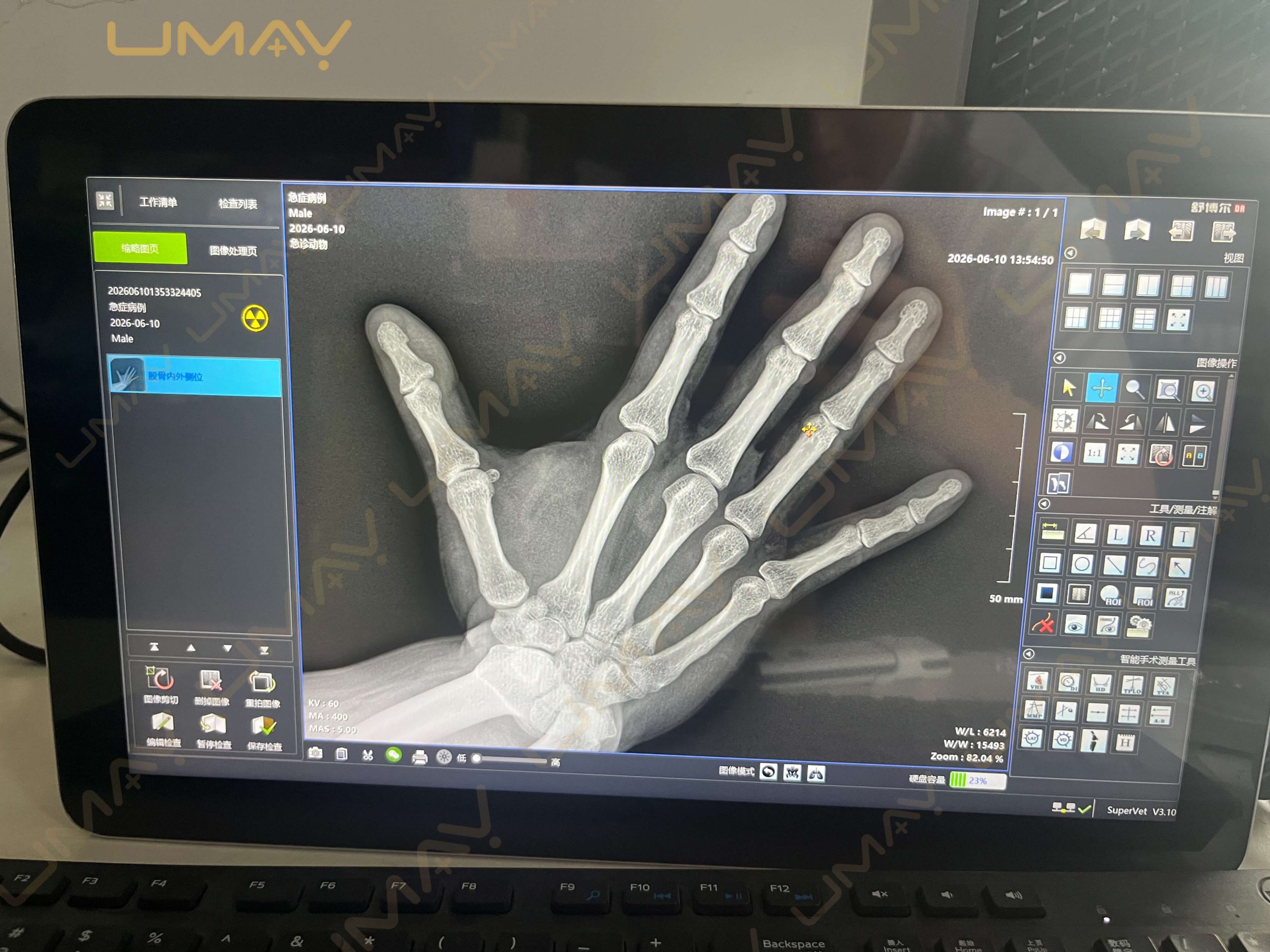

A: Yes. The unit synchronizes seamlessly with wireless DR flat panel detectors via standard wireless trigger signals, allowing instant transfer of DICOM images to laptops, tablets, or hospital PACS networks for immediate radiological assessment.
Q4: What OEM white-label branding, interface localization, and export certifications are provided?
A: We offer full OEM/ODM manufacturing services, including private-label chassis branding, localized user interface software languages, custom accessory cases, and complete regulatory export documentation (CE, ISO 13485) required for customs clearance and international health authority registration.
